Rule Shower Sump Drain Pump Kit 24V 800 GPH with Filter and Float Switch RWB831 RWB831
$360.38 each
Brand: Rule Bilge Pumps, Float Switches & Parts
The add to cart button will appear once you select the values above

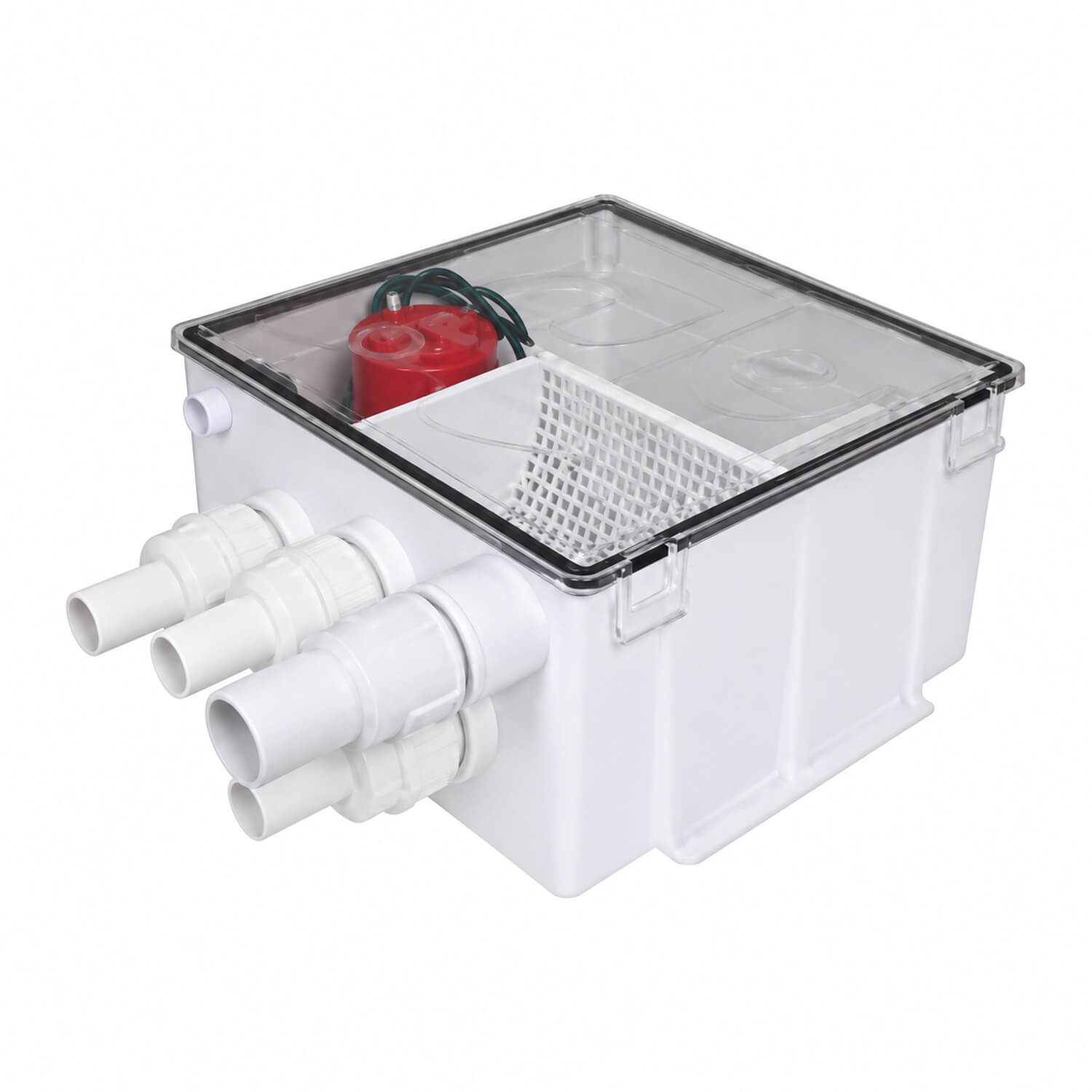

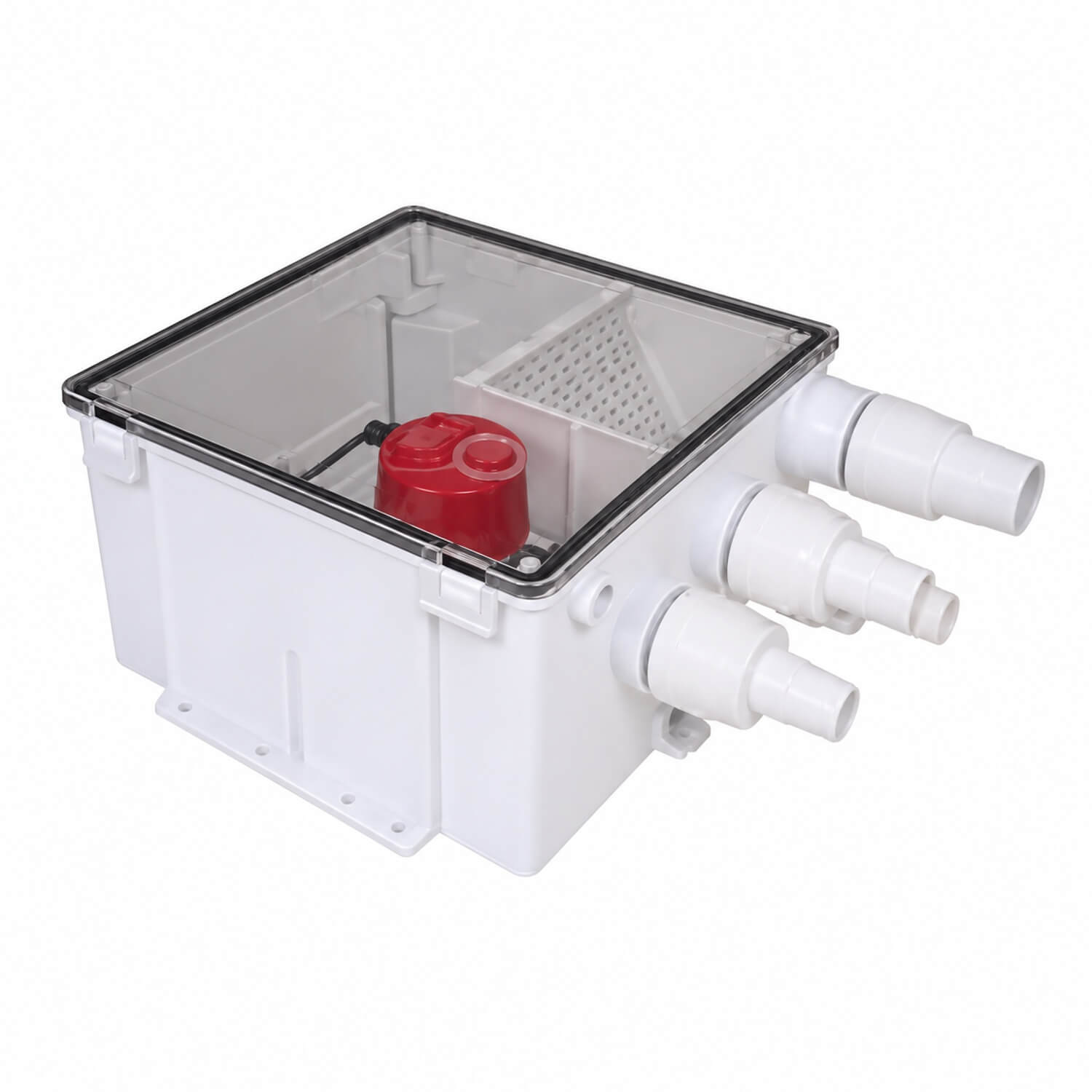

Rule Automatic Shower Sump Kit — 24V, 800 GPH
This enclosed drain-pump assembly removes collected shower water on a 24V installation.
About this product
Water enters the sump through the fitted inlet plumbing and is pumped out under float-switch control. The check valve limits return flow, while the removable filter and accessible pump components support routine cleaning. Leave the lid and service area unobstructed after installation.
Product details
- Removable filter; sealed polycarbonate snap-on lid
- Rule-A-Matic float switch; snap-out pump components; threaded ports; one-way check valve
- Box: 130mm high × 240mm wide × 230mm long, plus 75mm length for inlet ports and screw-on fittings
- Three screw-on inlet positions, two supplied blanked off; one fixed 38mm hose port
- Screw-on inlet fittings supplied: 2 × 20mm, 1 × 25mm and 1 × 28mm
- Flow: 800 GPH (50 LPM)
- Outlet: one 20mm / 3/4 inch screw-on discharge port
- Supply: 24V; current 1.5A at 24V and 1.8A at 27V
- Product code: RWB831
