Jabsco Pressure Switch Kit for Marine Water Pump Repairs and Servicing J25-192 J25-192
$124.93 each
Brand: Jabsco Marine Pumps, Toilets & Spare Parts
The add to cart button will appear once you select the values above

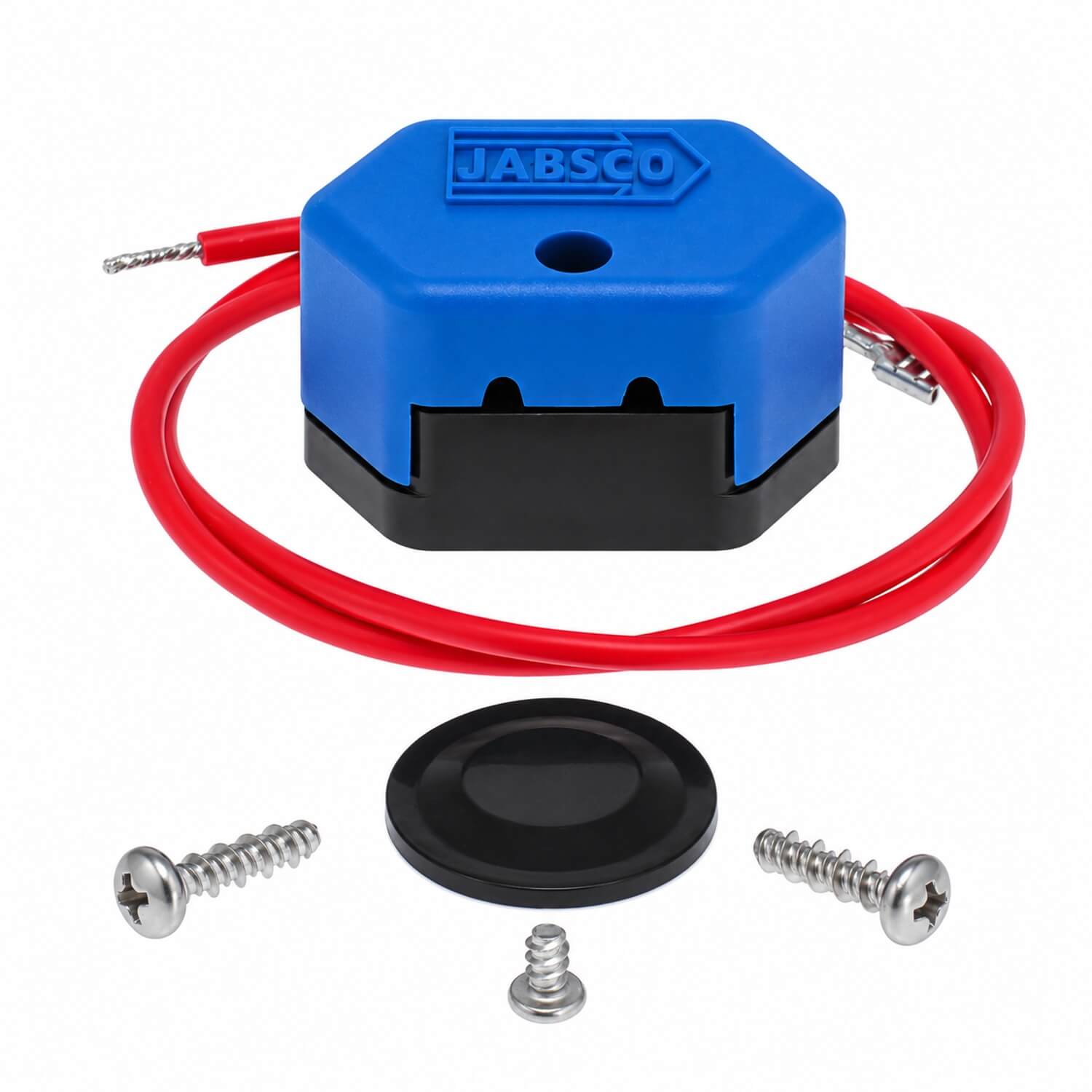

Jabsco Pressure Switch Kit
J25-192 renews the pressure-switch assembly on the listed Jabsco pumps, including the specified blue variants.
About this product
The kit is fitted where the pump senses system pressure and controls its operation. Disconnect the circuit and discharge trapped water pressure before servicing that control section.
Product details
- Component: pressure-switch kit; diagram reference 5
- Compatibility: 32605-XXXX (J20-138/139); 32900-XXXX (J20-162)
- Blue-switch applications: 82500-00XX (J20-180/181); 82600-00XX (J20-184/185)
- Product code: J25-192
