Jabsco Oil Change System Kit 24V oil change for Marine Service J40-166 J40-166
$1,656.06 each
Brand: Jabsco Marine Pumps, Toilets & Spare Parts
The add to cart button will appear once you select the values above
Jabsco Permanent Oil-Change System — 24V
A permanently connected manifold brings engine and transmission oil servicing together in one onboard unit.
About this product
Install the system in the engine room with lines to the relevant sump connections. Work on the required reservoir through its valve, keeping used oil contained and the refill quantity measured; return all valves to their closed positions after servicing.
Product details

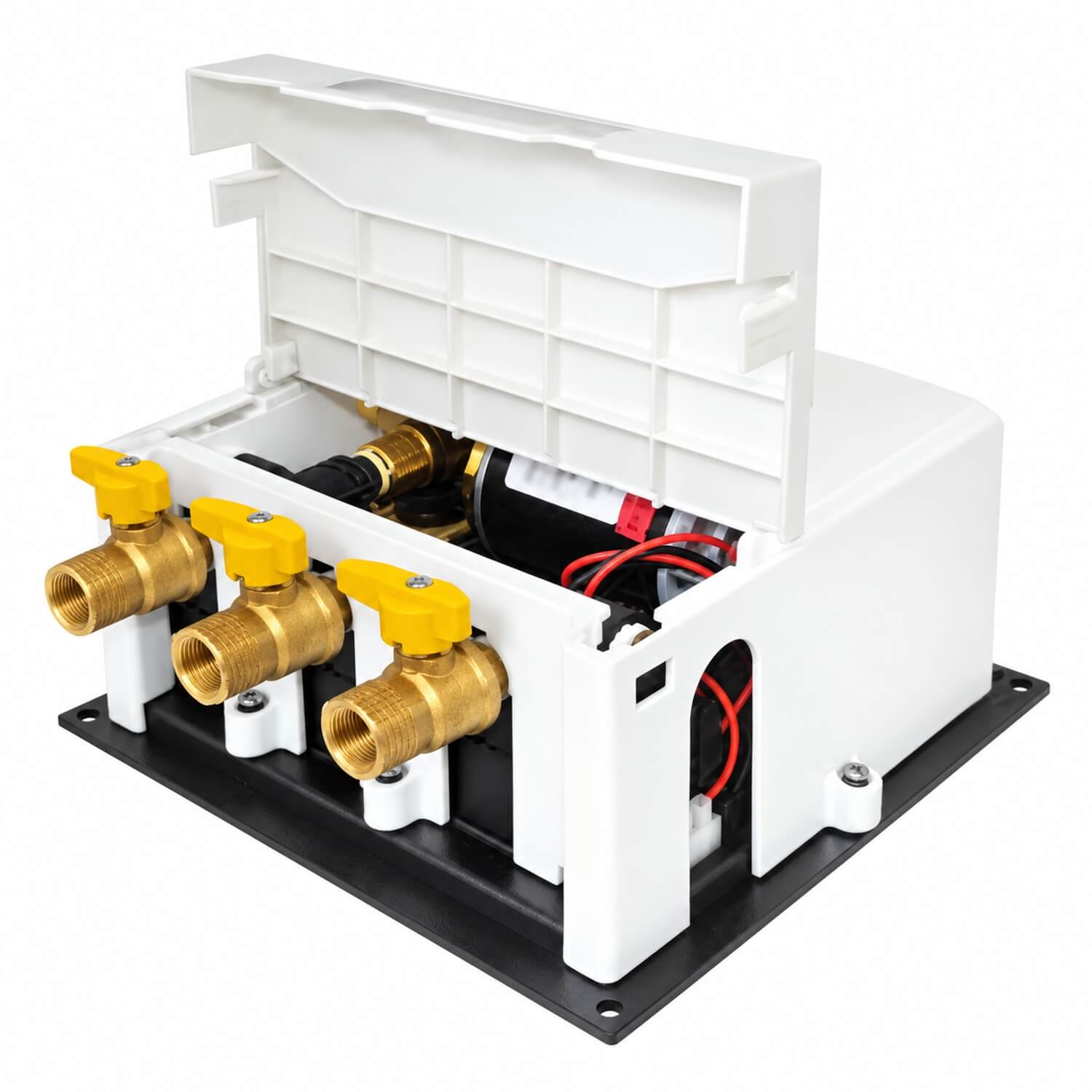

- Self-contained, permanently mounted oil-change system
- Self-priming flexible-impeller pump on mounting base with cover
- Five-port manifold with three 12mm full-flow ball valves factory fitted
- Provision for two additional ball valves, enabling connection to up to five oil reservoirs
- Integral reversing switch for removing used oil and delivering a measured refill
- Hinged cover allows service access; valve cover cannot close unless all valves are shut
- Overall dimensions: 276mm long × 260mm wide × 159mm high
- Electrical supply: 24V
- Jabsco model: 17820-0024
- Product code: J40-166
