Jabsco Dual-Max 7.5 Freshwater Pressure System 24V for Marine Boats J20-129 J20-129
$1,872.96 each
Brand: Jabsco Marine Pumps, Toilets & Spare Parts
The add to cart button will appear once you select the values above

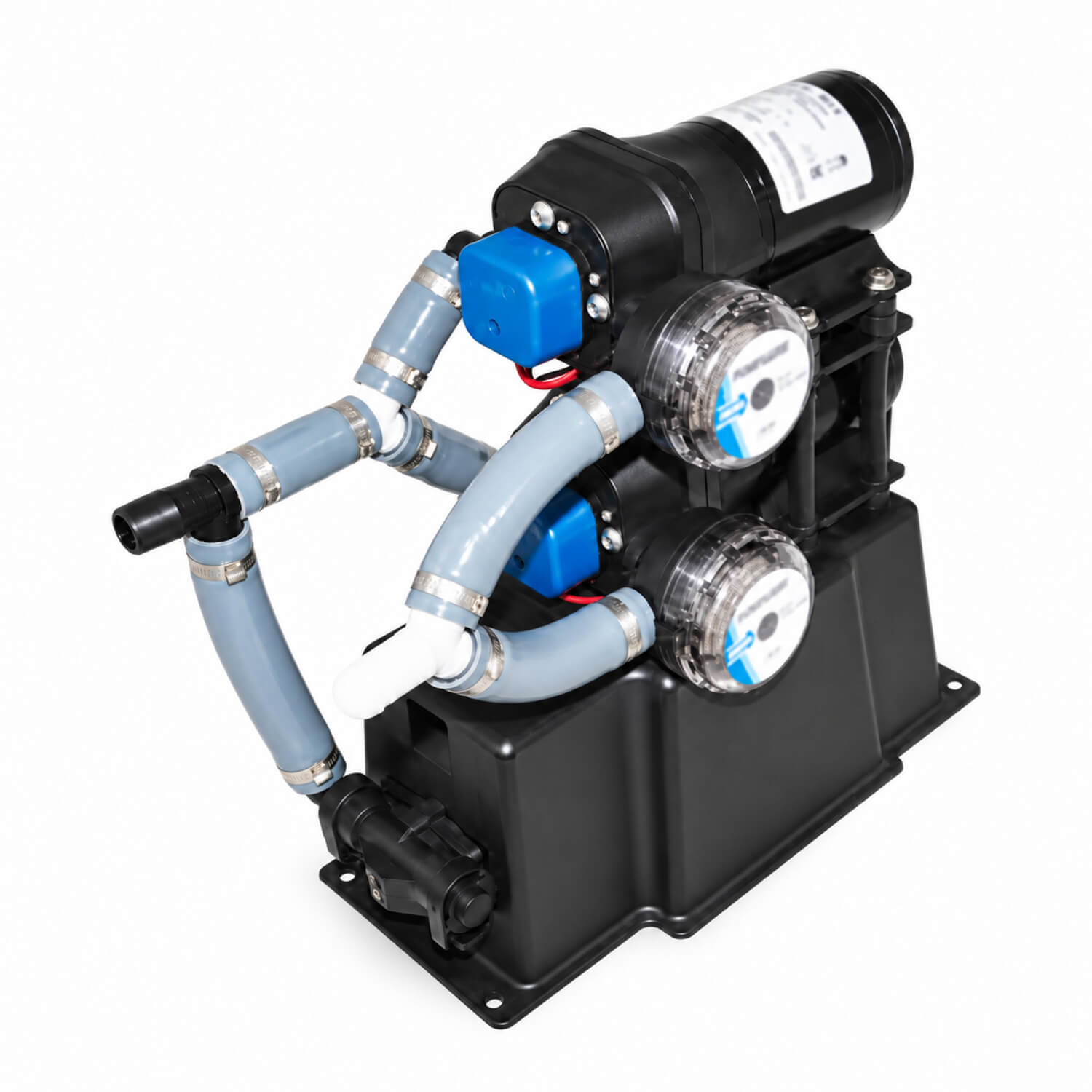

Jabsco Dual-Max 7.5 Freshwater Pressure System 24V
The 24V Dual-Max 7.5 combines two automatic pumps for a vessel with changing freshwater demand.
About this product
One pump runs for lower demand; the second starts when additional flow is needed. An integrated bladder accumulator limits pressure variation, improving delivery at the taps and temperature control in the shower.
Product details
- System: two Par-Max 4 quad-diaphragm automatic pumps on a heavy-duty moulded plastic base
- Operation: pressure-controlled two-stage pumping; primary pump at low demand, secondary pump added at high demand
- Primary-pump flow: up to 14.3 litres per minute
- Combined flow: up to 28.4 litres per minute (7.5 GPM); up to six outlets
- Electrical supply: 24V; maximum-demand current: 7.5A
- Pressure settings: 20 PSI cut-in; 40 PSI cut-out
- Self-priming lift: 1.5m (5ft)
- Included accumulator: bladder tank to smooth flow, reduce cycling and assist hot-water temperature control
- Protection: ignition protected and thermal overload protected
- Includes: filters, hoses, 20mm (3/4-inch) connections and fully fitted plumbing
- Wiring: pre-wired with waterproof fuse holders
- Manufacturer part: Jabsco 31670-0094
- Product code: J20-129
