Jabsco Diesel Transfer Vane Pump 100 LPM, 24V for Marine Service J40-149 J40-149
$1,931.68 each
Brand: Jabsco Marine Pumps, Toilets & Spare Parts
The add to cart button will appear once you select the values above

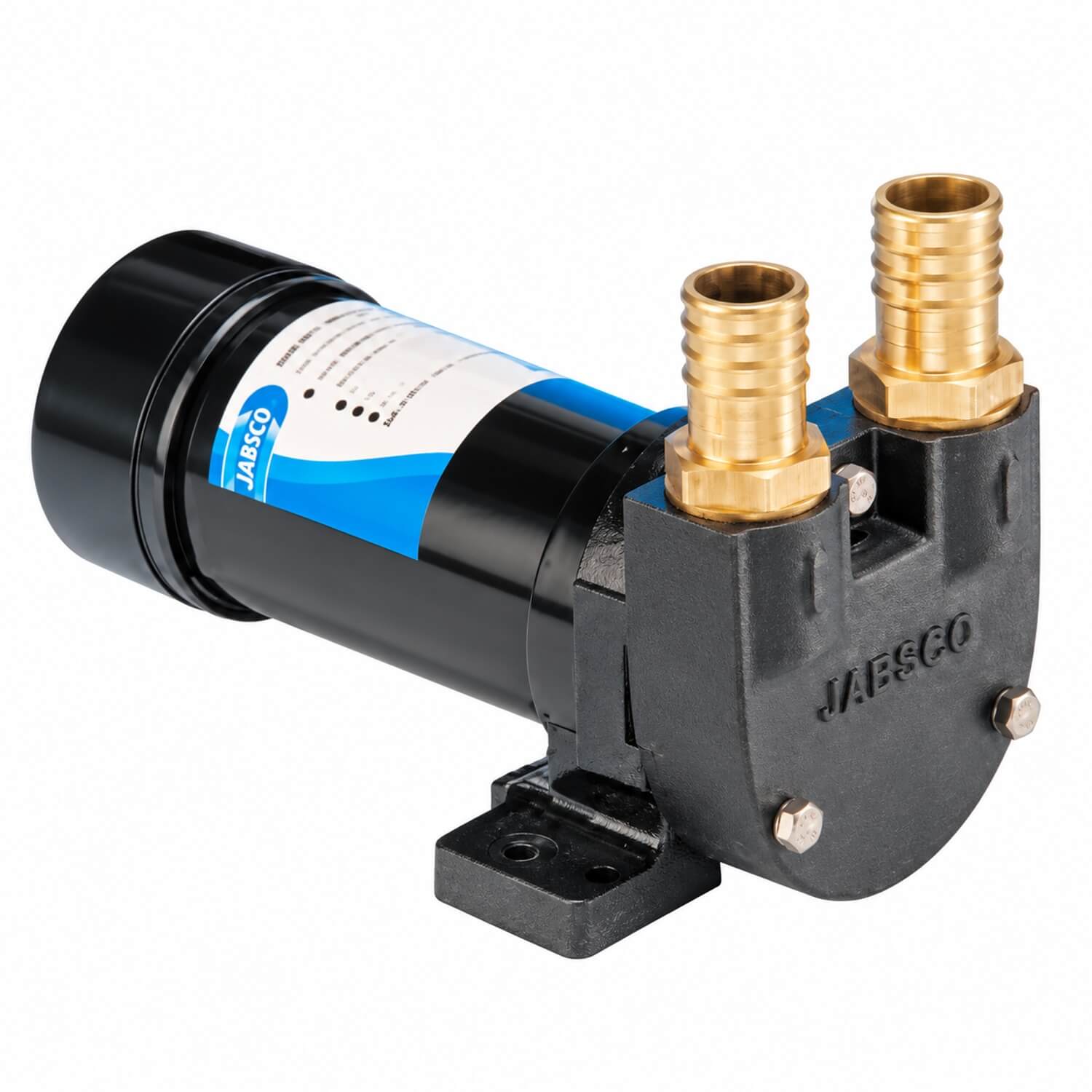

Jabsco VR100 Diesel Transfer Pump — 24V
The VR100 moves diesel during transfer work involving larger storage or equipment tanks.
About this product
Install the pump with the specified external switching and electrical protection, then secure the receiving hose before starting. The rated transfer and duty figures apply at their stated heads; keep the inlet fed and do not run the pump dry.
Product details
- Capacity: 100 LPM at 3 metre head
- Duty rating: 20 minutes at 3.4 metre head
- Tank range: 400–1500 litres
- Self-priming lift: up to 5 metres vertical
- Maximum head: 10 metres
- Ports: 1 inch BSP threaded
- Supply: 24V; no switch supplied
- Jabsco model: VR100-2120
- Bronze hose adaptors sold separately; illustrated adaptors not included
- Separate adaptor reference: RWB1477
- Product code: J40-149
