Jabsco Diaphragm Bilge / Shower Drain Pump 24V 5A drain pump Marine J40-107 J40-107
$540.96 each
Brand: Jabsco Marine Pumps, Toilets & Spare Parts
The add to cart button will appear once you select the values above

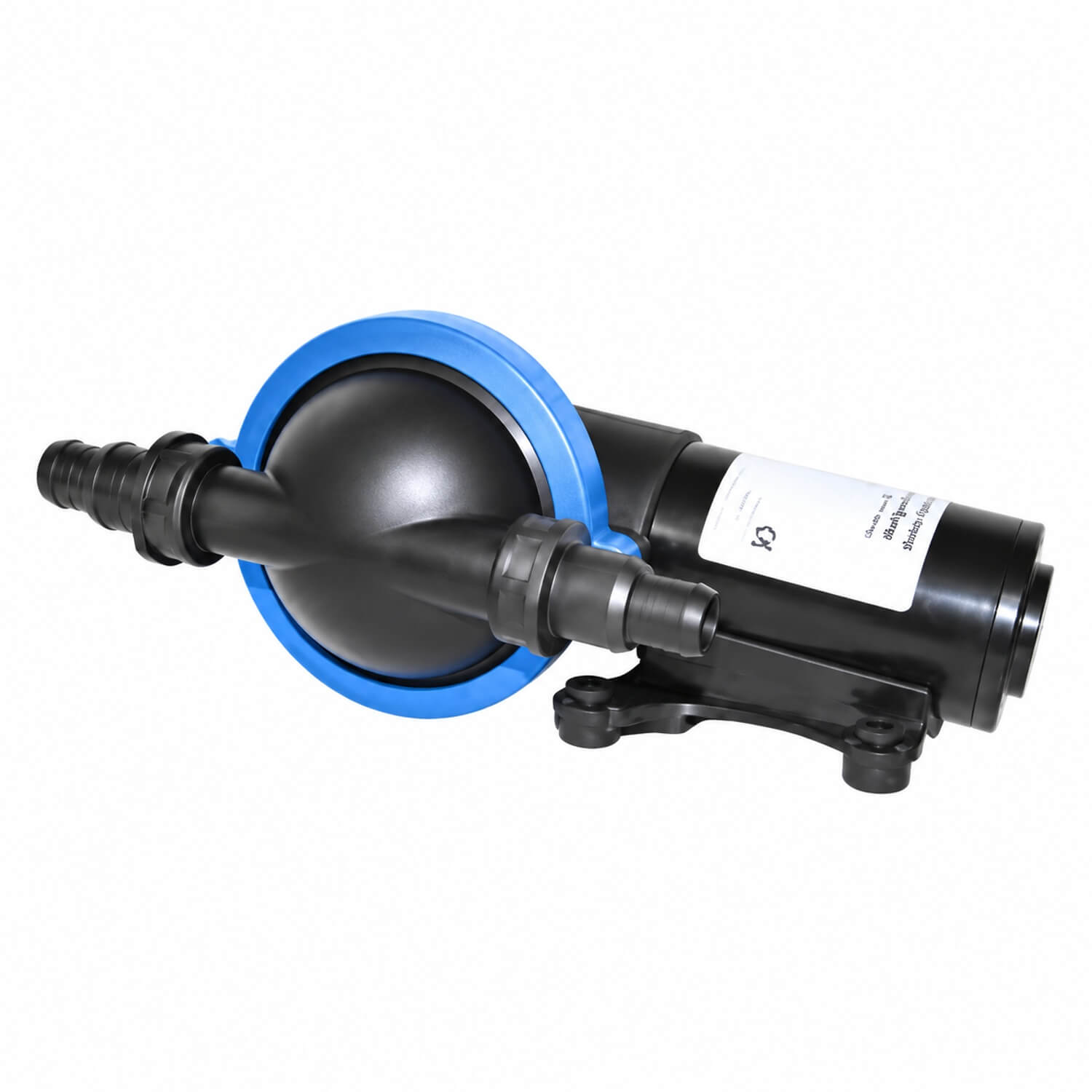

Jabsco Diaphragm Bilge and Shower Drain Pump — 24V
This 24V pump serves shower and sink drainage or a bilge pickup located away from the pump.
About this product
The single-chamber action moves drain water through non-clogging valves. A multi-position head lets the hoses approach from the required direction, making the mechanism accessible even when the surrounding plumbing is confined.
Product details
- Single-chamber diaphragm design; corrosion-resistant components
- Mounting footprint matches the older Jabsco 37202 shower-drain pump
- Head rotates 360° and revolves at the motor joint; ports can be positioned at the required angle
- Delivery: 4.2 GPM / 16 litres per minute
- Self-priming lift: 3 metres
- Extended dry-running capability
- Quiet, ignition-protected motor
- Non-clogging joker valves; no inlet filter required
- Compact, simple service layout; low-maintenance design
- Dual-size inlet and outlet: 20mm (3/4 inch) or 25mm (1 inch) hose
- Dimensions: 254mm long × 156mm wide × 127mm high
- Electrical: 24V, 5A
- Jabsco model: 50880-1100
- Product code: J40-107
