Forsheda No.4 EPDM Mooring Compensator 630mm for 22–24mm Rope with Rope Lock RWB4598
$171.20 each
Brand: Forsheda Boat Mooring Compensators
The add to cart button will appear once you select the values above
Forsheda No.4 EPDM Mooring Compensator 630mm for 22–24mm Rope with Rope Lock

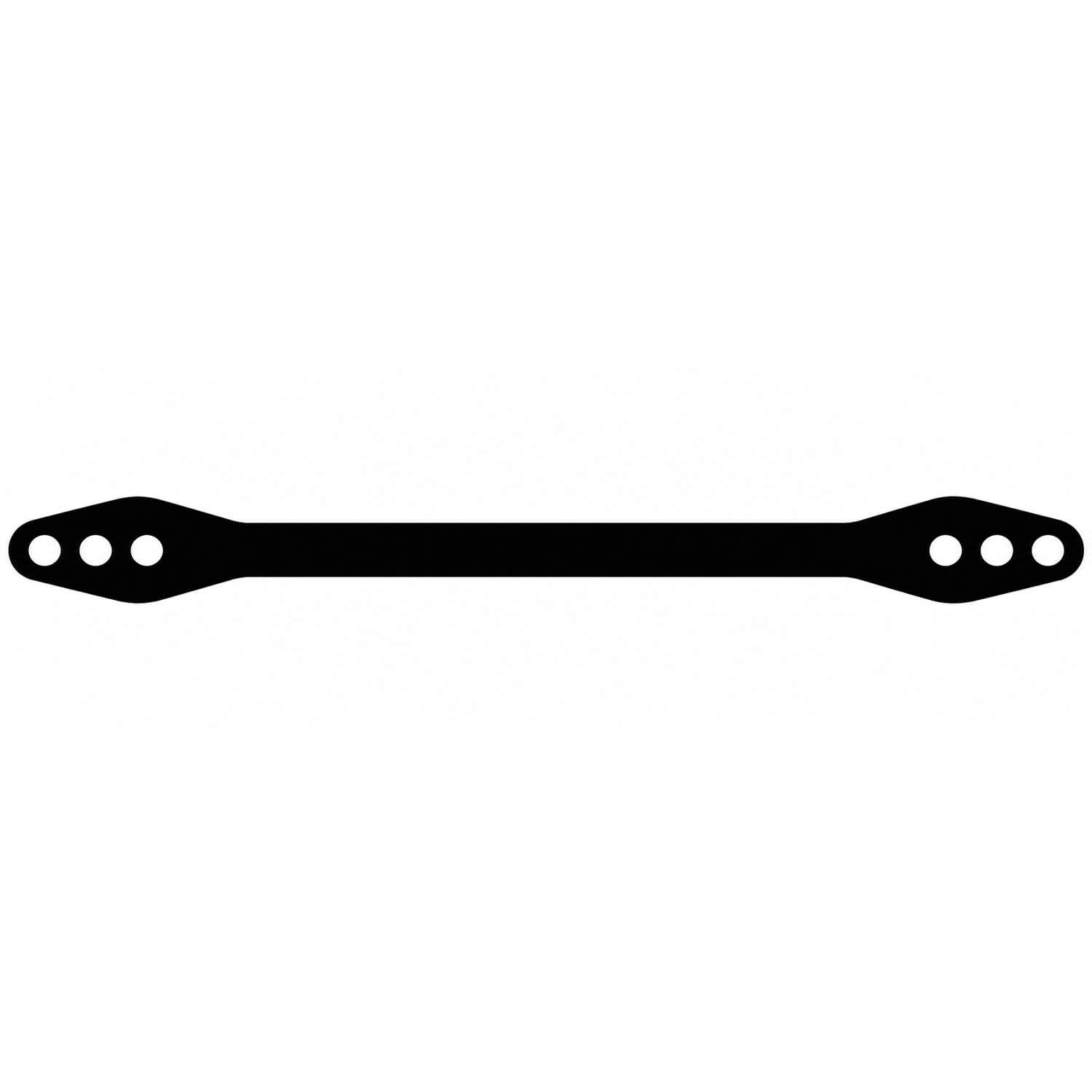

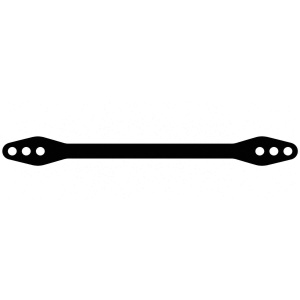

The 630mm Forsheda No.4 adds controlled elastic movement to a mooring or anchor line using 22 - 24mm rope. Made in Sweden from EPDM rubber, it has an integral moulded rope lock and resists UV, weather and temperature extremes. The illustration is a front-profile view.
About this product
Thread and wrap the line through the lock as instructed. One, two or three turns give the size-specific extensions below; exposed moorings require three turns. Allow clearance for that movement and follow the packaging’s rope and boat-tonnage guidance. The quoted maximum force is a compensator figure, not a complete mooring-system working load. One Forsheda No.4 is supplied without rope or mounting hardware.
Product details
- Brand/model: Forsheda No.4
- Made in Sweden; EPDM rubber
- Integral moulded-in rope lock; UV, weather and temperature resistant
- Forsheda size: No.4
- Compensator length: 630mm
- Suitable rope diameter: 22 - 24mm
- extension with 1/2/3 rope turns: 200/335/470mm
- maximum force with 3 turns 5000N (509kp).
- Use 3 rope turns for exposed moorings
- Supplied item: one compensator; rope not included
