Jabsco Amazon Through-Deck 38mm Marine Manual Bilge Pump and Kit - J30-105 J30-105
Jabsco Amazon Through-Deck 38mm Marine Manual Bilge Pump and Kit - J30-105
This Jabsco Amazon hand-operated pump provides a way to remove bilge water without relying on an electric motor or a live battery circuit. It can be considered when planning a manual pumping position or replacing an existing unit. The body arrangement, hose ports and handle access are important selection points, particularly in a confined cockpit or machinery space.

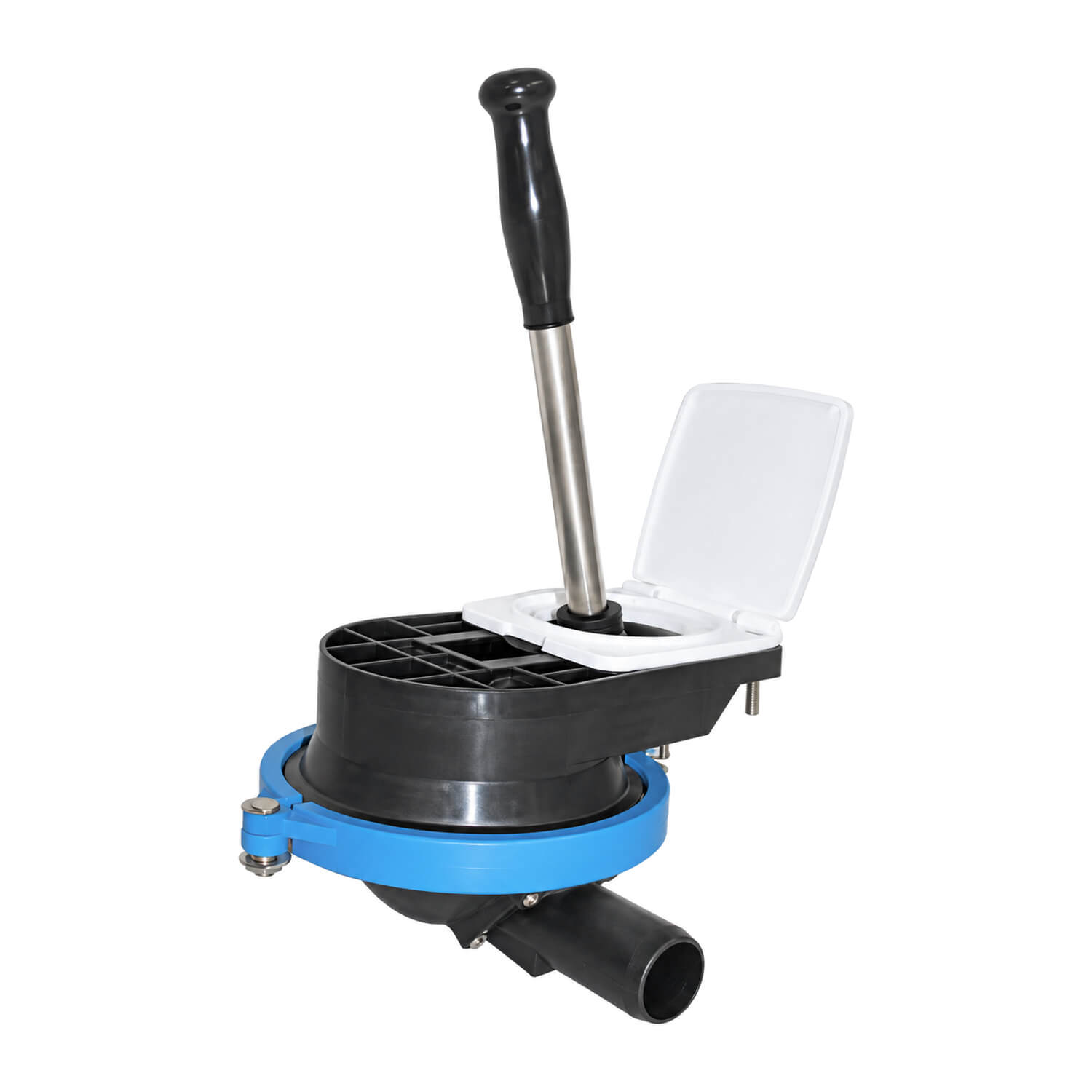

Corrosion-resistant manual bilge pump with nitrile rubber diaphragm and removable stainless steel handle. Low-profile polypropylene body with 16 port variations, single-screw access and good solids handling. Includes through-deck installation kit and white cover.
Choosing and using this product
Choose a mounting location where the operator can reach and move the handle comfortably. Check the space behind the mounting surface, the available hose route and access to service the diaphragm and valves. Through-deck and on-deck arrangements need different fittings, so confirm which installation parts are supplied with this exact model before cutting or drilling any surface.
The stated output is an up-to figure rather than a promise of the flow achieved in every boat. The operator’s pumping rate, suction lift and resistance in the hose system affect delivery. Use the manufacturer’s guidance to select the hose arrangement and strainers, and have any below-waterline connections assessed by a marine professional. Avoid sharp bends or a layout that makes the pump difficult to inspect.
Test the finished installation with water and practise using the handle before it is needed on a trip. Keep the removable handle in a secure, accessible place and include the pump in routine maintenance checks. Inspect hoses, clamps and mounting points for deterioration, and match service parts by the Jabsco model number rather than by appearance alone.
Product details
- Jabsco 29250-0010.
- Hose ports: 38mm (1 1/2 inch).
- Output up to 50 L/min (13 GPM).
- Self-primes to 5m.
- Product code: J30-105.
