Weatherproof Marine Red LED Rocker Switch - 21A, 12/24V, 20 x 35mm Cut-Out RWB1774

$12.50 each
Brand: AAA Marine Inspection Ports & Boat Accessories

+
–
The add to cart button will appear once you select the values above

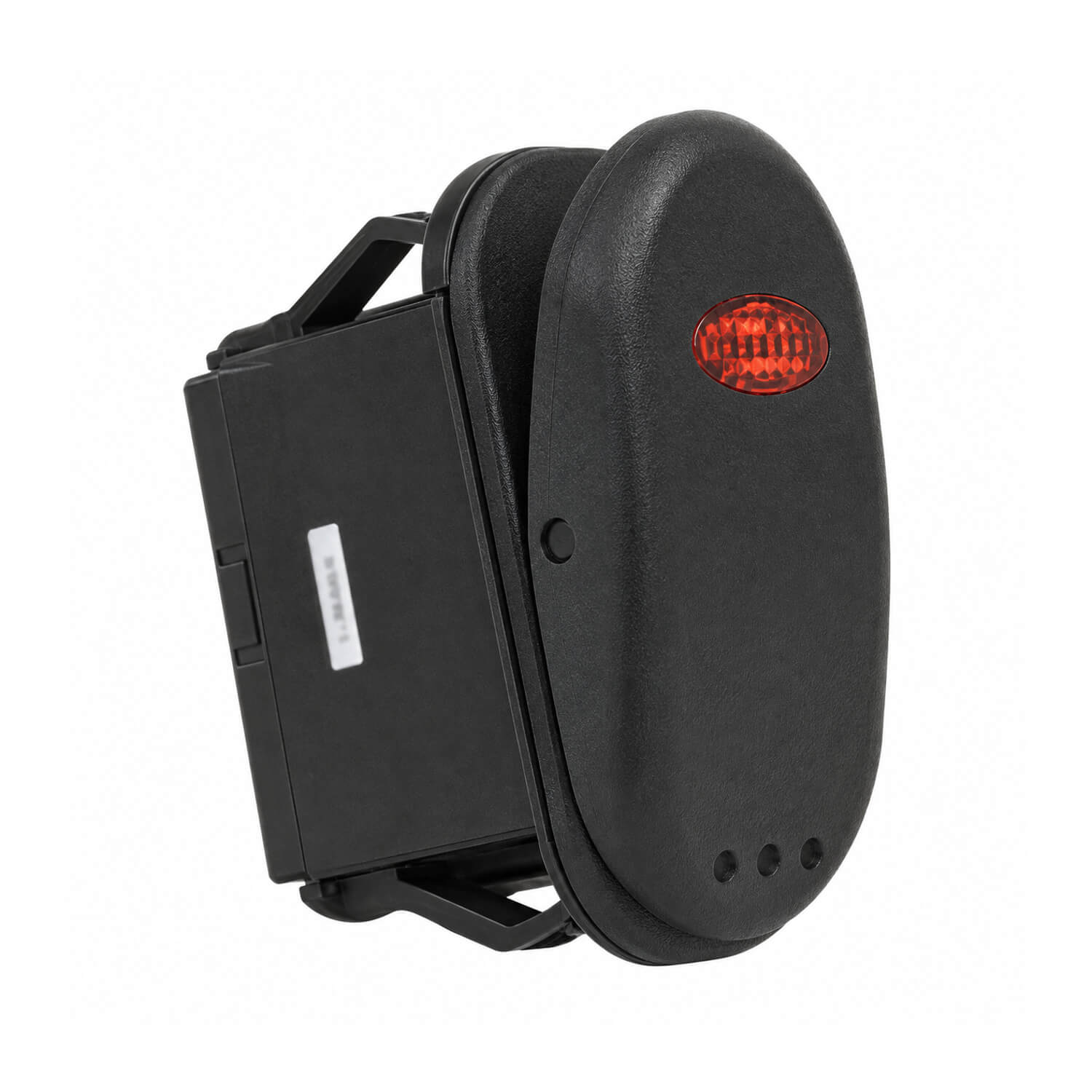

This charcoal rocker provides red LED illumination when on and is listed for RWB2104, RWB2105 and RWB2106 weatherproof alloy panels. The 20 x 35mm cut-out is a direct mounting check for a replacement or suitable new panel. Four locking tabs retain it, with a sealing gasket supplied for the mounting interface. Check that the tabs engage properly and the gasket is seated evenly when fitting the switch.

Charcoal-coloured rocker switch with red LED illumination when on. Includes sealing gasket and four locking tabs. Also listed for the weatherproof alloy panels RWB2104, RWB2105 and RWB2106.

  • Maximum rating: 21A
  • Voltage: 12V or 24V
  • Hole cut-out: 20 x 35mm

For a replacement, compare the original switch's operating action, electrical rating and mounting arrangement before choosing the new part. A similar appearance alone does not establish that the wiring arrangement matches. For a new installation, identify the equipment being controlled and check its normal current, starting demand where relevant, and required switching function. Use a suitably qualified marine electrical installer if the circuit requirements are uncertain.

Plan the mounting position around everyday operation. The control should be easy to reach and identify, with enough space around it for deliberate use. Check behind the dashboard for cables, structure and other instruments before drilling. Allow room for terminals and cable bends, and support the wiring so its weight and movement do not pull on the switch connections.

Isolate the relevant supply before installation and label existing wires before disconnecting them. Use cable and circuit protection selected for the complete installation, then secure and protect all connections appropriately. Once fitted, test the intended function under controlled conditions and make sure the control is clearly identified for other people aboard.

For ongoing care, include the control in routine electrical inspections. Check for looseness, damaged insulation or a change in operating feel, and investigate any unreliable function before continued use. Keep the surrounding area clear so the switch can be operated deliberately and its label remains visible.
