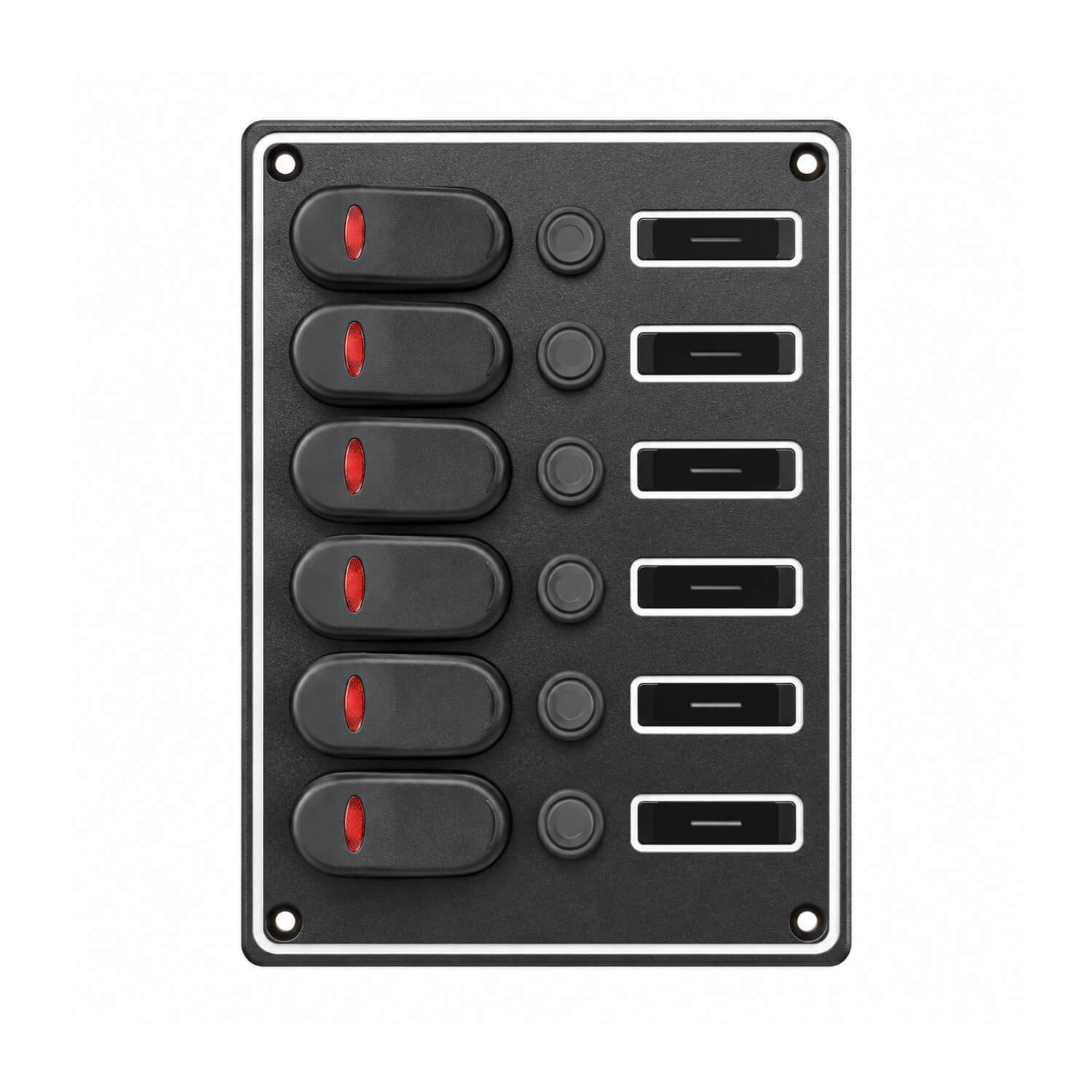

Weatherproof Alloy Marine LED Switch Panel - 6 Switches, Vertical, 12/24V RWB2105

$97.24 each
Brand: AAA Marine Inspection Ports & Boat Accessories

+
–
The add to cart button will appear once you select the values above

The six-switch vertical configuration offers a larger control group for installations with room for a 135 x 190mm face. Plan the order of the accessories so regularly used functions are easy to locate. The LED rockers provide indication at each switch, and the individual fuses make circuit identification important during servicing. Check access behind the whole panel before selecting a location, including clearance for the pre-wired connections and backing gasket.

Black textured alloy panel with LED rocker switches, weatherproof gaskets and individually fused circuits with O-ring seals. Pre-wired with backing gasket, blackened stainless screws and accessory label set.

  • Voltage: 12V or 24V
  • Maximum rating: 21A
  • Switches: 6
  • Mounting: vertical
  • Size: 135 x 190mm

For layout planning, list the accessories you want to operate separately, then match each circuit to its electrical load and protection requirements. Cabin lighting, deck lighting and other auxiliary equipment are possible uses where the individual appliance requirements suit the panel. Position frequently used controls where the operator can reach them comfortably without reaching across the wheel or other instruments. Clear circuit identification also makes it easier for another person aboard to find the correct control.

Before cutting the mounting surface, check the actual panel, rear components and cable route together. Allow room to make connections without forcing wires against the panel back, and retain access for inspection and servicing. The stated face dimensions should be used for space planning; confirm the required opening from the product before cutting. Support the cable loom so movement and vibration are not carried by the terminals.

Installation should include correctly sized cable, suitable upstream protection and connections appropriate to the boat's electrical system. Have a suitably qualified installer confirm the arrangement where necessary. After installation, test each circuit individually, label it to match the connected equipment and record the layout for later fault finding.
