Weatherproof Alloy Marine LED Switch Panel - 3 Switches, Vertical, 12/24V RWB2104

$52.17 each
Brand: AAA Marine Inspection Ports & Boat Accessories

+
–
The add to cart button will appear once you select the values above

Three switches in a vertical arrangement suit a small control group on a relatively narrow area of the dashboard. The textured black alloy face can be considered when matching existing metal instrument panels. Its 135 x 95mm size should be assessed in the intended upright orientation. Individual fused circuits with O-ring seals keep protection associated with each control. Preserve space around the LED rockers for comfortable operation and label reading.

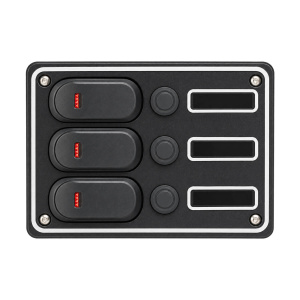

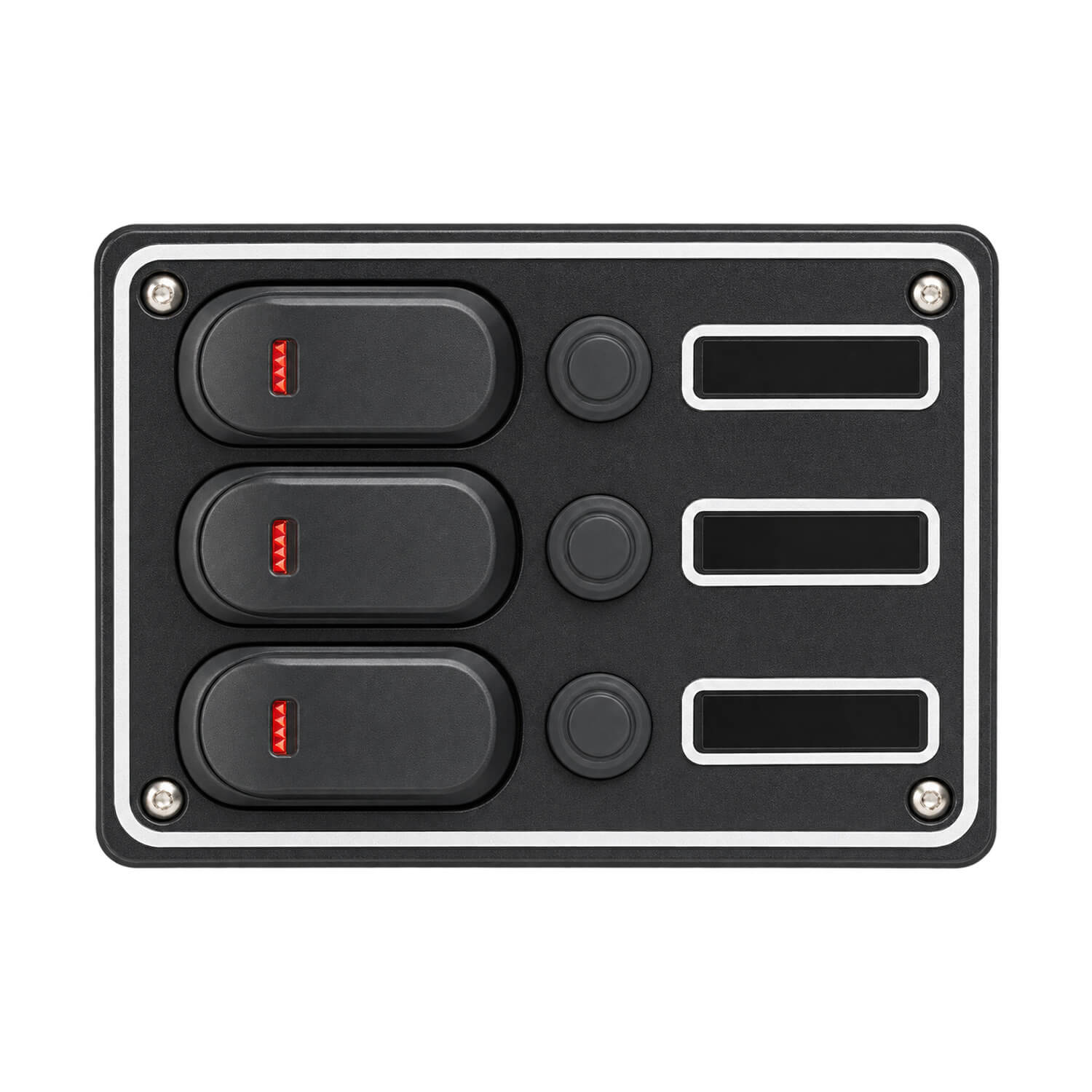

Black textured alloy panel with LED rocker switches, weatherproof gaskets and individually fused circuits with O-ring seals. Pre-wired with backing gasket, blackened stainless screws and accessory label set.

  • Voltage: 12V or 24V
  • Maximum rating: 21A
  • Switches: 3
  • Mounting: vertical
  • Size: 135 x 95mm

For layout planning, list the accessories you want to operate separately, then match each circuit to its electrical load and protection requirements. Cabin lighting, deck lighting and other auxiliary equipment are possible uses where the individual appliance requirements suit the panel. Position frequently used controls where the operator can reach them comfortably without reaching across the wheel or other instruments. Clear circuit identification also makes it easier for another person aboard to find the correct control.

Before cutting the mounting surface, check the actual panel, rear components and cable route together. Allow room to make connections without forcing wires against the panel back, and retain access for inspection and servicing. The stated face dimensions should be used for space planning; confirm the required opening from the product before cutting. Support the cable loom so movement and vibration are not carried by the terminals.

Installation should include correctly sized cable, suitable upstream protection and connections appropriate to the boat's electrical system. Have a suitably qualified installer confirm the arrangement where necessary. After installation, test each circuit individually, label it to match the connected equipment and record the layout for later fault finding.
