Wave Design Marine Circuit Breaker Switch Panel - 5 Switches and Battery Meter RWB5827

$59.14 each
Brand: AAA Marine Inspection Ports & Boat Accessories

+
–
The add to cart button will appear once you select the values above

The five-switch layout adds a battery voltage meter with red and green indication, bringing an electrical reading into the same area as accessory controls. Place the panel where that indication can be seen from the normal operating position. Use the meter reading as one piece of information when checking the electrical system; interpret voltage in the context of charging and connected loads. Assign the five breaker-protected circuits before applying the supplied labels.

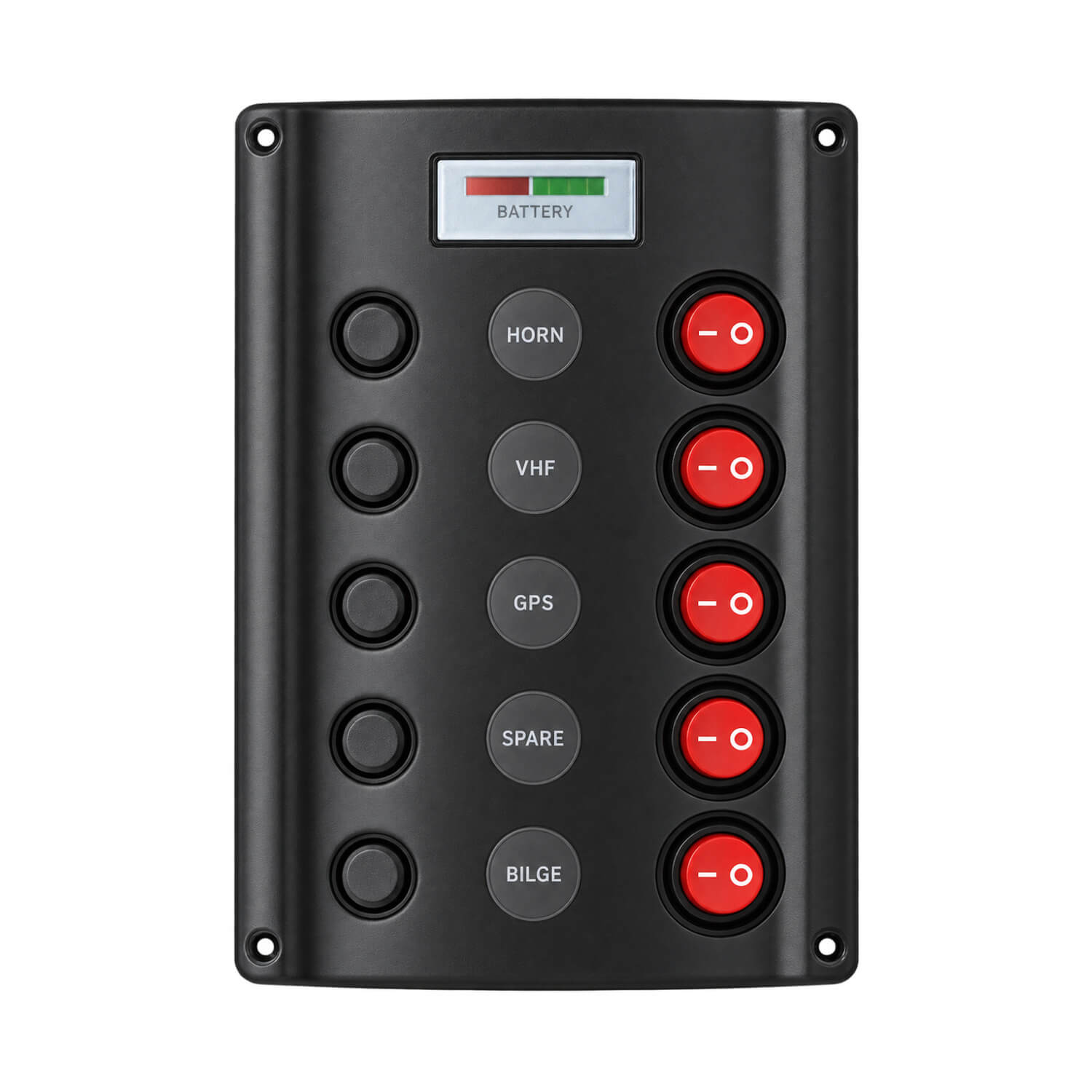

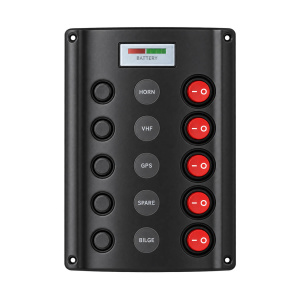

Contoured black UV-treated plastic switch panel with reinforced fastening holes, UL-approved IP65 splashproof LED rocker switches and push-reset circuit breakers. Fully wired, with stainless fastenings and 30 assorted stick-on labels. Can be mounted vertically or horizontally.

  • Voltage: 12V only
  • Switches: 5
  • Battery voltage meter with red/green indication
  • Breakers: one 5A, two 10A, two 15A
  • Panel size: 160 x 107mm

For layout planning, list the accessories you want to operate separately, then match each circuit to its electrical load and protection requirements. Cabin lighting, deck lighting and other auxiliary equipment are possible uses where the individual appliance requirements suit the panel. Position frequently used controls where the operator can reach them comfortably without reaching across the wheel or other instruments. Clear circuit identification also makes it easier for another person aboard to find the correct control.

Before cutting the mounting surface, check the actual panel, rear components and cable route together. Allow room to make connections without forcing wires against the panel back, and retain access for inspection and servicing. The stated face dimensions should be used for space planning; confirm the required opening from the product before cutting. Support the cable loom so movement and vibration are not carried by the terminals.

Installation should include correctly sized cable, suitable upstream protection and connections appropriate to the boat's electrical system. Have a suitably qualified installer confirm the arrangement where necessary. After installation, test each circuit individually, label it to match the connected equipment and record the layout for later fault finding.
