Water-Resistant Marine Wave Switch Panel - 6 Switches, 12V, 109 x 96mm RWB2162

$86.65 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

Six switches make this variant a choice for keeping a group of fixed accessory controls together. Its wave-style face can be used as part of a helm or secondary control layout where the circuit requirements suit. The listed 109 W x 96mm H face should be checked against the supplied template before cutting. Reinforced corners support the mounting design, while the gasket needs a suitable seating surface to perform its sealing role.

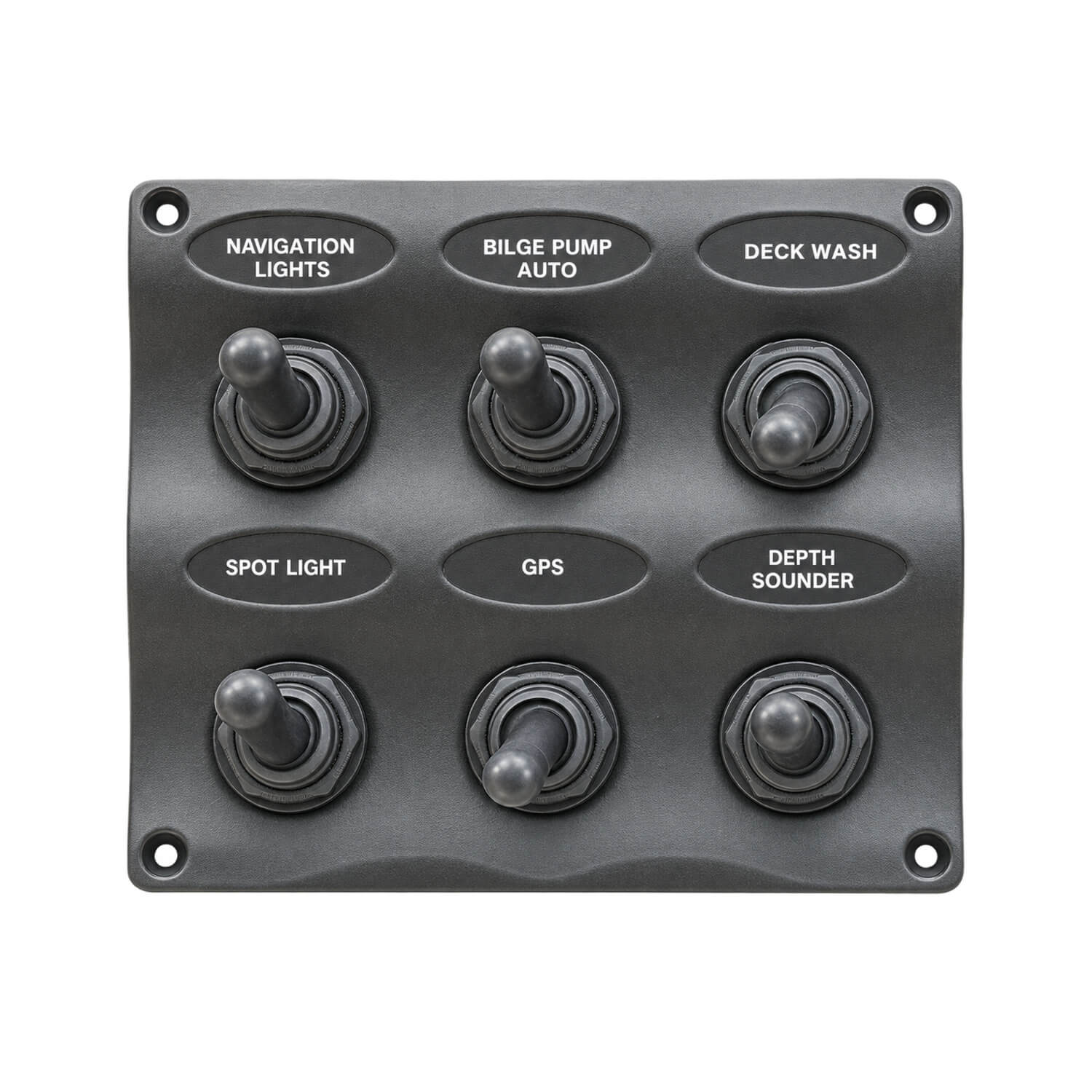

Black plastic panel with flat back, wave-style face and reinforced corners. Includes mounting gasket, mounting template, booted switches, water-resistant fuse holders and 28 name labels. Fully wired.

  • Voltage: 12V
  • Switch rating: 20A
  • Fuses: 15A
  • Size: 109 W x 96mm H
  • Switches: 6

For layout planning, list the accessories you want to operate separately, then match each circuit to its electrical load and protection requirements. Cabin lighting, deck lighting and other auxiliary equipment are possible uses where the individual appliance requirements suit the panel. Position frequently used controls where the operator can reach them comfortably without reaching across the wheel or other instruments. Clear circuit identification also makes it easier for another person aboard to find the correct control.

Before cutting the mounting surface, check the actual panel, rear components and cable route together. Allow room to make connections without forcing wires against the panel back, and retain access for inspection and servicing. The stated face dimensions should be used for space planning; confirm the required opening from the product before cutting. Support the cable loom so movement and vibration are not carried by the terminals.

Installation should include correctly sized cable, suitable upstream protection and connections appropriate to the boat's electrical system. Have a suitably qualified installer confirm the arrangement where necessary. After installation, test each circuit individually, label it to match the connected equipment and record the layout for later fault finding.
