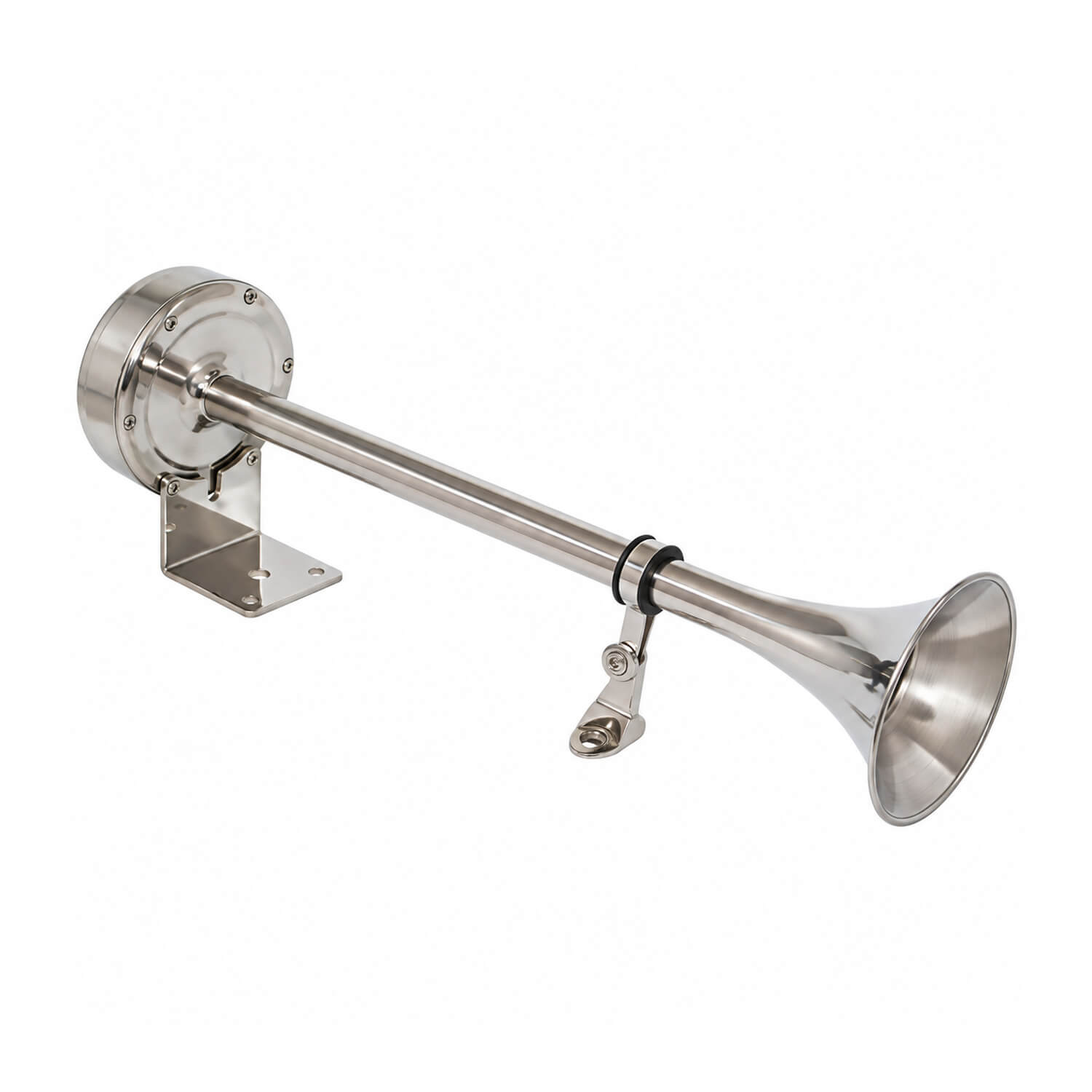

Stainless Steel Marine Trumpet Horn - Single, 12V, 110dB RWB990
This 12V stainless steel marine trumpet horn offers a single-horn arrangement with a 110dB sound rating. Its all-stainless exterior and integral mounting brackets make materials and mounting layout clear parts of the selection.
Marine trumpet horn with an all-stainless exterior and integral stainless mounting brackets.
- Sound rating: 110dB
- Current: 3.5A
- Voltage: 12V
- Size: 390 L x 100 W x 125mm H
- Single horn
The single horn measures 390mm long, 100mm wide and 125mm high. Use all three dimensions when checking a proposed position, including clearance around adjacent fittings. For a replacement, compare the existing bracket arrangement and wiring route rather than assuming an identical fit from the horn’s appearance.
The listed current for this 12V version is 3.5A. Match the voltage to the boat’s supply and use the electrical details when reviewing the installation with your fitter. Wiring, switching and circuit protection should be selected for the actual circuit and cable run in accordance with the product instructions.
The integral stainless mounting brackets are positioned at the rear and shaft of the horn. Before fitting, inspect the proposed surface and the space behind it, and plan how the brackets will be accessed during installation. Keep nearby equipment clear enough to allow future inspection of the mountings and electrical connections.
For a refit, check the condition of the existing cable and mounting surface while the old horn is removed. Address any installation issues before fitting the replacement, then test operation as directed. Routine checks are also useful after other equipment has been added near the horn.
Select signalling equipment with the vessel and activity in mind, using the stated sound rating alongside applicable requirements. The stainless exterior and trumpet layout describe this product’s construction; the final mounting position and electrical arrangement should be confirmed for your particular boat.
A proposed cabin-top position should be checked with nearby fittings in place. Allow access around the single trumpet for fastening, cable inspection and normal movement during boat maintenance.
