Square-Head Panel Marine Fuse Holder - Top Entry, Horizontal Panels, 50mm RWB1779

$6.04 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

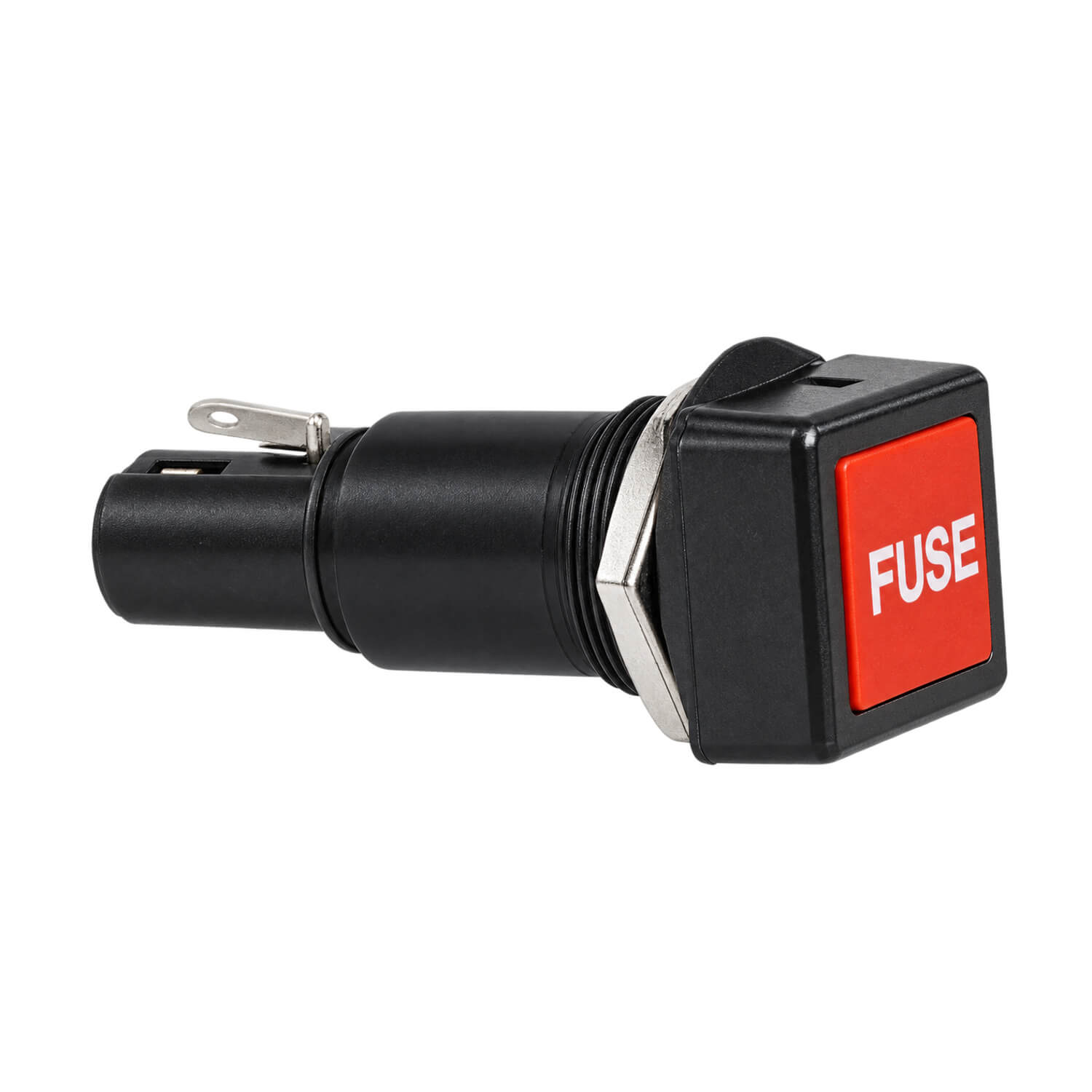

Clip-open square-head fuse holder with red cap and dress ring for compatible RWB alloy illuminated panels. Fuse is not included.

  • Mounting hole diameter: 15mm
  • Length: 50mm
  • Cap opening: top entry
  • For horizontal panels, including RWB2073 and RWB2073B

A replacement panel fuse holder helps restore a serviceable fuse access point while retaining the layout of a compatible existing switch panel. Before ordering, check the panel model and inspect the shape and opening arrangement of the fitted holder. The listed dimensions are particularly useful when comparing a damaged component or planning the space behind the panel.

The opening direction deserves attention because surrounding switches, panel edges and nearby trim can affect access. Allow enough room to open the cap and withdraw the fuse comfortably, as well as space behind the panel for the body and wiring connections. For a replacement, compare the mounting hole, panel arrangement and terminal connections with the original part rather than selecting solely by appearance.

Choose the fuse separately according to the holder's accepted fuse format and the protected circuit's requirements. Use the equipment instructions and wiring information to establish the correct current rating. Keep a record of the selected fuse beside the circuit label so routine servicing can be carried out consistently. If the previous fuse failed, investigate the underlying wiring or equipment fault before returning the circuit to service.

As installation guidance, isolate the supply before opening the panel and support the connected wires while the old holder is removed. Seat the replacement securely, check that the cap operates freely and ensure that the wiring is not trapped against adjacent components. Inspect the surrounding panel for damage at the same time. After installation, maintain clear access to the fuse position and periodically check the holder and connections. This is especially helpful on compact control panels where several similar circuits are positioned close together.

For this top-entry version, check clearance above the red cap when assessing access on a horizontal panel.
