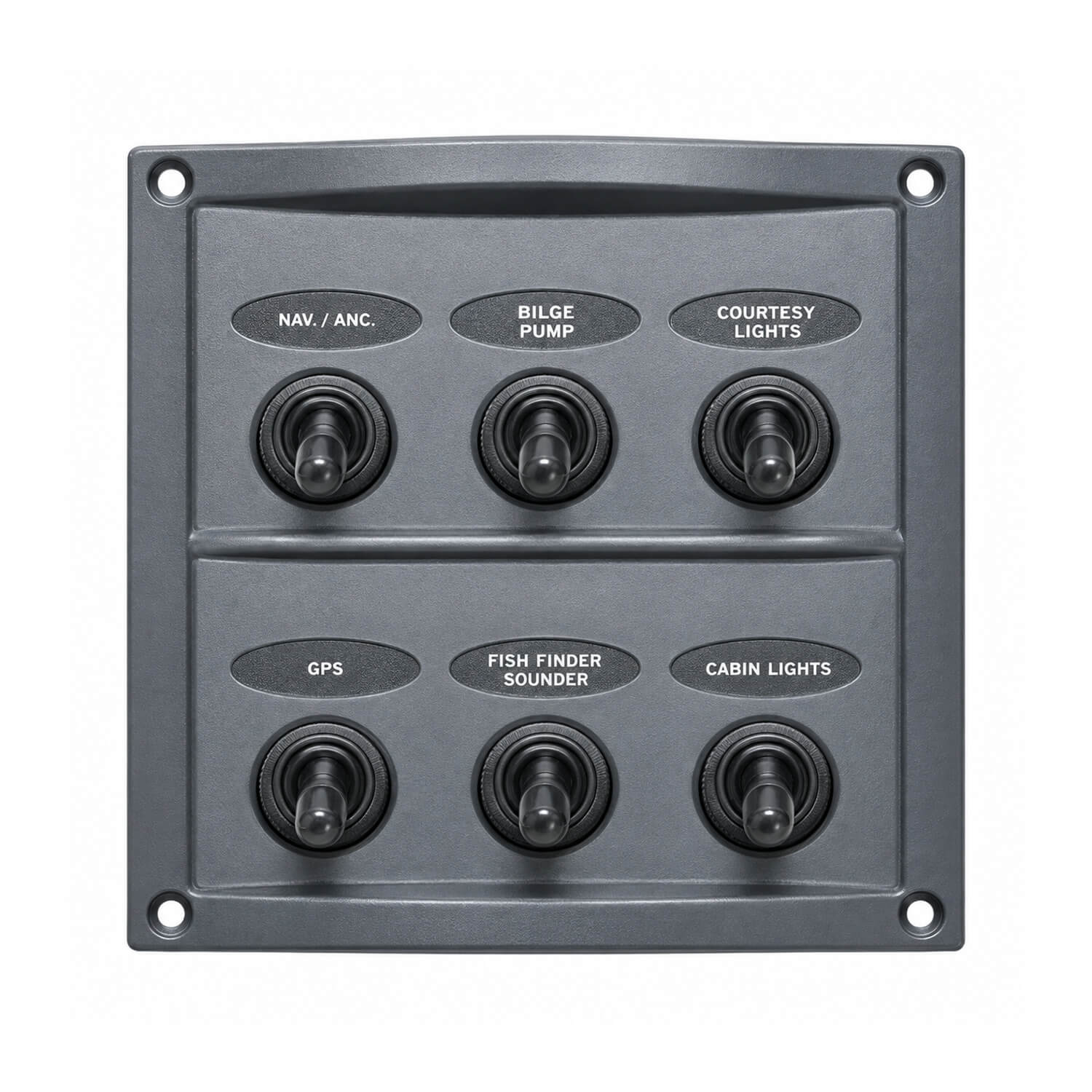

Splashproof Marine Switch Panel - Grey, 6 Switches, 12/24V, 120 L x 105mm W RWB2091

$49.82 each
Brand: AAA Marine Inspection Ports & Boat Accessories

+
–
The add to cart button will appear once you select the values above

This grey six-switch panel gives separate control positions for a broader set of accessories. Its 120 L x 105mm W dimensions are useful when planning a console update or replacing a smaller control bank. Consider grouping related functions together so the panel is straightforward to operate. The rear-mounted, enclosed blade-fuse holders should be accessible for inspection. Although the panel suits either 12V or 24V, confirm that every connected accessory matches the boat's system.

UV-resistant contoured plastic panel with black neoprene switch boots and enclosed weatherproof blade-fuse holders behind the panel. Fully wired, with 15A fuses and 28 assorted labels.

  • Voltage: 12V or 24V
  • Fuses: 15A blade type
  • Colour: grey
  • Switches: 6
  • Size: 120 L x 105mm W

For layout planning, list the accessories you want to operate separately, then match each circuit to its electrical load and protection requirements. Cabin lighting, deck lighting and other auxiliary equipment are possible uses where the individual appliance requirements suit the panel. Position frequently used controls where the operator can reach them comfortably without reaching across the wheel or other instruments. Clear circuit identification also makes it easier for another person aboard to find the correct control.

Before cutting the mounting surface, check the actual panel, rear components and cable route together. Allow room to make connections without forcing wires against the panel back, and retain access for inspection and servicing. The stated face dimensions should be used for space planning; confirm the required opening from the product before cutting. Support the cable loom so movement and vibration are not carried by the terminals.

Installation should include correctly sized cable, suitable upstream protection and connections appropriate to the boat's electrical system. Have a suitably qualified installer confirm the arrangement where necessary. After installation, test each circuit individually, label it to match the connected equipment and record the layout for later fault finding.
