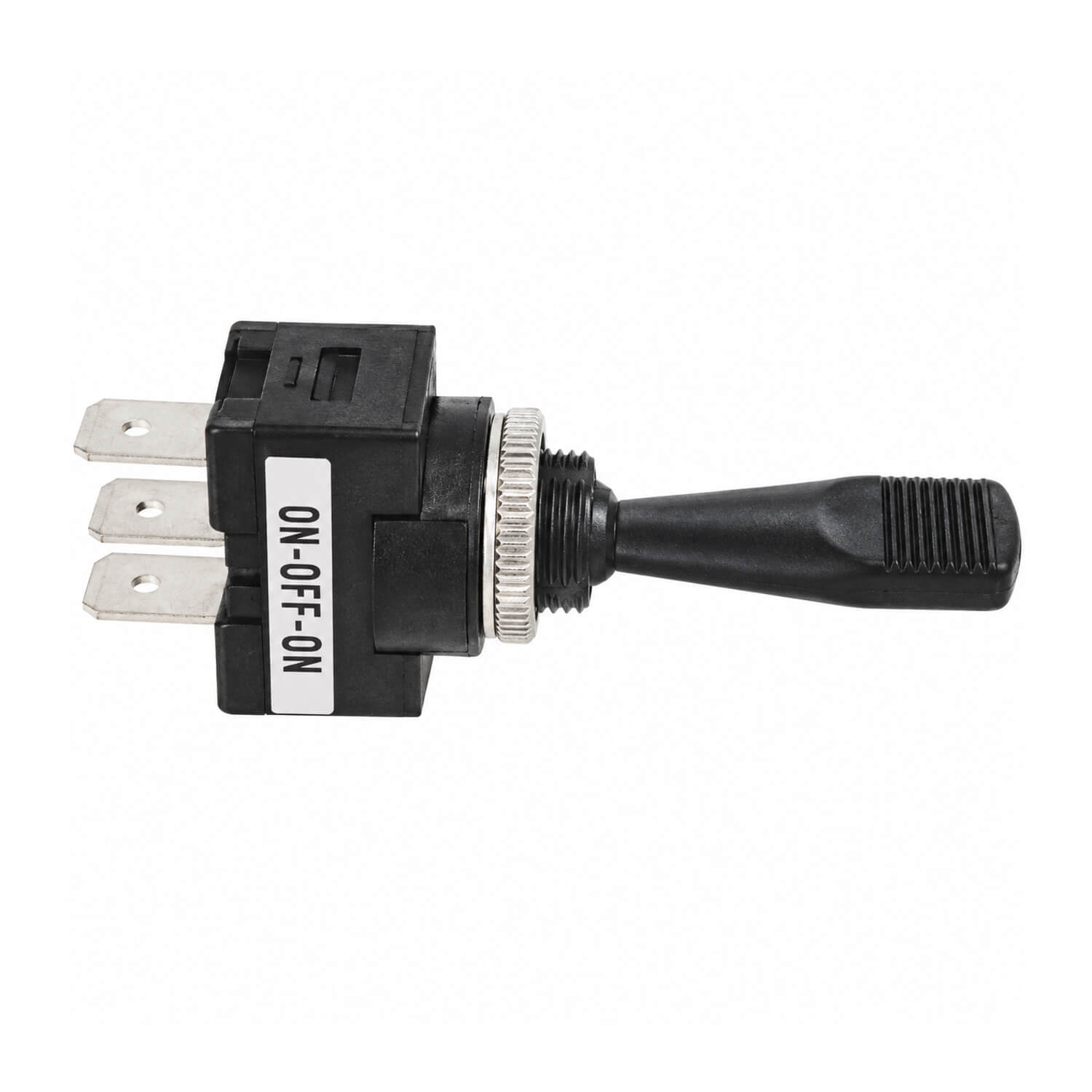

Plastic Three-Position On-Off-On Marine Toggle Switch - 15A 12/24V, 12mm Shaft RWB1254

$5.26 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

Three positions, on/off/on, allow this toggle to be considered for a control arrangement with two selected operating states and a central off position. Confirm the terminal functions and circuit design before assigning equipment to either side. Label both active positions clearly rather than relying on lever direction alone. The plastic switch uses a 12mm shaft stem and suits dash thickness up to 8mm, which should be checked before drilling.

Plastic toggle switch with on/off/on positions.

  • Rating: 15A
  • Voltage: 12V or 24V
  • Maximum dash thickness: 8mm
  • Shaft stem diameter: 12mm

For a replacement, compare the original switch's operating action, electrical rating and mounting arrangement before choosing the new part. A similar appearance alone does not establish that the wiring arrangement matches. For a new installation, identify the equipment being controlled and check its normal current, starting demand where relevant, and required switching function. Use a suitably qualified marine electrical installer if the circuit requirements are uncertain.

Plan the mounting position around everyday operation. The control should be easy to reach and identify, with enough space around it for deliberate use. Check behind the dashboard for cables, structure and other instruments before drilling. Allow room for terminals and cable bends, and support the wiring so its weight and movement do not pull on the switch connections.

Isolate the relevant supply before installation and label existing wires before disconnecting them. Use cable and circuit protection selected for the complete installation, then secure and protect all connections appropriately. Once fitted, test the intended function under controlled conditions and make sure the control is clearly identified for other people aboard.

For ongoing care, include the control in routine electrical inspections. Check for looseness, damaged insulation or a change in operating feel, and investigate any unreliable function before continued use. Keep the surrounding area clear so the switch can be operated deliberately and its label remains visible.
