316 Stainless 3/4in BSP Full-Bore Ball Valve with Stainless Handle for Boat Use RWB1446

$50.01 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

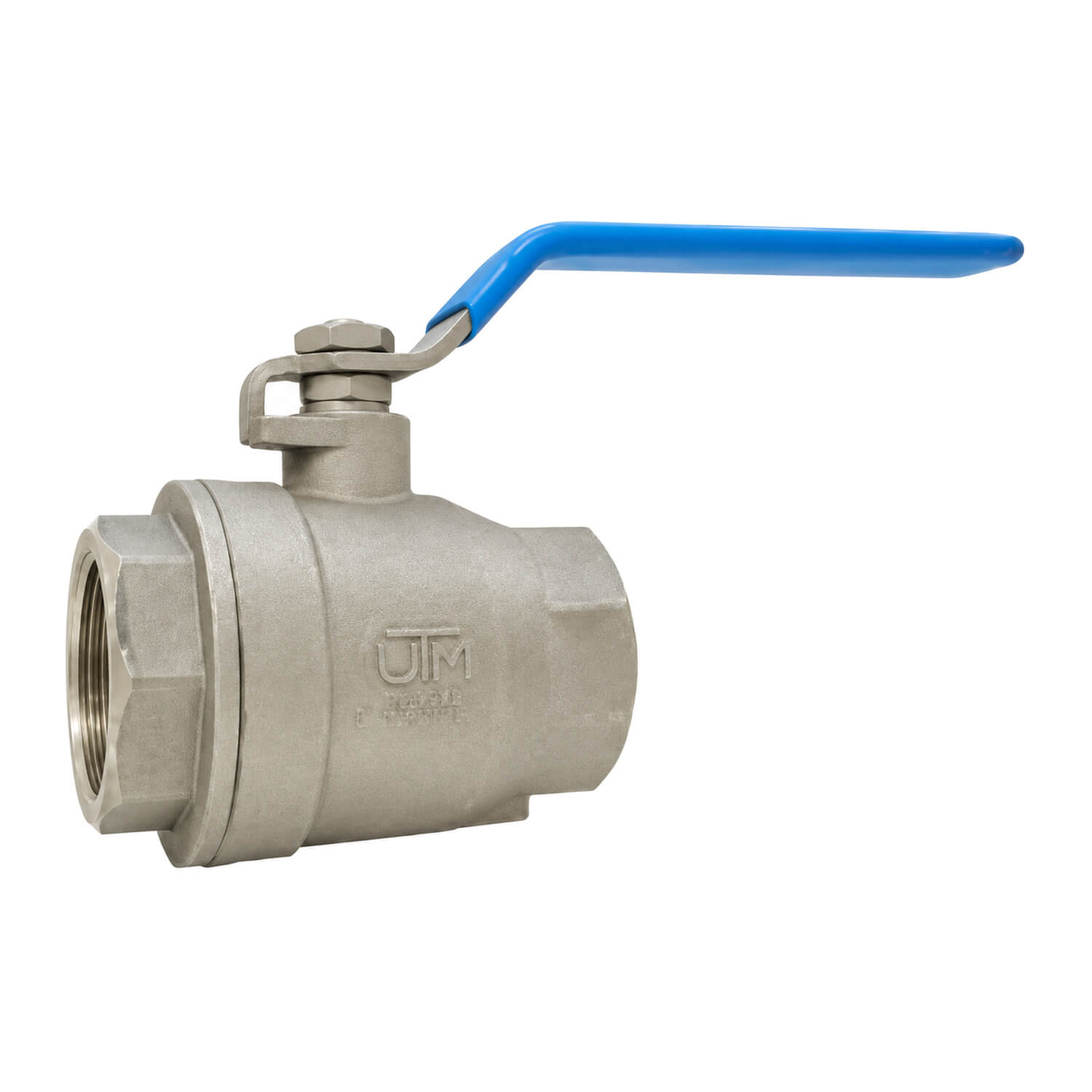

316 Stainless 3/4in BSP Full-Bore Ball Valve with Stainless Handle for Boat Use

This 3/4 inch marine ball valve provides a manually operated connection point for controlling flow in a compatible onboard plumbing system. It has an investment-cast 316 stainless steel body with a 316 stainless ball, stem and handle, together with PTFE gland packing and seals. The ports are full-bore, parallel female BSP threads, allowing the valve to be selected against the male threaded fittings in the installation. The nominal size is listed as 3/4 inch, with a 20mm size designation. These are connection references rather than measurements of the valve body or handle clearance. The full-bore construction describes the flow passage through the valve; the performance of the complete system still depends on the connected hose, fittings and installation.

Choosing and using this product

Check both adjoining components for the correct 3/4 inch BSP connection before ordering. Confirm thread form, sealing method and the materials used throughout the assembly with the equipment or fitting supplier. Lay out the valve so the handle can travel through its full operating movement without contacting a bulkhead, hose or nearby equipment. Keep the handle and connections accessible for inspection, operation and later replacement. Support the surrounding pipework or hose so its weight and movement are not carried through an unsupported valve connection. Do not infer a working pressure, temperature limit or fluid approval from the body material or nominal size alone; obtain those limits if the proposed service depends on them. A valve fitted to a hull inlet also needs a suitable through-hull arrangement and installation assessment. After assembly, check the joints for leakage and verify that the handle can be operated comfortably in the installed position. Follow the requirements of the complete water system when testing or servicing it.

Product details

  • Nominal port size: 3/4 inch / 20mm.
  • Port threads: parallel female BSP.
  • Construction: full bore.
  • Body material: 316 stainless steel.
  • Ball, stem and handle: 316 stainless steel.
  • Gland packing and seals: PTFE.
