316 Stainless 1in BSP Scoop Skin Fitting with Hull Strainer for Marine Plumbing RWB1619

$67.20 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

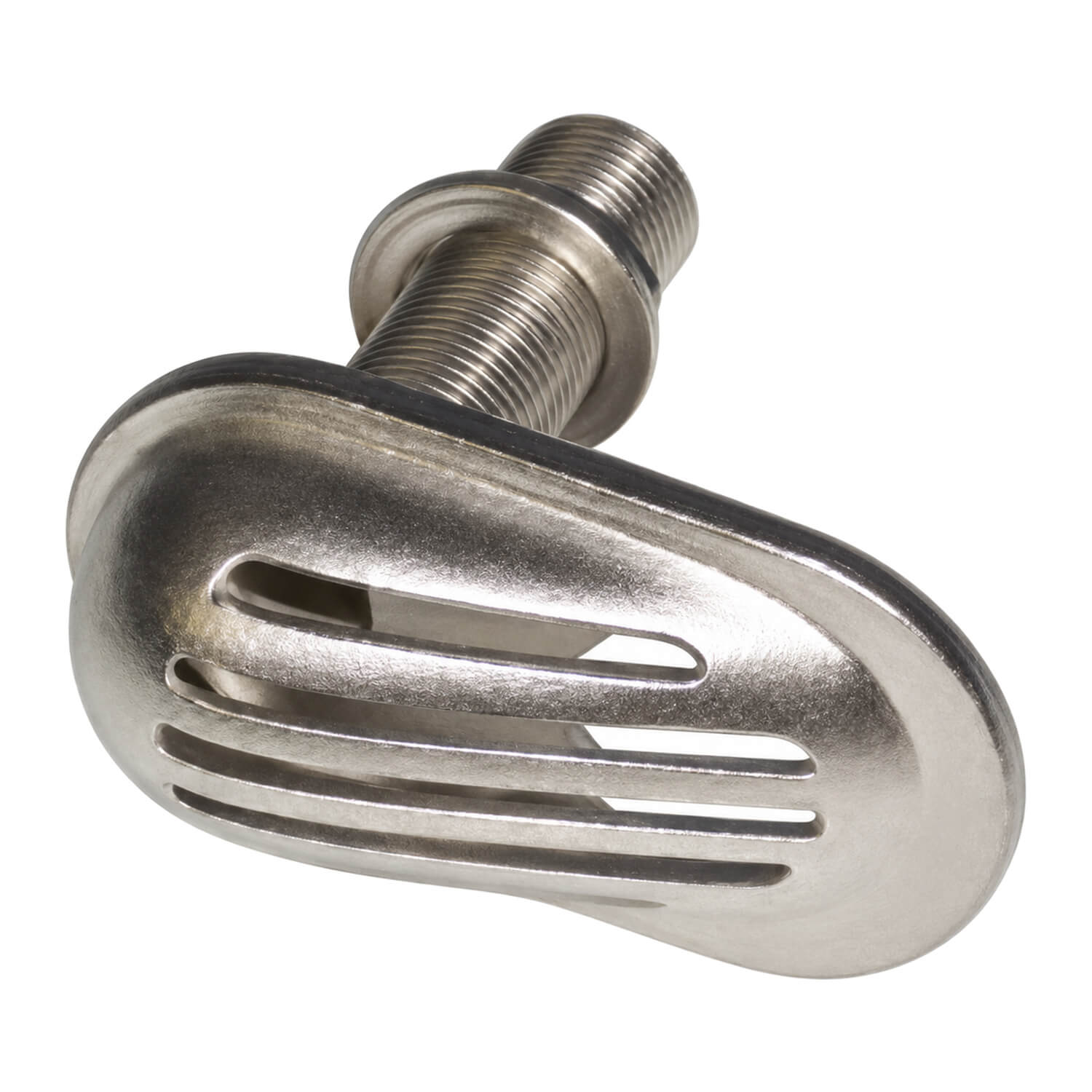

316 Stainless 1in BSP Scoop Skin Fitting with Hull Strainer for Marine Plumbing

This 316 grade stainless steel scoop skin fitting combines a through-hull connection, water scoop and hull strainer in one fitting. The 1 inch BSP thread is the connection size to match with the adjoining plumbing, and the size is also listed as 25mm. The combined form places the scoop and strainer at the hull inlet rather than requiring a separate cover-style scoop to be selected around the fitting. It is intended for an appropriately designed marine water intake where all parts of the installation have been matched. Thread size alone does not establish the mounting-hole diameter, available shaft length, flow capacity or suitability for a particular engine or appliance. Those details need to be checked against the requirements of the actual installation.

Choosing and using this product

Start by confirming that the receiving valve or component uses the correct 1 inch BSP connection. Check the hull thickness, fitting length, mounting dimensions and available space inside the hull before preparing the installation. The scoop orientation and position should suit the boat and the connected equipment, because the way water reaches an intake changes with the hull layout and boat movement. Ask a competent marine installer to assess any below-waterline arrangement, including the valve, hose route and access for emergency operation or maintenance. Choose bedding, fasteners and thread-sealing methods appropriate to the materials and the equipment instructions. Avoid relying on the stainless steel grade as proof of a pressure rating or universal fluid compatibility. Keep the scoop and strainer accessible for inspection and cleaning, and include any further filter required by the connected equipment. After fitting, inspect the hull joint and internal connections for leakage, then check the complete water system under the conditions specified by its equipment manufacturer.

Product details

  • Nominal connection: 1 inch BSP / 25mm.
  • Material: 316 grade stainless steel.
  • Combines through-hull skin fitting, water scoop and hull strainer.
  • Thread size is the connection reference.
