28mm Bilge Pump Kit with 1.8m Cuffed Hose for Boat Water Systems - RWB4501 RWB4501

$28.46 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

28mm Bilge Pump Kit with 1.8m Cuffed Hose for Boat Water Systems - RWB4501

28mm Bilge Pump Kit with 1.8m Cuffed Hose. This bilge pump plumbing kit brings together the hose, outlet fitting and clamps needed when arranging a discharge connection for the specified pump size. The black cuffed hose provides defined clamping areas, while the nylon skin fitting and two stainless steel hose clamps keep the main connecting pieces together in one pack. It is a useful choice when replacing a short discharge run or planning a new installation with a compatible pump. The included hose length is particularly important: measure the intended route rather than choosing a kit from pump capacity alone.

Choosing and using this product

Check the pump outlet diameter, the skin fitting position and the available hose route before ordering. The named Rule pump models provide a useful compatibility reference, but the physical outlet and installation still need checking, particularly where an existing system has been altered. Lay out the hose route with gradual bends and sufficient clearance from moving parts and sharp edges. Confirm that the included length reaches the intended outlet without stretching the hose or placing strain on either connection. Position the clamps on the hose cuffs and check their seating against the fittings. A hull outlet installation also requires assessment of mounting position, hull thickness, sealing and the boat's operating waterline. Those decisions should follow the pump and boat installation guidance, with a qualified marine installer involved where required. Once fitted, test the pump with water and check that the connections remain secure and free of leaks. Keep the discharge route accessible for inspection. If the route is longer than the supplied hose, select a suitable complete hose arrangement rather than assuming this kit will span it. Recheck the connections as part of routine bilge pump maintenance.

Product details

  • 28mm (1 1/8 inch) outlet; 1.8 metres (6 feet) hose. Suits Rule 1000, 1100, 1500 and 2000 pumps.

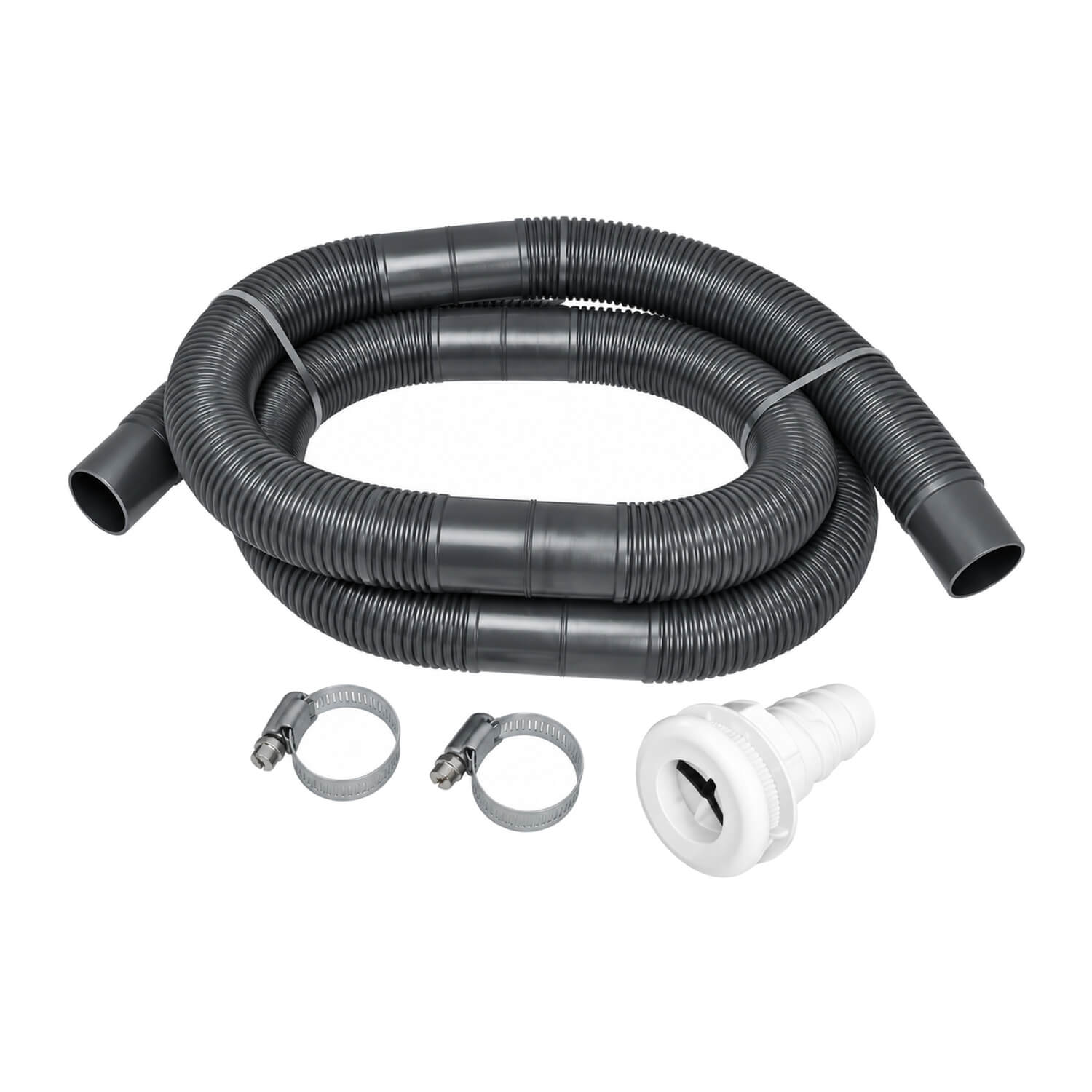

  • Includes black cuffed bilge hose, one nylon skin fitting and two stainless steel hose clamps. Clam-shell retail packaging.
  • Product code: RWB4501.
