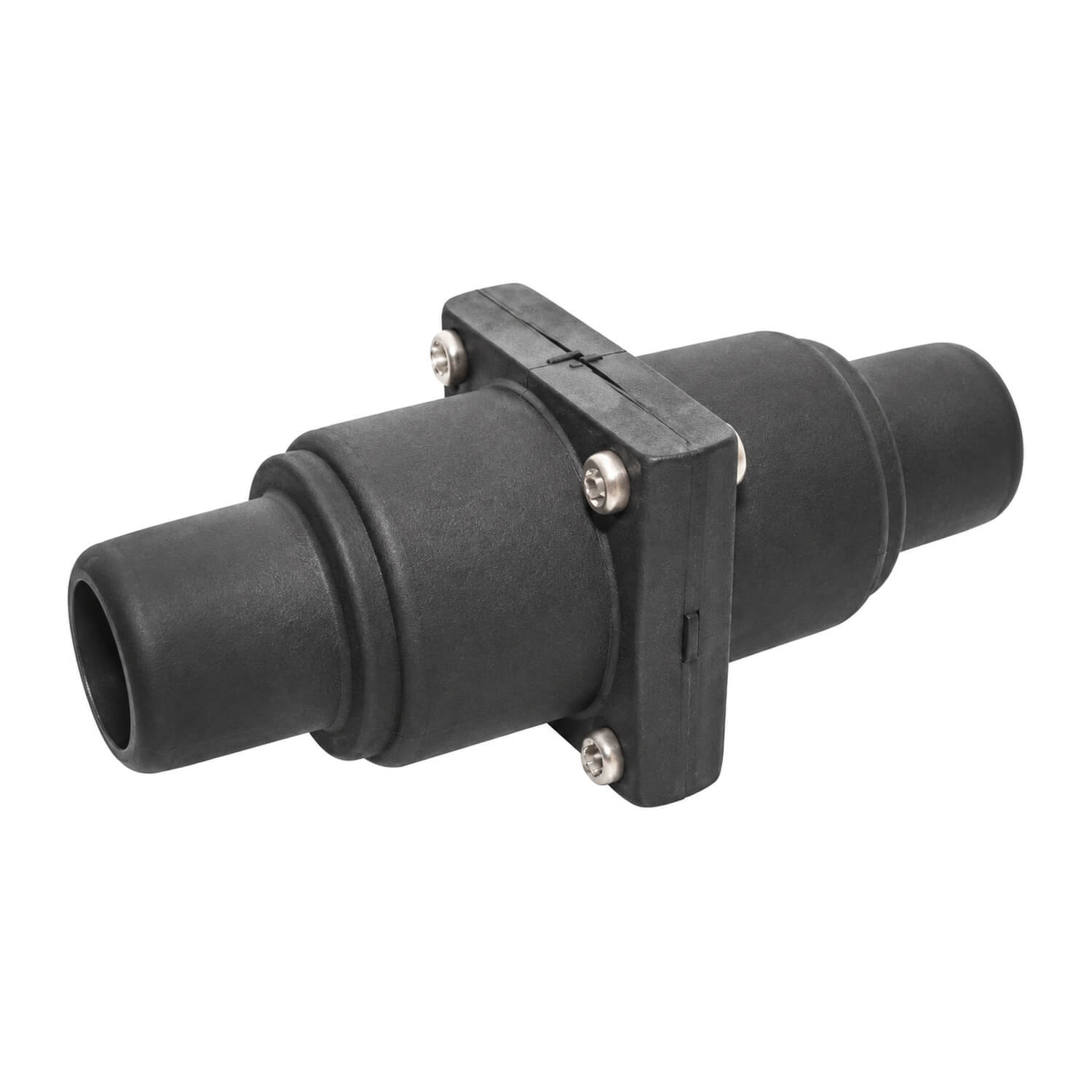

25mm and 38mm Reinforced Nylon Non-Return Valve for Boat Plumbing - RWB1424

25mm and 38mm Reinforced Nylon Non-Return Valve. A non-return valve controls the direction of flow in an appropriate hose line. In bilge plumbing, this type of component is used to help limit water returning through the line and, for the specified suction-line applications, assist priming. The exact construction and hose sizes for this option are listed below. Selecting the correct valve means checking the intended pump system as well as the connection diameter; a one-way valve should not be added solely because the hose sizes appear to match.

Choosing and using this product

Follow the pump manufacturer's guidance on whether a non-return valve is appropriate and where it should be installed. Check the valve's flow direction before connecting the hoses. Reversing a one-way component can prevent the intended flow, so verify the orientation before tightening clamps or covering the installation. Match the hose bore to the stated connection size and allow sufficient straight hose at each end for a secure joint. Keep the valve accessible for inspection and cleaning, since debris can interfere with the internal flap or sealing surface. Support the surrounding hose so it does not pull on the valve body. After installation, test the pump's normal operation and check the behaviour after the pump stops. Investigate unexpected flow restriction or poor priming rather than assuming the valve is functioning correctly. For stepped, cut-to-size ports, establish the required connection before removing any section, and follow the product's cutting guidance. Do not cut a fixed-size port. A non-return valve does not replace other required bilge or hull safety arrangements. Include it in routine system inspections and recheck operation after clearing debris or servicing the pump.

Product details

  • Dual barbed ports suit 25mm (1 inch) and 38mm (1 1/2 inch) hose.
  • Compact reinforced nylon body with neoprene valve and stainless fasteners.
  • Product code: RWB1424.
