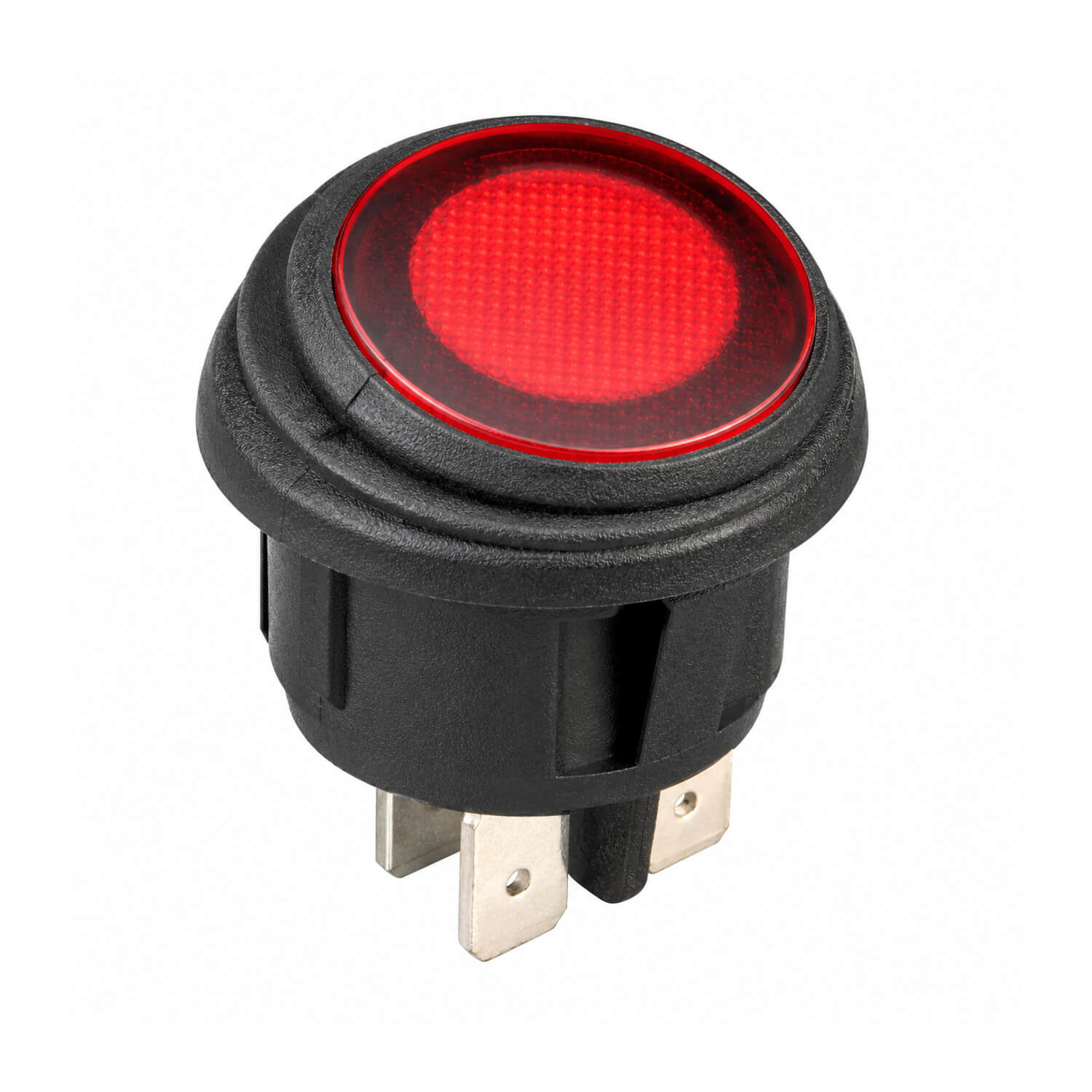

Mini Red LED On-Off Marine Rocker Switch - 12V 20A, 23mm Face, Clip-In Mount RWB1781

$5.15 each
Brand: AAA Marine Inspection Ports & Boat Accessories

+
–
The add to cart button will appear once you select the values above

Its round 23mm face makes this mini rocker worth considering where a small individual control is wanted. The retaining lugs provide clip-in mounting, and the red LED adds a visible indicator. It is also a listed replacement option for RWB5822-RWB5828 wave-design panels. Check the actual mounting opening and rear access before fitting; the face diameter is a visible face measurement, while the 25mm total depth must also be accommodated behind the chosen location.

Compact on/off switch with a red LED indicator. Clips into the fascia or panel with retaining lugs. Also suits RWB5822-RWB5828 wave-design panels.

  • Voltage: 12V
  • Current rating: 20A
  • Face diameter: 23mm
  • Total depth: 25mm

For a replacement, compare the original switch's operating action, electrical rating and mounting arrangement before choosing the new part. A similar appearance alone does not establish that the wiring arrangement matches. For a new installation, identify the equipment being controlled and check its normal current, starting demand where relevant, and required switching function. Use a suitably qualified marine electrical installer if the circuit requirements are uncertain.

Plan the mounting position around everyday operation. The control should be easy to reach and identify, with enough space around it for deliberate use. Check behind the dashboard for cables, structure and other instruments before drilling. Allow room for terminals and cable bends, and support the wiring so its weight and movement do not pull on the switch connections.

Isolate the relevant supply before installation and label existing wires before disconnecting them. Use cable and circuit protection selected for the complete installation, then secure and protect all connections appropriately. Once fitted, test the intended function under controlled conditions and make sure the control is clearly identified for other people aboard.

For ongoing care, include the control in routine electrical inspections. Check for looseness, damaged insulation or a change in operating feel, and investigate any unreliable function before continued use. Keep the surrounding area clear so the switch can be operated deliberately and its label remains visible.
