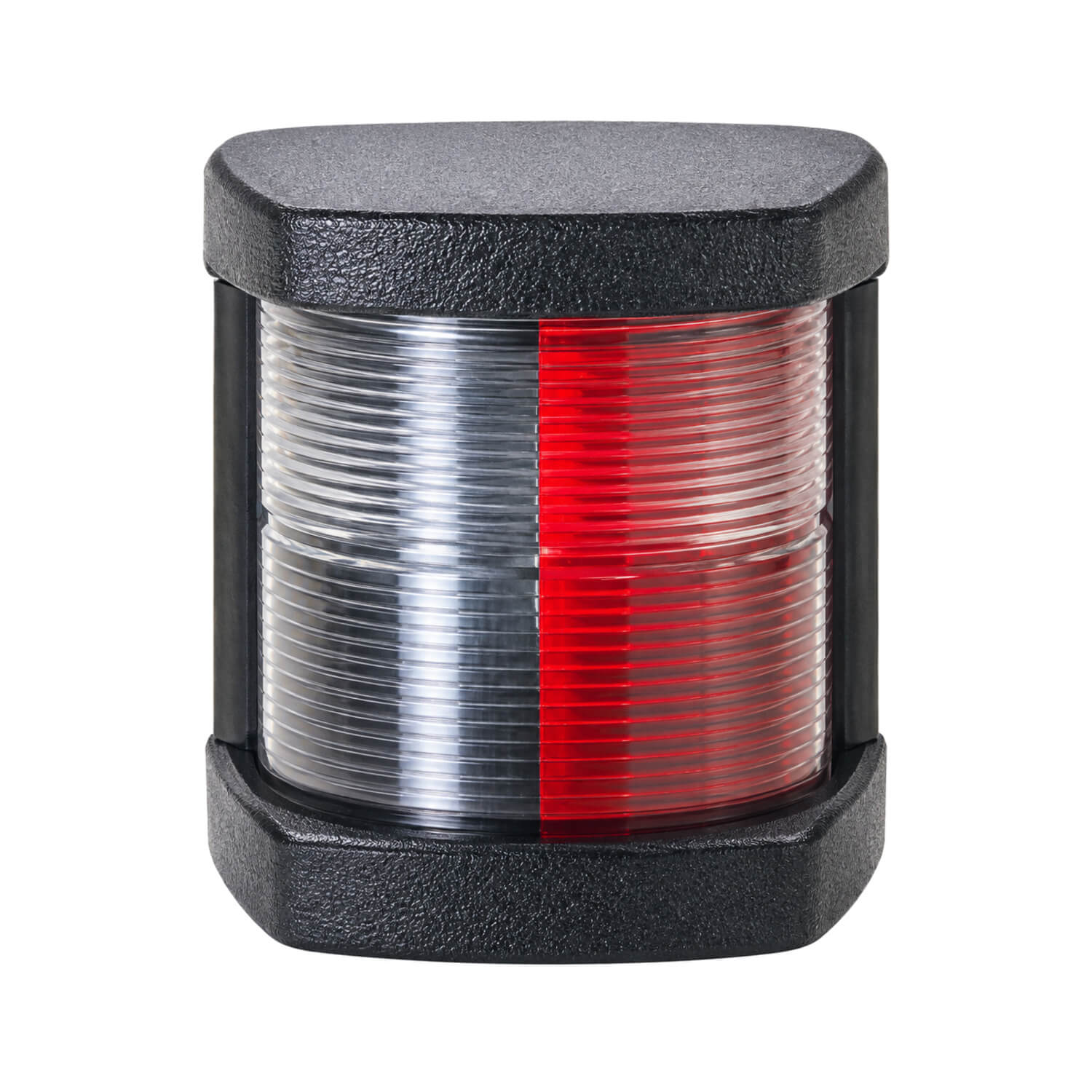

Lalizas Classic N12 Boat Bi-Colour Navigation Light - Black Vertical Mount RWB8682

Lalizas Classic N12 Boat Bi-Colour Navigation Light - Black Vertical Mount

The Lalizas Classic N12 bi-colour light is a conventional-bulb option for maintaining a straightforward marine lighting installation. Combining the port and starboard functions in one fitting can simplify the physical layout where a suitable central mounting position is available. It is worth checking this arrangement against the existing wiring and available space before choosing it in place of separate sidelights. The housing finish refers to the body, rather than changing the navigation function. Its replaceable bulb provides a familiar servicing approach, and the moulded housing combines a robust body with an acrylic lens. Matching the complete fitting to the existing installation is still important, particularly where another series has previously been used.

Choosing and using this product

Offer the fitting up to the intended upright surface before drilling. Check that the body can sit squarely, that the cable can pass into a protected route, and that nearby trim will not interfere with the lens. Do not assume that an old screw pattern will suit a different light family. Align the combined light carefully with the vessel and check that each sector faces the correct direction after fitting. Check the bulb rating when keeping spares aboard and inspect the contacts and seal during servicing. If the old light is a different family, compare its mounting arrangement rather than assuming a direct replacement. Isolate the lighting circuit before working on it, use connections appropriate for the marine environment, and check operation before departure. Match the complete installation to the vessel and current local requirements; the product rating alone does not establish that a particular mounting arrangement is suitable.

Product details

• Product code: RWB8682.
• Body finish: Black; mounting: vertical.
• Electrical supply: 12V DC only.
• Catalogue power rating: 10W conventional bulb.
• Catalogue dimensions: 70mm high x 63mm wide x 53mm deep.
• Light function: combined port and starboard in one unit.
• Catalogue-listed vessel length: up to 12 metres.
• Construction: UV-stabilised ABS body, shatter-proof acrylic lens, stainless steel contacts and nitrile rubber seal.
• Replacement bulb: SP750 festoon for this light.
