Lalizas Classic N12 Boat 360° Anchor Navigation Light - Black Base Mount RWB8685

$22.58 each
Brand: LALIZAS Marine Safety Equipment & Accessories

+
–
The add to cart button will appear once you select the values above

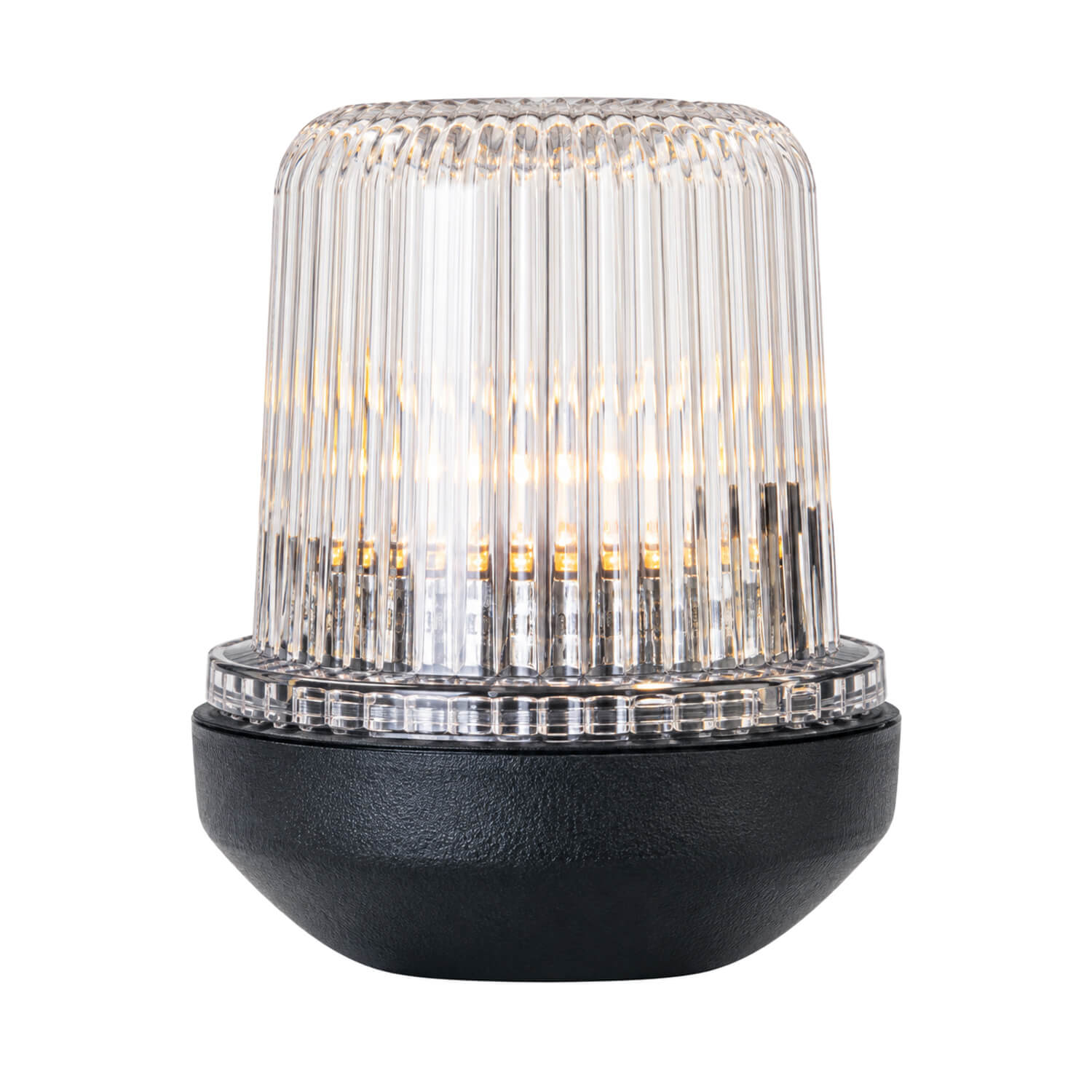

Lalizas Classic N12 Boat 360° Anchor Navigation Light - Black Base Mount

The Lalizas Classic N12 360° anchor light is a conventional-bulb option for maintaining a straightforward marine lighting installation. The all-round anchor function is intended to be visible around the boat from a suitable unobstructed position. Its separate fitting can be useful when planning the anchor-light part of an existing lighting installation. Look beyond the appearance of the housing and consider nearby rails, aerials, equipment and structures that could screen the light. Its replaceable bulb provides a familiar servicing approach, and the moulded housing combines a robust body with an acrylic lens. Matching the complete fitting to the existing installation is still important, particularly where another series has previously been used.

Choosing and using this product

Check the available horizontal mounting area and plan a protected cable route beneath or beside it. Make sure nearby fittings will not screen the light from the directions in which it needs to be seen. Allow practical access for inspection and servicing before choosing the final position or drilling the base. Inspect the view around the whole boat; a clear view from the cockpit alone does not establish an unobstructed all-round installation. Check the bulb rating when keeping spares aboard and inspect the contacts and seal during servicing. If the old light is a different family, compare its mounting arrangement rather than assuming a direct replacement. Isolate the lighting circuit before working on it, use connections appropriate for the marine environment, and check operation before departure. Match the complete installation to the vessel and current local requirements; the product rating alone does not establish that a particular mounting arrangement is suitable.

Product details

  • Product code: RWB8685.
  • Body finish: Black; mounting: base on a horizontal surface.
  • Electrical supply: 12V DC only.
  • Catalogue power rating: 10W conventional bulb.
  • Catalogue dimensions: 70mm high x 63mm wide x 53mm deep.
  • Light function: 360-degree anchor light.
  • Catalogue-listed vessel length: up to 12 metres.
  • Construction: UV-stabilised ABS body, shatter-proof acrylic lens, stainless steel contacts and nitrile rubber seal.
  • Replacement bulb: SP751 for this anchor light.
