Lalizas Classic N12 Boat 135° Stern Navigation Light - Black Vertical Mount RWB8683

$22.58 each
Brand: LALIZAS Marine Safety Equipment & Accessories

+
–
The add to cart button will appear once you select the values above

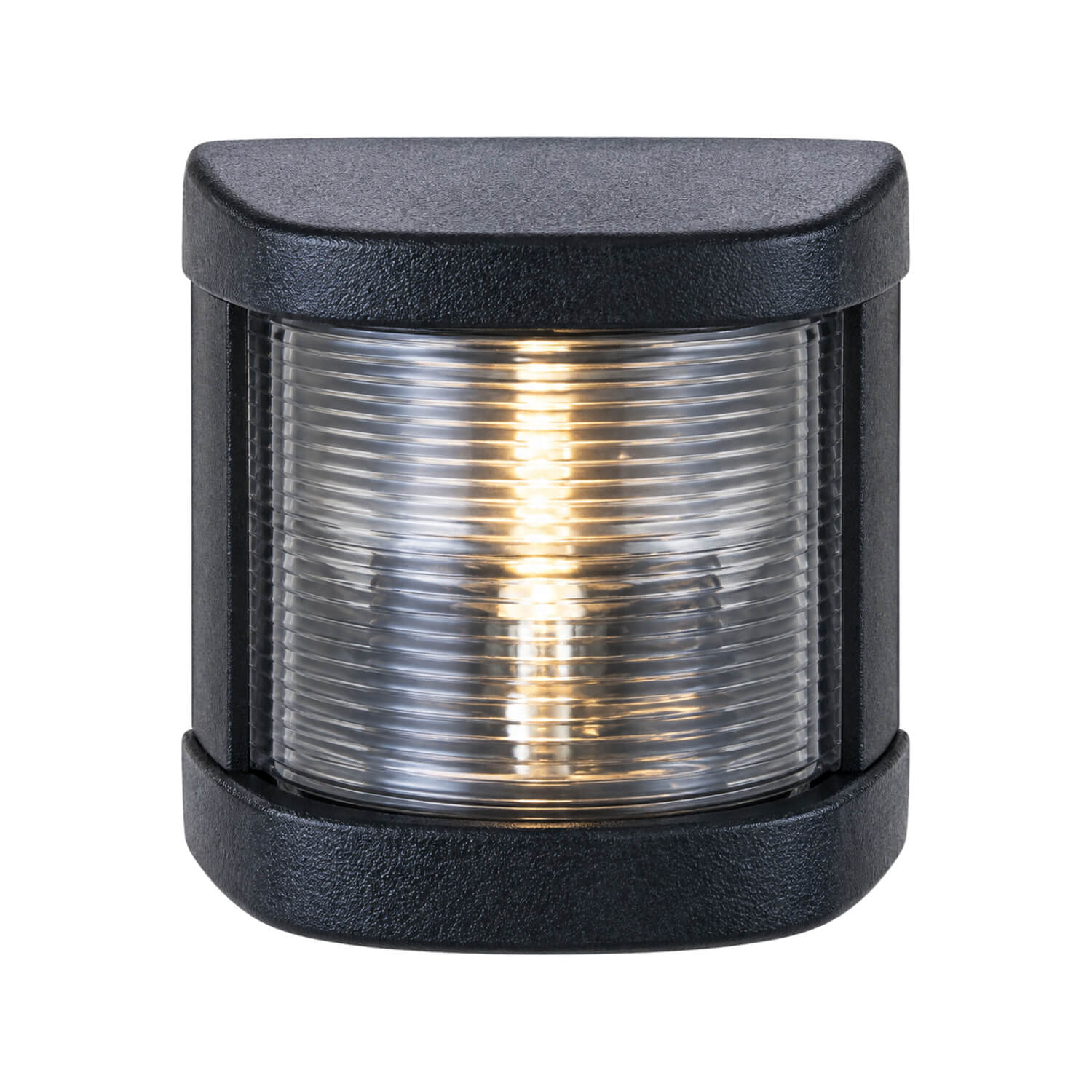

Lalizas Classic N12 Boat 135° Stern Navigation Light - Black Vertical Mount

The Lalizas Classic N12 135° stern light is a conventional-bulb option for maintaining a straightforward marine lighting installation. The stern function provides the aft-facing part of a planned navigation-light arrangement. It is a practical replacement option when the existing rear fitting has become damaged or its mounting position is being revised. Choosing the correct light function matters as much as matching the housing colour and available installation space. Its replaceable bulb provides a familiar servicing approach, and the moulded housing combines a robust body with an acrylic lens. Matching the complete fitting to the existing installation is still important, particularly where another series has previously been used.

Choosing and using this product

Offer the fitting up to the intended upright surface before drilling. Check that the body can sit squarely, that the cable can pass into a protected route, and that nearby trim will not interfere with the lens. Do not assume that an old screw pattern will suit a different light family. Inspect the aft view with normal covers and equipment in place, and keep the intended sector clear of obstructions. Check the bulb rating when keeping spares aboard and inspect the contacts and seal during servicing. If the old light is a different family, compare its mounting arrangement rather than assuming a direct replacement. Isolate the lighting circuit before working on it, use connections appropriate for the marine environment, and check operation before departure. Match the complete installation to the vessel and current local requirements; the product rating alone does not establish that a particular mounting arrangement is suitable.

Product details

  • Product code: RWB8683.
  • Body finish: Black; mounting: vertical.
  • Electrical supply: 12V DC only.
  • Catalogue power rating: 10W conventional bulb.
  • Catalogue dimensions: 70mm high x 63mm wide x 53mm deep.
  • Light function: 135-degree stern sector.
  • Catalogue-listed vessel length: up to 12 metres.
  • Construction: UV-stabilised ABS body, shatter-proof acrylic lens, stainless steel contacts and nitrile rubber seal.
  • Replacement bulb: SP750 festoon for this light.
