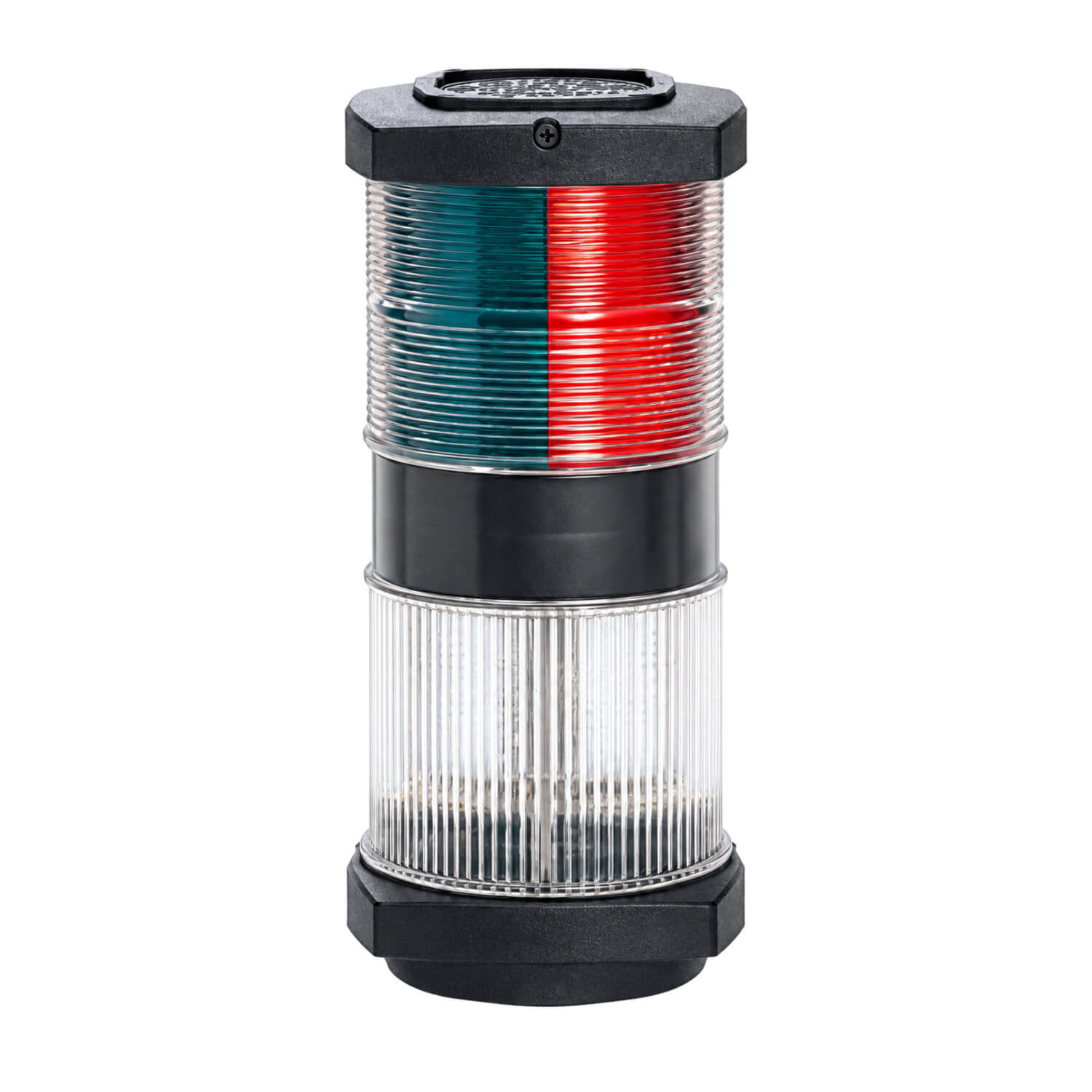

Lalizas Classic LED 20 Boat Tri-White Navigation Light - Black Base Mount RWB8699

Lalizas Classic LED 20 Boat Tri-White Navigation Light - Black Base Mount

The Lalizas Classic LED 20 tri-white light combines the familiar Classic-series format with LED lighting. This combined fitting brings the port, starboard, stern and all-round anchor functions into one housing. It is worth considering where the lighting plan calls for both the navigation sectors and an anchor-light option at the same location. Planning the switching and cable arrangement is particularly important so that the intended function can be selected clearly. This range uses the same size and screw-hole pattern as the corresponding conventional-bulb Classic series, which is useful when assessing a refit. The replaceable light source also gives you a defined spare to identify during maintenance rather than choosing a generic bulb by appearance.

Choosing and using this product

Check the available horizontal mounting area and plan a protected cable route beneath or beside it. Make sure nearby fittings will not screen the light from the directions in which it needs to be seen. Allow practical access for inspection and servicing before choosing the final position or drilling the base. Check the orientation of the navigation sectors and test the anchor function separately using the switching arrangement specified for the fitting. When replacing an earlier Classic light, inspect the old mounting surface and wiring as well as comparing the screw positions. Keep the correct series and spare-bulb reference with the boat’s maintenance information. Isolate the lighting circuit before working on it, use connections appropriate for the marine environment, and check operation before departure. Match the complete installation to the vessel and current local requirements; the product rating alone does not establish that a particular mounting arrangement is suitable.

Product details

• Product code: RWB8699.
• Body finish: Black; mounting: base on a horizontal surface.
• Electrical supply: 12V or 24V DC.
• Catalogue power rating: 4W BAY15D LED bulb.
• Combined functions: port, starboard, stern and 360-degree anchor.
• Catalogue-listed vessel length: up to 20 metres.
• Construction: UV-stabilised ABS body, shatter-proof acrylic lens, stainless steel contacts and nitrile rubber seal.
• Catalogue claims up to 80% lower power use than conventional-bulb navigation lights.
• LED rated for up to 50,000 hours; replacement/retrofit bulb reference SP862.
