Jabsco Marine Searchlight Kit, 24V 175mm Chrome Brass, 62040-4006, J60-112 J60-112

$3,360.21 each
Brand: Jabsco Marine Pumps, Toilets & Spare Parts

+
–
The add to cart button will appear once you select the values above

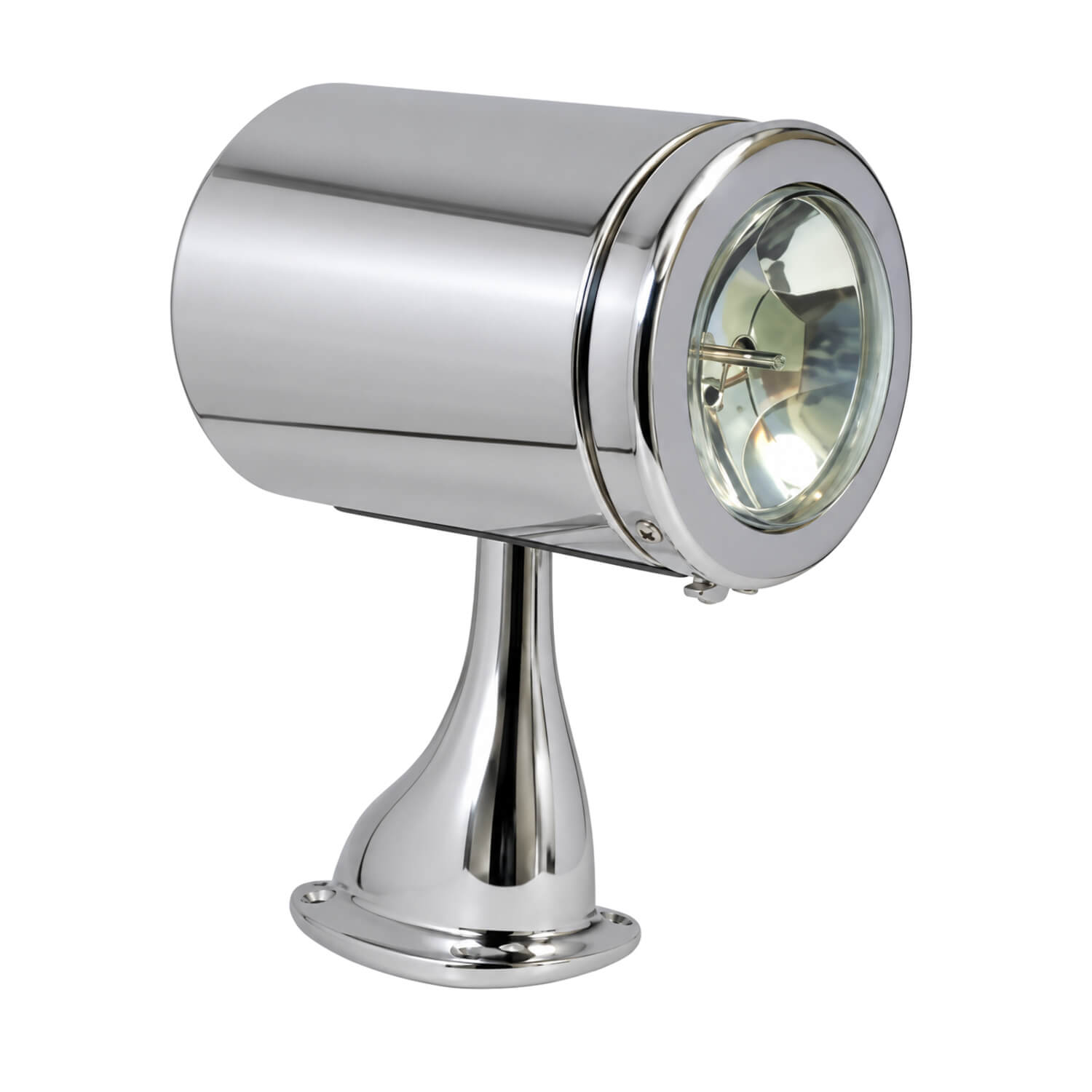

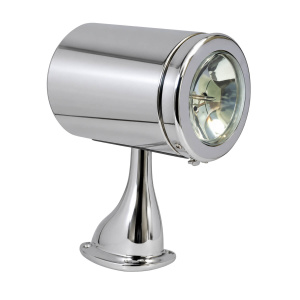

Jabsco Marine Searchlight Kit, 24V 175mm Chrome Brass, 62040-4006, J60-112

This Jabsco searchlight kit provides a fixed marine lighting installation with beam direction controlled from a separate panel. It is intended for an operator who needs to aim a focused light without reaching the lamp itself. The housing, control panel and connecting cable should be considered as one layout: the light needs a clear view of the area ahead, while the controls need to be convenient at the helm. Select the exact voltage and model rather than relying on a similar appearance elsewhere in the Jabsco range.

Choosing and using this product

Measure the planned cable route between the light and control panel before installation, allowing for bends, supported runs and service access. Check the full movement of the lamp against rails, covers and nearby equipment; the mounting footprint alone does not describe the space needed while aiming. Position the beam to minimise reflections from windscreens and pale deck surfaces. The catalogue’s range figure is a guide under suitable conditions, not a promise that every object can be recognised at that distance in rain, mist or spray. Match the circuit and protection to the exact model and follow the installation instructions for wiring and sealing. If replacing an existing Jabsco unit, compare the manufacturer’s part number, voltage and control arrangement before assuming the existing harness can be reused. Test switching and directional movement from the normal helm position. Direct the beam with care near other vessels and people, and keep normal navigation lighting and lookout arrangements in use.

Product details

  • Jabsco model: 62040-4006; RWB catalogue code: J60-112.
  • Electrical system: 24V; specified fuse rating: 10A.
  • Lamp diameter: 175mm (7 inches).
  • Spot-only halogen beam; catalogue intensity: 230,000 candlepower.
  • Catalogue spot range: 418m.
  • Triple chrome-plated brass construction with enclosed motorised clutch and gear drive.
  • Movement: 450-degree horizontal rotation and 70-degree vertical sweep.

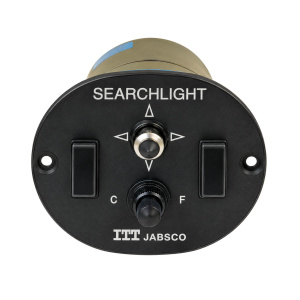

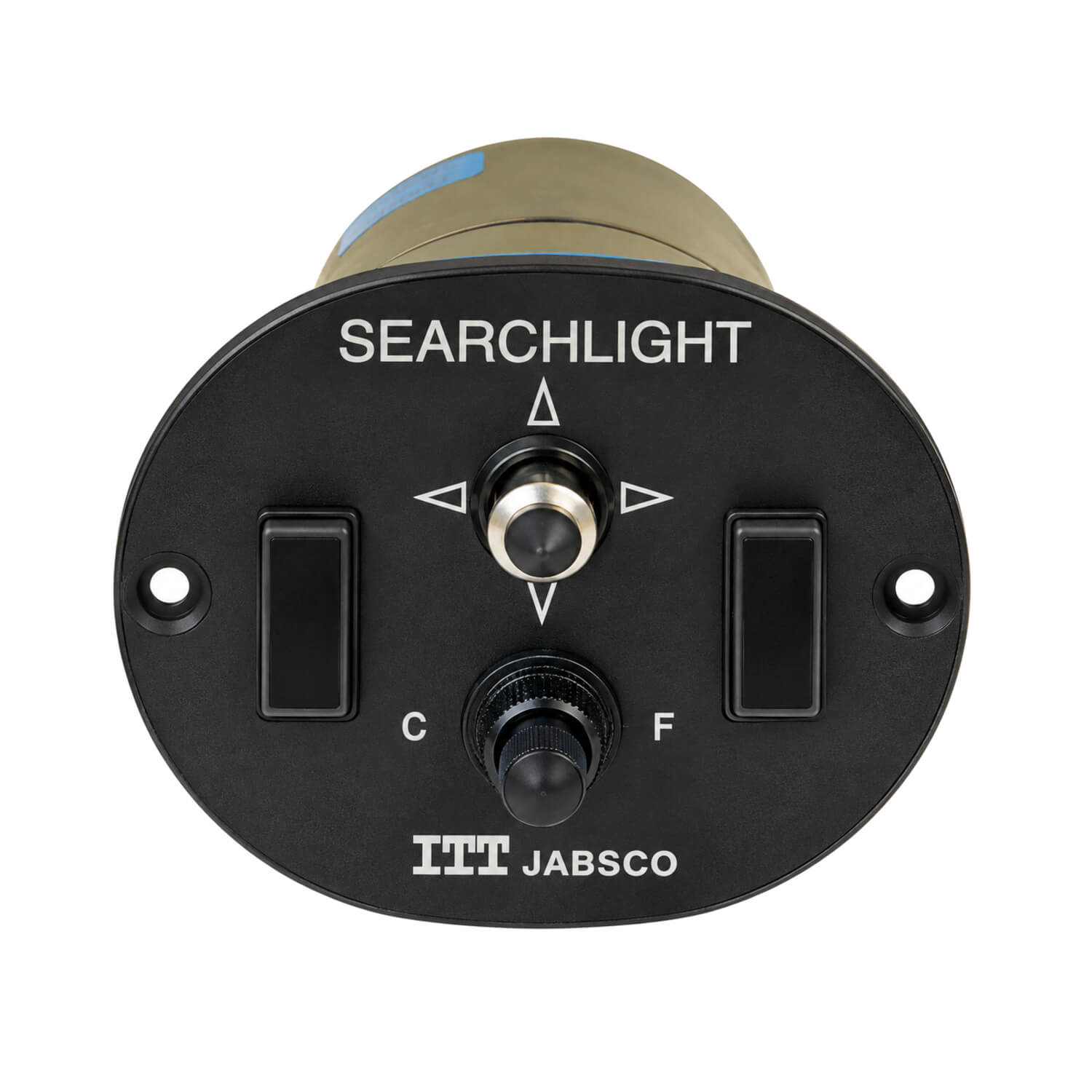

  • Supplied with water-resistant remote control panel and 2.5m (8ft) wiring cable.
