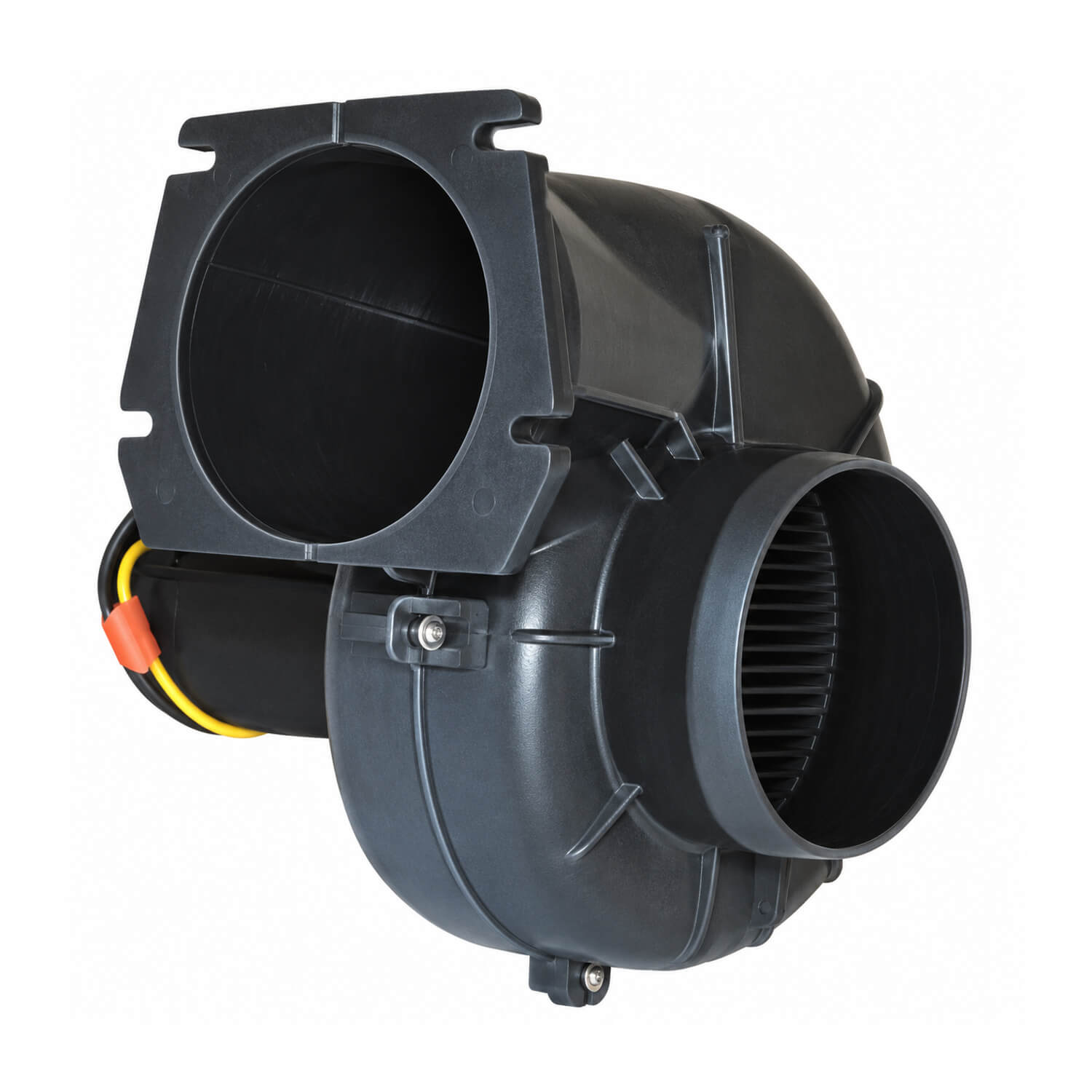

Jabsco Extra Heavy Duty Marine Bilge Blower - 24V Flange Mount, 250 CFM J70-203

$615.04 each
Brand: Jabsco Marine Pumps, Toilets & Spare Parts

+
–
The add to cart button will appear once you select the values above

This 24V Jabsco extra heavy duty blower is intended for frequently used or commercial engine-room ventilation, combining 250 CFM capacity with a long-life motor and flange mounting for 100mm ducting.

Long-life motor rated for a minimum 5,000-hour motor life, for commercial or frequently used engine-room ventilation. Operating cycle is 1 hour on, then approximately 20 minutes off, depending on ambient temperature.

  • Hose size: 100mm
  • Airflow: 250 CFM (7.1 cubic metres/minute)
  • Voltage: 24V
  • Current: 6A
  • Mounting: flange

The flange mount arrangement should be considered alongside the available mounting surface and duct route. Check the position of the ventilation opening and the space around the blower before committing to a layout. A practical installation should leave access for inspecting the hose connection and attending to the motor when required.

When selecting J70-203, check that the boat supplies 24V at the intended circuit and that the connected blower hose is 100mm. Treat airflow, electrical requirements and mounting format as separate selection checks. For a replacement, compare these details with the existing installation instead of relying on the appearance of the old blower.

Plan the complete air path, including where replacement air enters and where extracted air is discharged. Keep ducting supported and avoid unnecessary restrictions or sharp bends. These are installation considerations that can affect how a ventilation system performs once fitted; the listed blower capacity is only one part of choosing an appropriate arrangement.

The minimum motor-life rating is useful for comparing equipment intended for regular service, but the stated cooling cycle still applies. Allow approximately twenty minutes off after an hour of operation, with ambient temperature taken into account. For installation and operation, follow the blower instructions and the boat builder’s ventilation guidance.

For a commercial boat with a 24V system, review the flange location alongside the intended engine-room intake or extraction route. During a refit, settle the mounting access and duct clearances before adjacent equipment is returned to its final position.
