Jabsco 135SL Marine Searchlight Kit, 12V Standard Panel, Model 60020-0000 J60-100

$657.02 each
Brand: Jabsco Marine Pumps, Toilets & Spare Parts

+
–
The add to cart button will appear once you select the values above

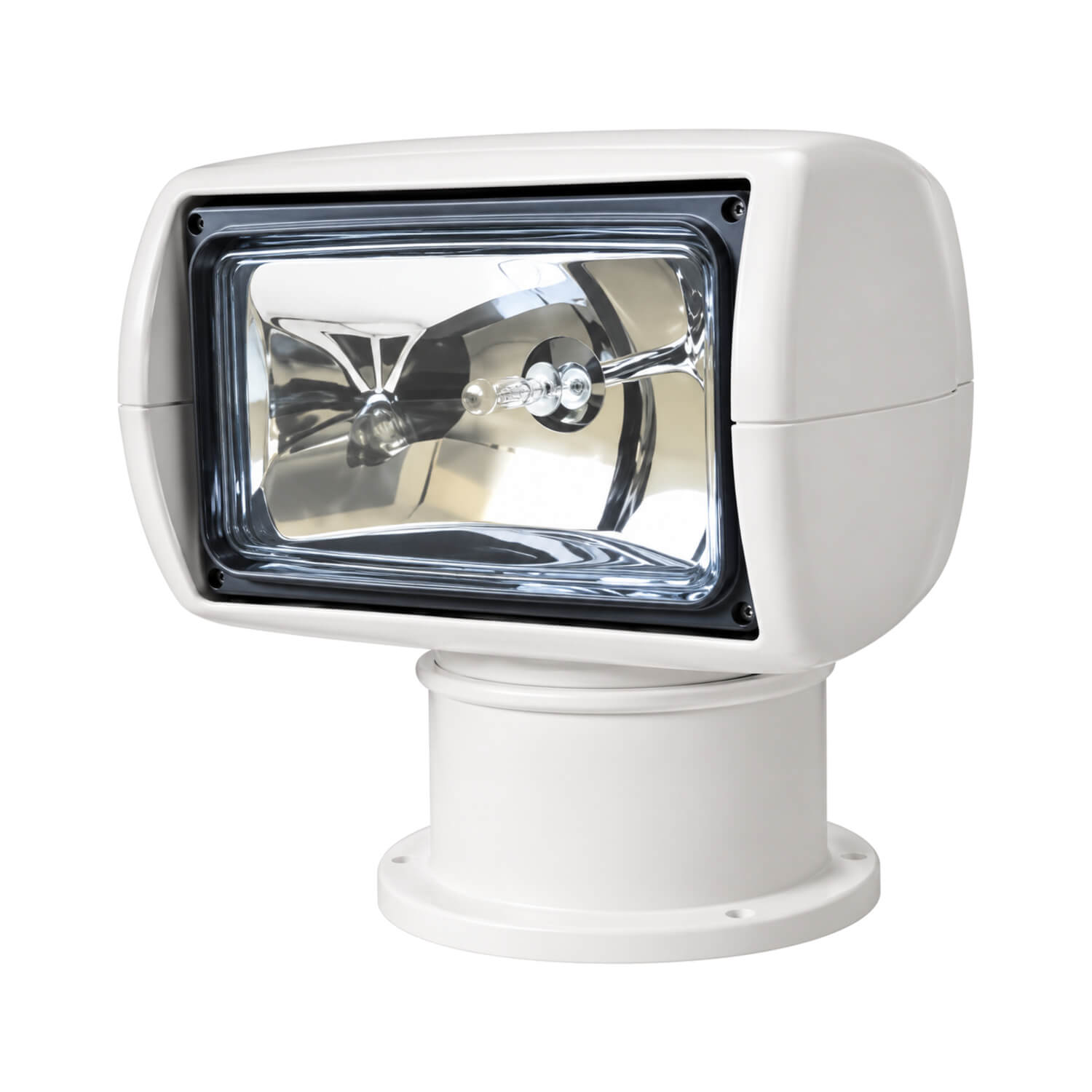

Jabsco 135SL Marine Searchlight Kit, 12V Standard Panel, Model 60020-0000

The 135SL kit is a remotely aimed searchlight for small to medium-sized boats. This is the standard-panel version, making it important to match the control arrangement as well as the light itself when replacing an older installation. Its white housing offers a different finish from the chrome-brass Jabsco kits, and the complete kit provides the lamp, panel and cable needed to plan the main system layout. The standard control arrangement should be selected deliberately when comparing complete kits, particularly where the boat already has a panel opening and a fixed cable route.

Choosing and using this product

Measure the planned cable route between the light and control panel before installation, allowing for bends, supported runs and service access. Check the full movement of the lamp against rails, covers and nearby equipment; the mounting footprint alone does not describe the space needed while aiming. Position the beam to minimise reflections from windscreens and pale deck surfaces. The catalogue’s range figure is a guide under suitable conditions, not a promise that every object can be recognised at that distance in rain, mist or spray. Match the circuit and protection to the exact model and follow the installation instructions for wiring and sealing. If replacing an existing Jabsco unit, compare the manufacturer’s part number, voltage and control arrangement before assuming the existing harness can be reused. Test switching and directional movement from the normal helm position. Direct the beam with care near other vessels and people, and keep normal navigation lighting and lookout arrangements in use.

Product details

  • Jabsco model: 60020-0000; RWB catalogue code: J60-100.
  • Electrical supply: 12V; catalogue current draw: 3.6A.
  • Halogen sealed-beam output: 100,000 candlepower.
  • Catalogue useful-detail range: 262m.
  • Weather-resistant white thermoplastic housing.
  • Motorised clutch and gear drive with 320-degree horizontal movement and 75-degree vertical sweep.

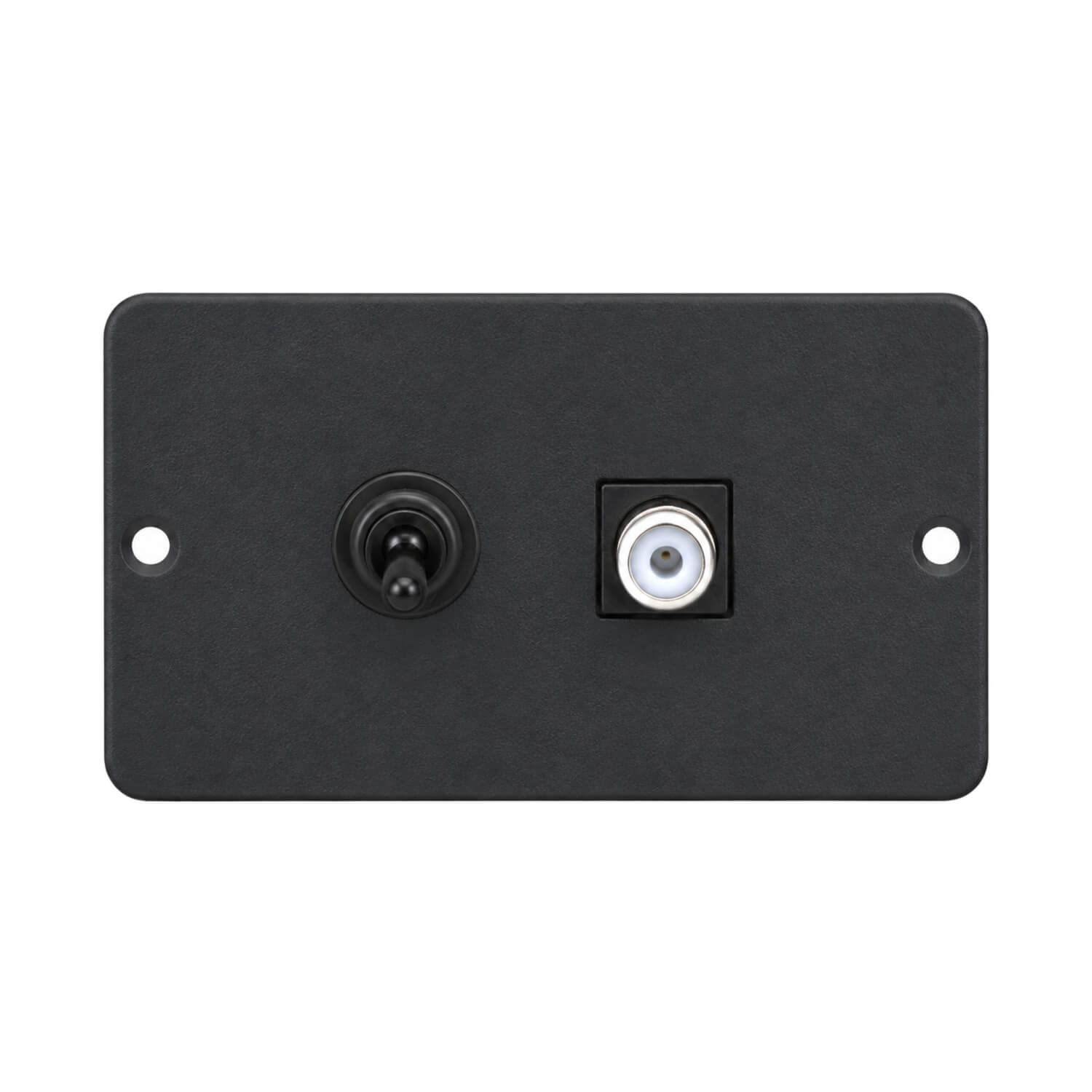

  • Supplied with standard remote switch panel and 4.5m wiring cable.
