In-Line Rubber Marine Power Plug and Socket - 2-Pin, 12/24V, 30 x 40mm RWB2866

$16.18 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

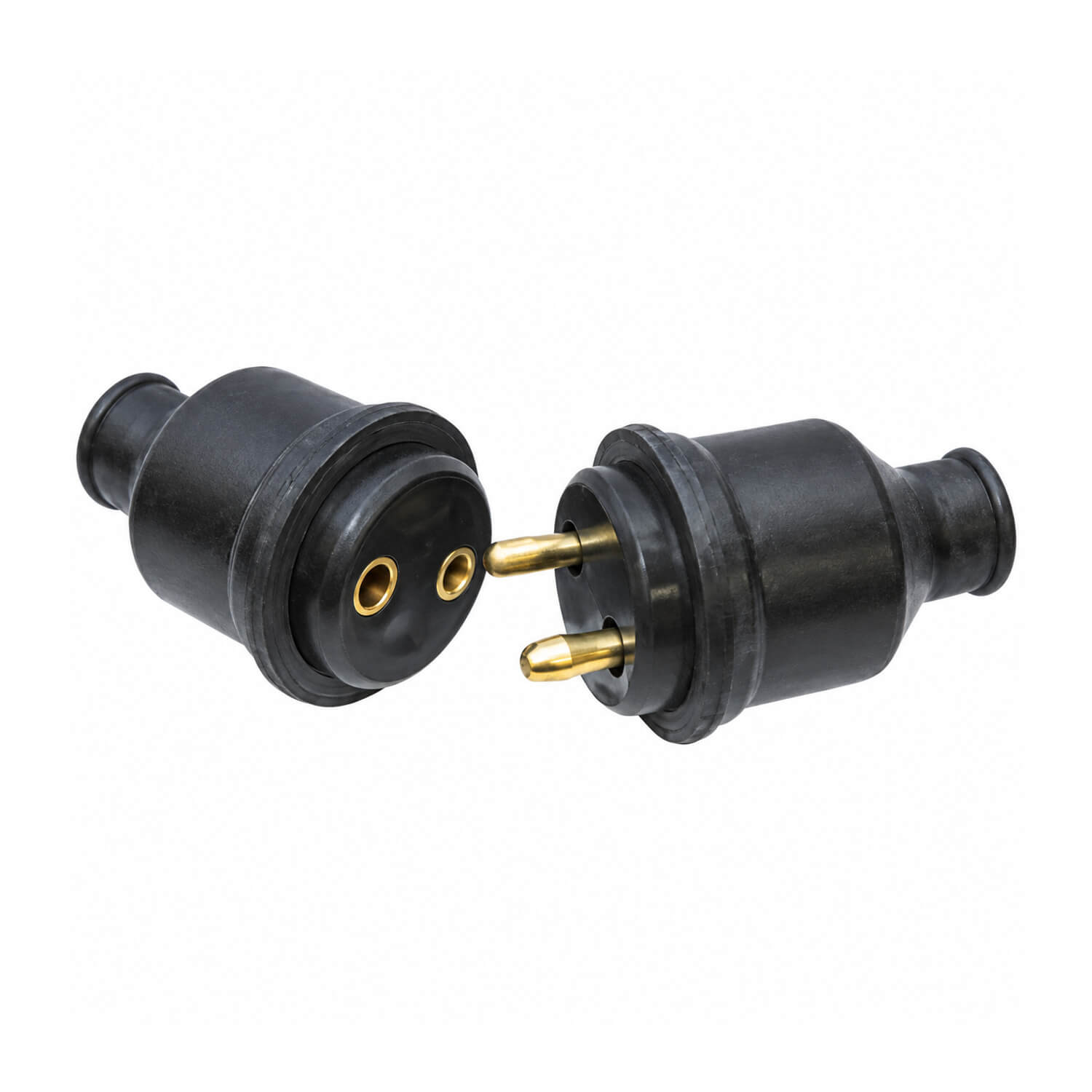

Moulded rubber capped connector set with brass bullet-type pins.

  • Pins: 2
  • Size: 30 x 40mm
  • Maximum rating: 15A at 12V or 7.5A at 24V

A detachable connector is useful where low-voltage equipment needs to be removed for storage or maintenance while the main wiring remains in place. Plan the connection around the appliance voltage, operating current and required number of conductors. The mating parts and contact layout need to match the intended installation, especially when replacing only one half of an existing connection.

Before fitting, identify each wire and make a simple record of the contact assignment. As general electrical guidance, isolate the supply, confirm polarity and terminate the conductors according to the connector instructions. The physical contact arrangement assists correct mating, but the wiring still needs to be checked before power is applied. Support the cable so handling loads are not transferred directly to the electrical terminals.

Choose a position where the connector can be reached without pulling on the lead. Allow room to separate the two parts and store the detached equipment, while keeping the cable clear of walkways, moving controls and sharp edges. Check the complete circuit rating, including supply wiring and protective devices, before connecting the intended load.

After assembly, inspect the terminations and verify the connection before normal use. During routine boat checks, look for damaged insulation, loosened fittings or contamination around the contacts. Keep mating surfaces clean and disconnect by handling the connector bodies rather than tugging the cable. A clearly identified connection makes later fault-finding and equipment removal simpler, particularly where several similar leads are fitted close together.

The in-line rubber format is useful where the detachable joint belongs within a cable run. Its rating changes with supply voltage: assess the intended load against 15A at 12V or 7.5A at 24V, as appropriate.

Allow space around the 30 x 40mm connector body for comfortable handling when separating the lead.
