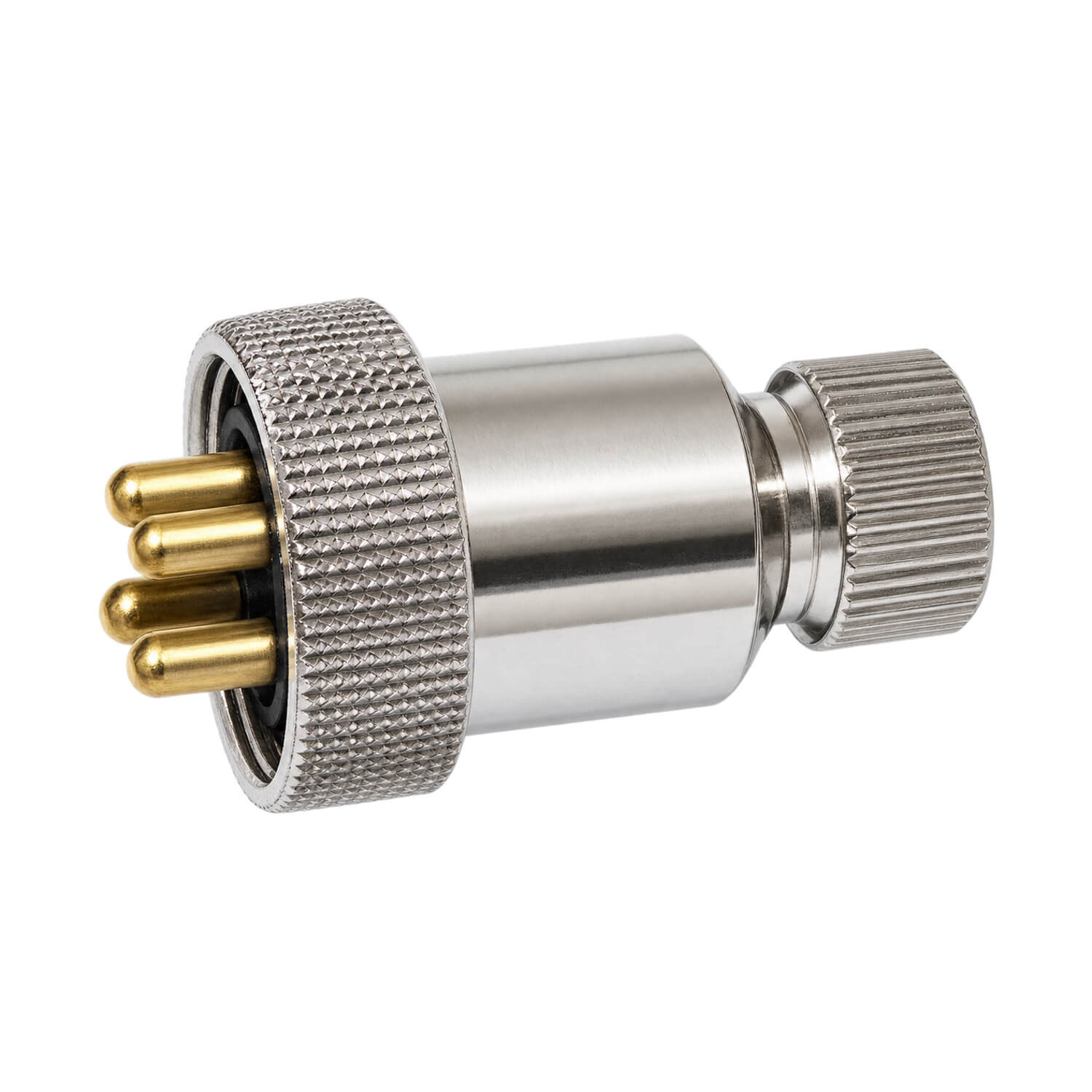

Chrome Brass Screw-Apart Marine Power Connector - 4-Pin Complete Set, 12/24V, 3A RWB1780

$26.93 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

Chrome-plated brass electrical connector with unequal contact-hole sizes to prevent reversed polarity. Includes plug, socket, base seal, retainer chain and socket cover.

  • Voltage: 12V or 24V
  • Rating: 3A
  • Pins: 4
  • Includes plug and socket

A detachable connector is useful where low-voltage equipment needs to be removed for storage or maintenance while the main wiring remains in place. Plan the connection around the appliance voltage, operating current and required number of conductors. The mating parts and contact layout need to match the intended installation, especially when replacing only one half of an existing connection.

Before fitting, identify each wire and make a simple record of the contact assignment. As general electrical guidance, isolate the supply, confirm polarity and terminate the conductors according to the connector instructions. The physical contact arrangement assists correct mating, but the wiring still needs to be checked before power is applied. Support the cable so handling loads are not transferred directly to the electrical terminals.

Choose a position where the connector can be reached without pulling on the lead. Allow room to separate the two parts and store the detached equipment, while keeping the cable clear of walkways, moving controls and sharp edges. Check the complete circuit rating, including supply wiring and protective devices, before connecting the intended load.

After assembly, inspect the terminations and verify the connection before normal use. During routine boat checks, look for damaged insulation, loosened fittings or contamination around the contacts. Keep mating surfaces clean and disconnect by handling the connector bodies rather than tugging the cable. A clearly identified connection makes later fault-finding and equipment removal simpler, particularly where several similar leads are fitted close together.

The four-pin complete set provides a matching plug and socket for an installation needing that contact arrangement. Plan and label all four conductor positions before assembly, and keep the supplied socket cover and retainer chain accessible in the finished location.
