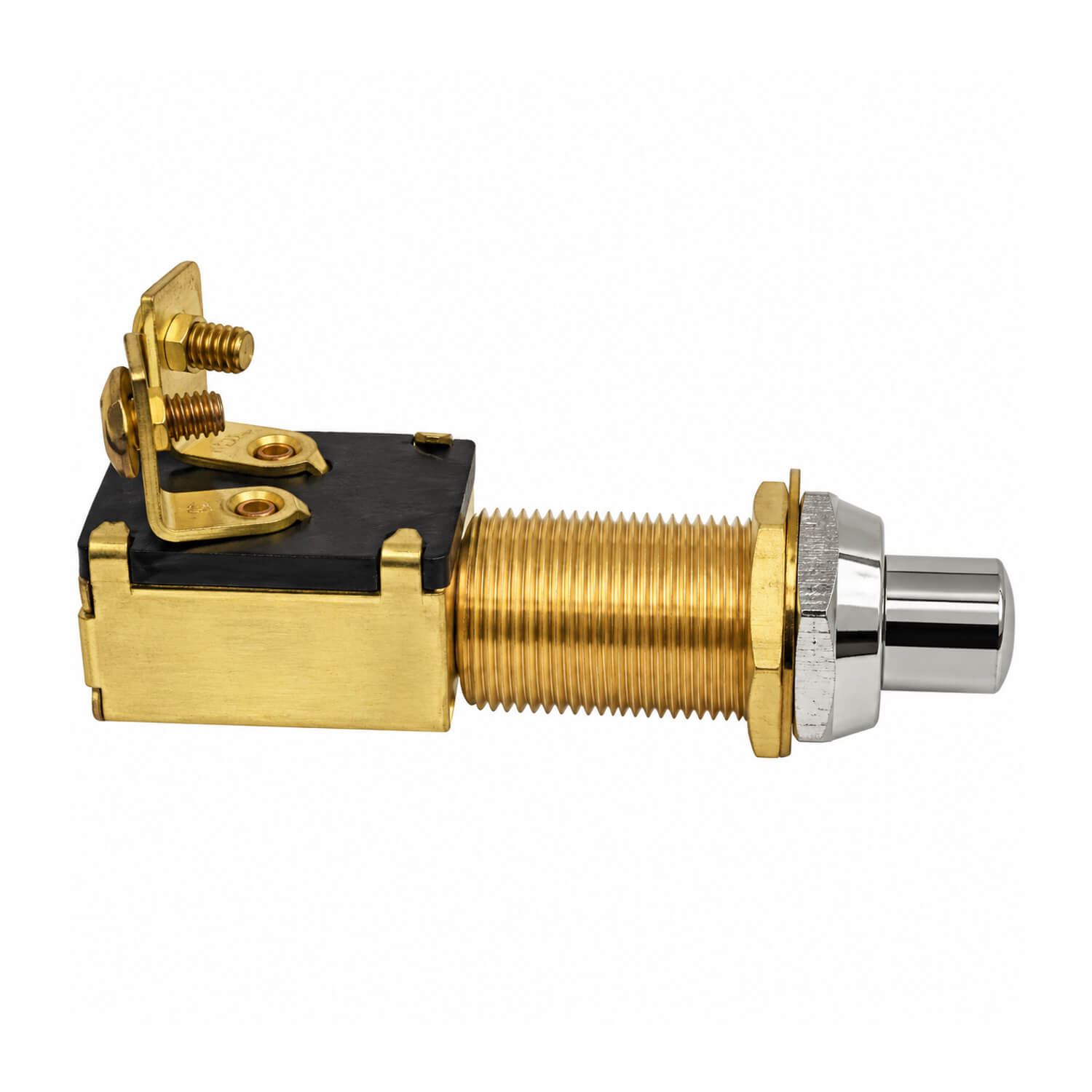

Brass Momentary Marine Starter and Horn Switch - Chrome Knob, 25A, 12/24V RWB1303

$23.11 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

Momentary push operation makes this brass switch a candidate for a compatible horn or starter control circuit. The chrome-plated knob and bezel suit a dashboard layout that uses bright metal fittings. Place it within deliberate reach while reducing the chance of accidental contact. Match the actual control circuit to the 25A rating, and check the 16mm shaft stem and 22mm maximum dash thickness before preparing the mounting point.

Momentary push switch with brass construction for starter or horn operation.

  • Rating: 25A
  • Voltage: 12V or 24V
  • Chrome-plated knob and bezel
  • Maximum dash thickness: 22mm
  • Shaft stem diameter: 16mm

For a replacement, compare the original switch's operating action, electrical rating and mounting arrangement before choosing the new part. A similar appearance alone does not establish that the wiring arrangement matches. For a new installation, identify the equipment being controlled and check its normal current, starting demand where relevant, and required switching function. Use a suitably qualified marine electrical installer if the circuit requirements are uncertain.

Plan the mounting position around everyday operation. The control should be easy to reach and identify, with enough space around it for deliberate use. Check behind the dashboard for cables, structure and other instruments before drilling. Allow room for terminals and cable bends, and support the wiring so its weight and movement do not pull on the switch connections.

Isolate the relevant supply before installation and label existing wires before disconnecting them. Use cable and circuit protection selected for the complete installation, then secure and protect all connections appropriately. Once fitted, test the intended function under controlled conditions and make sure the control is clearly identified for other people aboard.

For ongoing care, include the control in routine electrical inspections. Check for looseness, damaged insulation or a change in operating feel, and investigate any unreliable function before continued use. Keep the surrounding area clear so the switch can be operated deliberately and its label remains visible.
