Bluefin Marine Mains Power Upgrade Box 100-240V AC to 24V DC Boat Lights RWB6351

$554.14 each
Brand: Bluefin LED Underwater Boat Lighting

+
–
The add to cart button will appear once you select the values above

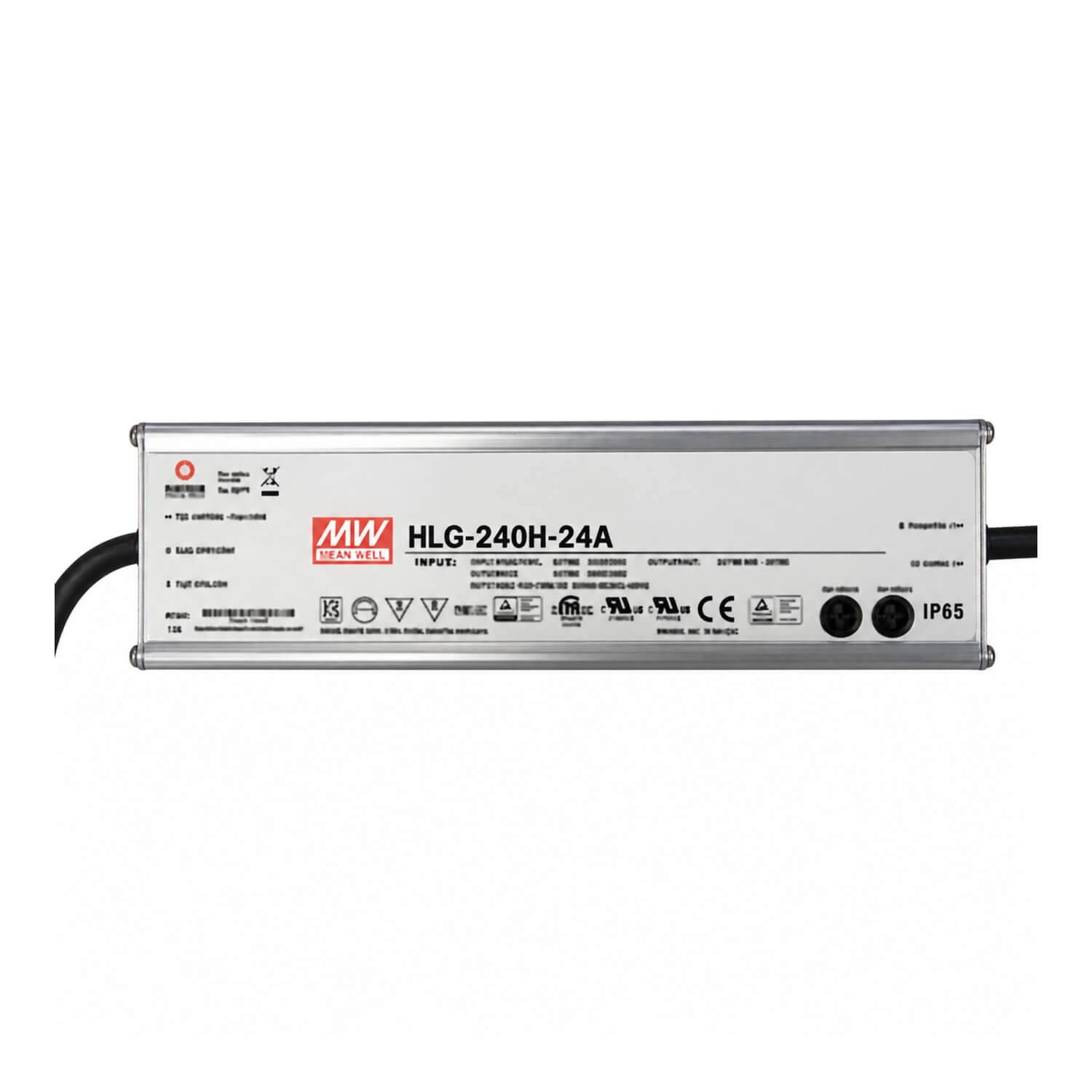

Bluefin Marine Mains Power Upgrade Box 100-240V AC to 24V DC Boat Lights

The Bluefin mains power upgrade box supplies compatible 24V Bluefin LED lights from an AC power source. It is a power-conversion accessory for a lighting installation, rather than a replacement light or an underwater fitting. The published description identifies conversion from a nominal mains-input range to a 24V DC output, together with built-in electrical protection and a dimming function. This makes the power source a separate design decision from the choice of light colour or hull fitting. The complete installation must still match the connected lamps and the available AC supply, with the power unit positioned and wired for its intended service.

Choosing and using this product

Have the mains side assessed and installed by an appropriately qualified electrician. Before selecting the unit for a group of lights, confirm its current production input limits, rated output capacity and wiring requirements from the product label or current installation instructions. The supplier description lists both a nominal input range and a broader universal-input range, so those figures should be resolved rather than treated as interchangeable wiring specifications. Add the demand of all connected lights and check the required allowance with the installer; a voltage match alone does not establish sufficient power capacity. Choose an accessible mounting position that satisfies the manufacturer’s environmental and ventilation requirements. Keep AC and low-voltage wiring organised, and use suitable circuit protection and connection methods. If dimming is required, confirm the compatible control method before connecting external controls. After installation, test the lighting system under its intended load and retain the power-unit model information with the boat’s electrical documentation. Inspect the enclosure and connections during routine maintenance, without opening or working on an energised mains circuit.

Product details

  • Product code: RWB6351; Bluefin mains power upgrade box.
  • Intended load: compatible 24V Bluefin LED lights.
  • Published nominal conversion: 100-240V AC input to 24V DC output.
  • Protection functions: short circuit, over-current, over-voltage and over-temperature.
  • Three-in-one dimming function.
  • Ingress protection: IP65.
