Black Bakelite Marine Switch Panel with Splashproof Boots - 6 Switches, 12/24V RWB2089

$44.69 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

Six switches provide room for a broader accessory layout while retaining the black bakelite appearance. The weatherproof neoprene boots are relevant when comparing this model with a standard exposed-toggle panel. Allow space for the 163 H x 113mm W face and service access to the screw-in fuse holders. Arrange the labels consistently and check each intended load against the supplied 5A fuse and the installation's wiring requirements.

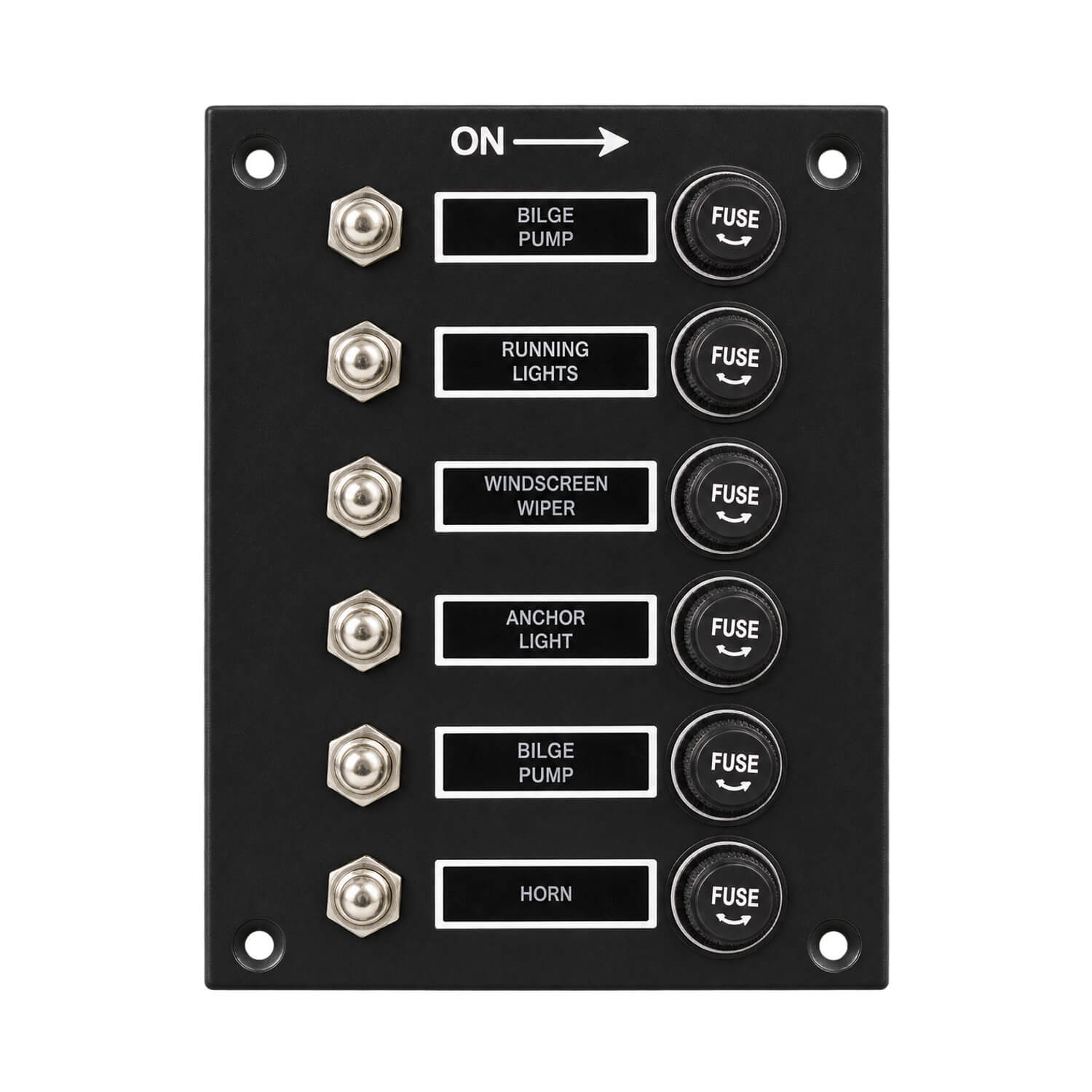

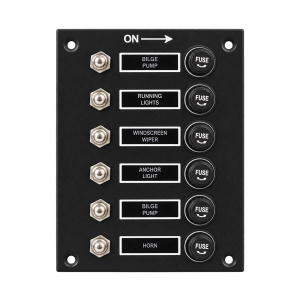

Fully wired black bakelite panel with weatherproof neoprene switch boots, screw-in fuse holders, 5A fuses and assorted stick-on labels.

  • Voltage: 12V or 24V
  • Fuses: 5A
  • Switches: 6
  • Size: 163 H x 113mm W

For layout planning, list the accessories you want to operate separately, then match each circuit to its electrical load and protection requirements. Cabin lighting, deck lighting and other auxiliary equipment are possible uses where the individual appliance requirements suit the panel. Position frequently used controls where the operator can reach them comfortably without reaching across the wheel or other instruments. Clear circuit identification also makes it easier for another person aboard to find the correct control.

Before cutting the mounting surface, check the actual panel, rear components and cable route together. Allow room to make connections without forcing wires against the panel back, and retain access for inspection and servicing. The stated face dimensions should be used for space planning; confirm the required opening from the product before cutting. Support the cable loom so movement and vibration are not carried by the terminals.

Installation should include correctly sized cable, suitable upstream protection and connections appropriate to the boat's electrical system. Have a suitably qualified installer confirm the arrangement where necessary. After installation, test each circuit individually, label it to match the connected equipment and record the layout for later fault finding.

For ongoing care, inspect the mounting, labels and cable connections during routine electrical checks. Keep the operating area clear of loose gear, and address a loose control, damaged cover or repeated fuse or breaker operation before continued use.
