Alloy Illuminated Marine Six-Switch Panel - Vertical, 12V, 167 x 116mm RWB537B
Choose the vertical layout when the available protected interior mounting area suits an upright six-switch bank. The matt-black alloy face and white printed names provide an organised starting point, with extra labels for adapting names to actual accessories. Five 5A fuses and one 15A fuse are supplied. Any fuse change should follow a check of the wiring and appliance requirements, even though the panel's stated fuse capacity is up to 15A.

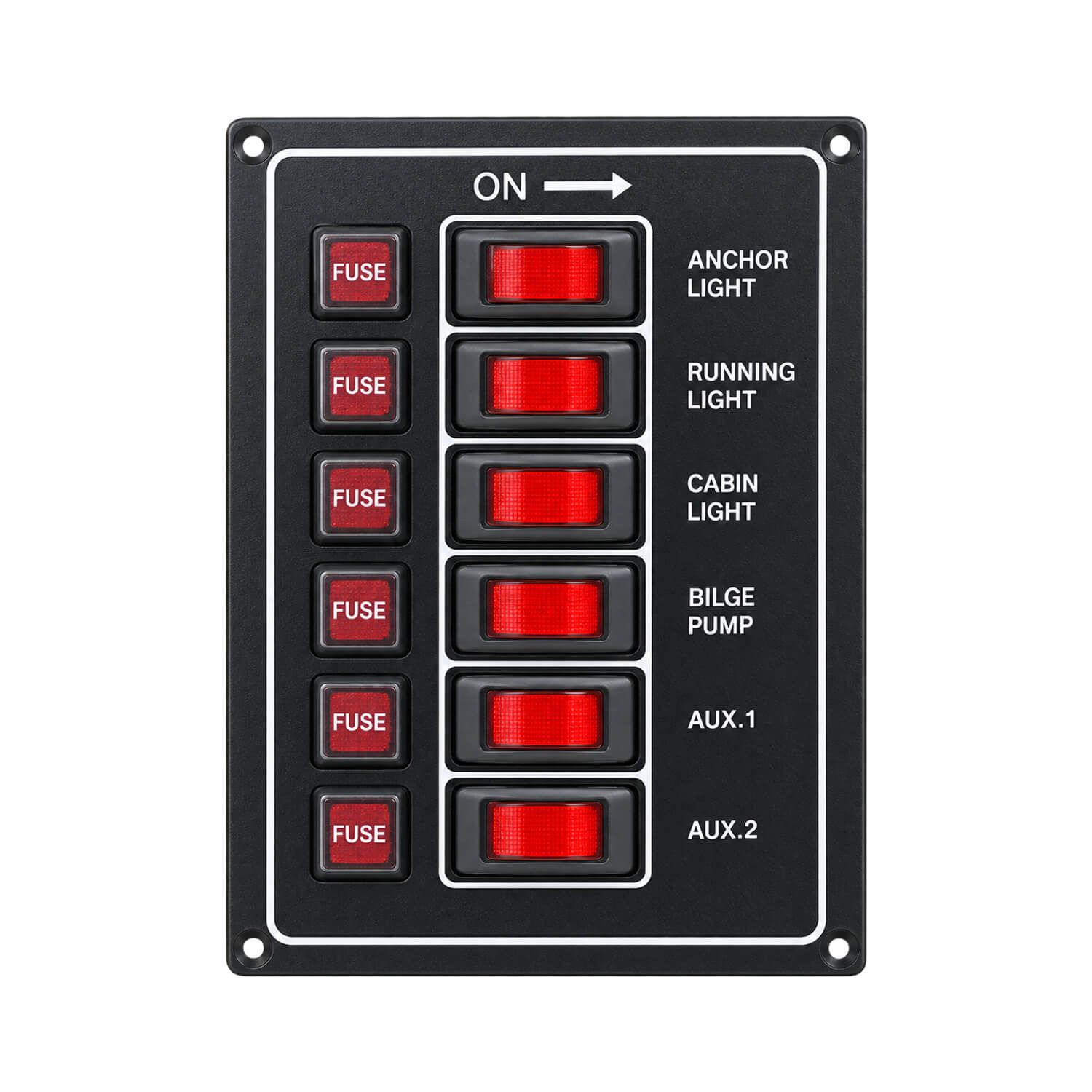

Matt-black aluminium panel with white printed nameplates, bus bar, red illuminated rocker switches and clip-out red-top fuse holders. Fully wired, with an additional assorted label set. Not weatherproof, so not recommended for open-cabin boats.
- Switches: 6
- Voltage: 12V only
- Panel size: 167 x 116mm
- Fuses: five 5A and one 15A
- Fuse capacity: up to 15A
- Mounting: vertical
For layout planning, list the accessories you want to operate separately, then match each circuit to its electrical load and protection requirements. Cabin lighting, deck lighting and other auxiliary equipment are possible uses where the individual appliance requirements suit the panel. Position frequently used controls where the operator can reach them comfortably without reaching across the wheel or other instruments. Clear circuit identification also makes it easier for another person aboard to find the correct control.
Before cutting the mounting surface, check the actual panel, rear components and cable route together. Allow room to make connections without forcing wires against the panel back, and retain access for inspection and servicing. The stated face dimensions should be used for space planning; confirm the required opening from the product before cutting. Support the cable loom so movement and vibration are not carried by the terminals.
Installation should include correctly sized cable, suitable upstream protection and connections appropriate to the boat's electrical system. Have a suitably qualified installer confirm the arrangement where necessary. After installation, test each circuit individually, label it to match the connected equipment and record the layout for later fault finding.
