Alloy Illuminated Marine Six-Switch Panel - Horizontal, 12V, 167 x 116mm RWB2073B

$54.04 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

The horizontal six-switch layout is intended for a sheltered installation where a wider control arrangement suits the dashboard. Its white printed names can be supplemented with the supplied label set to match actual circuit use. Plan around the 167 x 116mm face and keep the clip-out red-top fuse holders serviceable. The supplied combination of five 5A fuses and one 15A fuse should guide the initial allocation of compatible accessory loads.

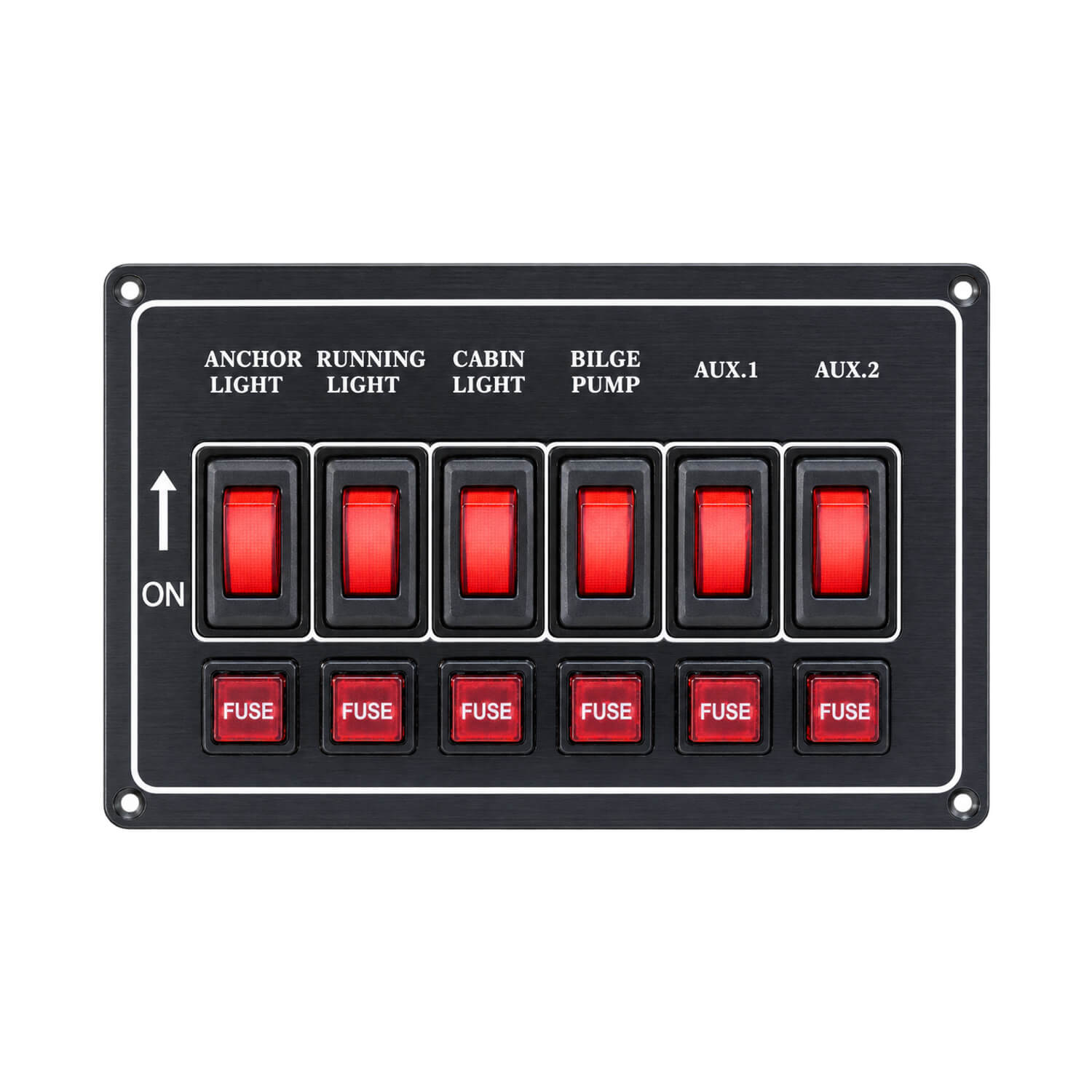

Matt-black aluminium panel with white printed nameplates, bus bar, red illuminated rocker switches and clip-out red-top fuse holders. Fully wired, with an additional assorted label set. Not weatherproof, so not recommended for open-cabin boats.

  • Switches: 6
  • Voltage: 12V only
  • Panel size: 167 x 116mm
  • Fuses: five 5A and one 15A
  • Fuse capacity: up to 15A
  • Mounting: horizontal

For layout planning, list the accessories you want to operate separately, then match each circuit to its electrical load and protection requirements. Cabin lighting, deck lighting and other auxiliary equipment are possible uses where the individual appliance requirements suit the panel. Position frequently used controls where the operator can reach them comfortably without reaching across the wheel or other instruments. Clear circuit identification also makes it easier for another person aboard to find the correct control.

Before cutting the mounting surface, check the actual panel, rear components and cable route together. Allow room to make connections without forcing wires against the panel back, and retain access for inspection and servicing. The stated face dimensions should be used for space planning; confirm the required opening from the product before cutting. Support the cable loom so movement and vibration are not carried by the terminals.

Installation should include correctly sized cable, suitable upstream protection and connections appropriate to the boat's electrical system. Have a suitably qualified installer confirm the arrangement where necessary. After installation, test each circuit individually, label it to match the connected equipment and record the layout for later fault finding.
