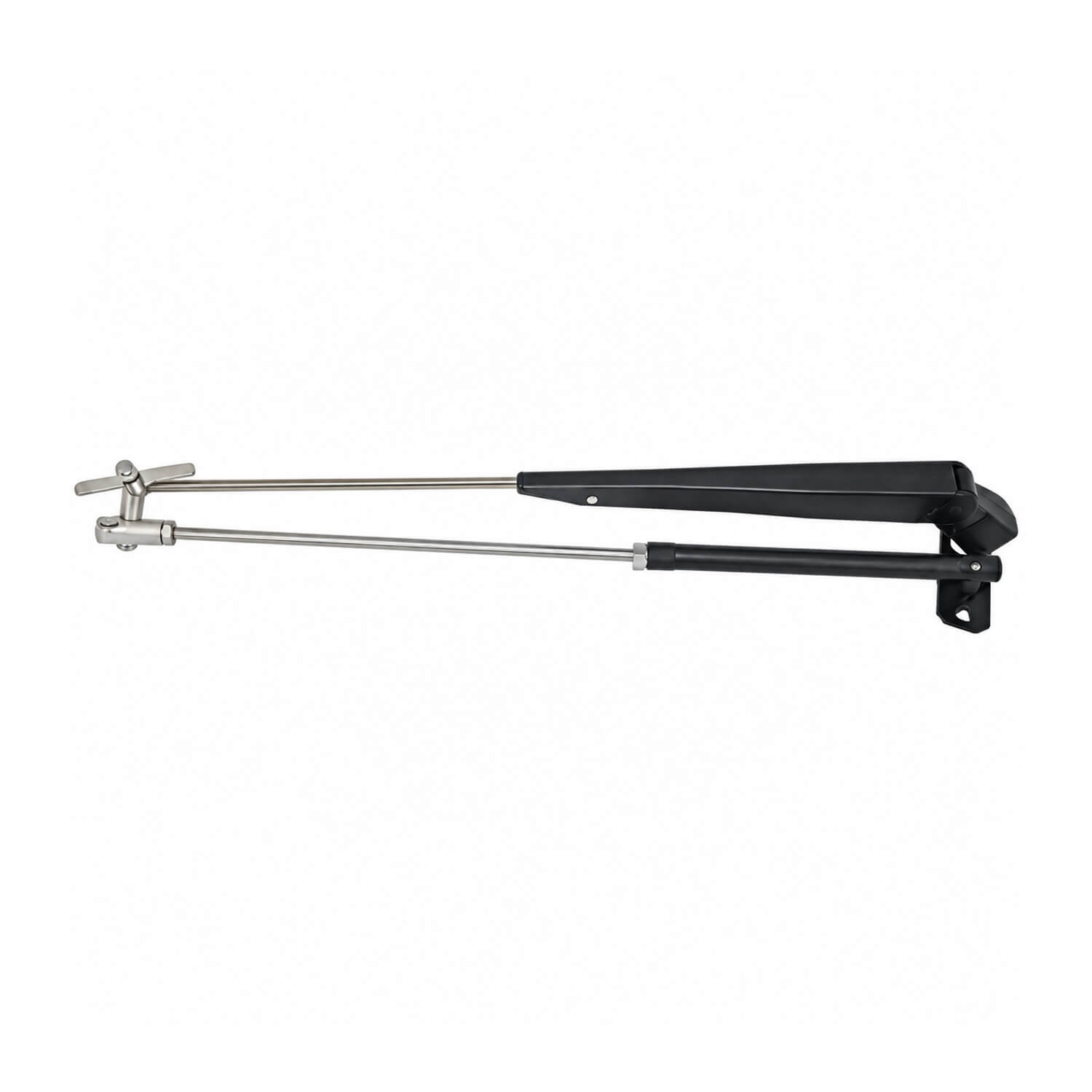

AFI Stainless Pantographic Marine Wiper Arm - Adjustable 425-550mm, Black Finish RWB2856

$162.64 each
Brand: AFI Boat Windscreen Wipers & Accessories

+
–
The add to cart button will appear once you select the values above

Marine-grade stainless steel pantographic arm provides a flat, square sweep. Match arm/blade length to the motor capacity. Requires a motor sweep angle of 80 degrees or less.

  • Adjustable length: 425-550mm
  • Blackened finish to reduce glare

The pantographic layout is useful when planning a wiping pattern across a broad section of windscreen. Its flat, square sweep offers a different blade path from a conventional single arm, so it is worth assessing the actual glass shape and helm sightline before selecting the mounting position. The adjustable length allows the reach to be set within the stated range.

Choose this arm as part of a complete motor, arm and blade combination. The motor capacity must cover the chosen working lengths, and the available sweep must satisfy the pantographic requirement. A physically adjustable arm can reach settings that are unsuitable for a particular motor, so compare the motor specifications with the intended final setup rather than simply choosing the longest setting.

As general installation guidance, lay out the proposed wiping path and check both blade ends against the frame, catches and any adjacent wiper. Establish the motor park position before attaching and aligning the arm. Follow the system instructions for mounting and adjustment, keeping the mechanism clear of obstructions throughout its movement. Isolate the electrical supply whenever working around the moving parts.

After fitting, test on wet glass and observe the full sweep and return to park. Look for consistent blade contact and adequate clearance at each end of travel. Regular cleaning of the windscreen and wiping edge helps remove salt and grit, while periodic inspection of the arm fixings can identify movement before it affects alignment. Recheck the geometry whenever changing blade size or readjusting arm length.

The 425-550mm adjustment range provides the longer black-finished option in this pair. Its reduced-glare surface is useful near the helm viewing area, and the longer settings make checking the motor capacity especially important before selecting a blade.
