AFI 1000 Waterproof Single-Speed Marine Wiper Motor - 12V, 40mm Shaft RWB5806

$476.20 each
Brand: AFI Boat Windscreen Wipers & Accessories

+
–
The add to cart button will appear once you select the values above

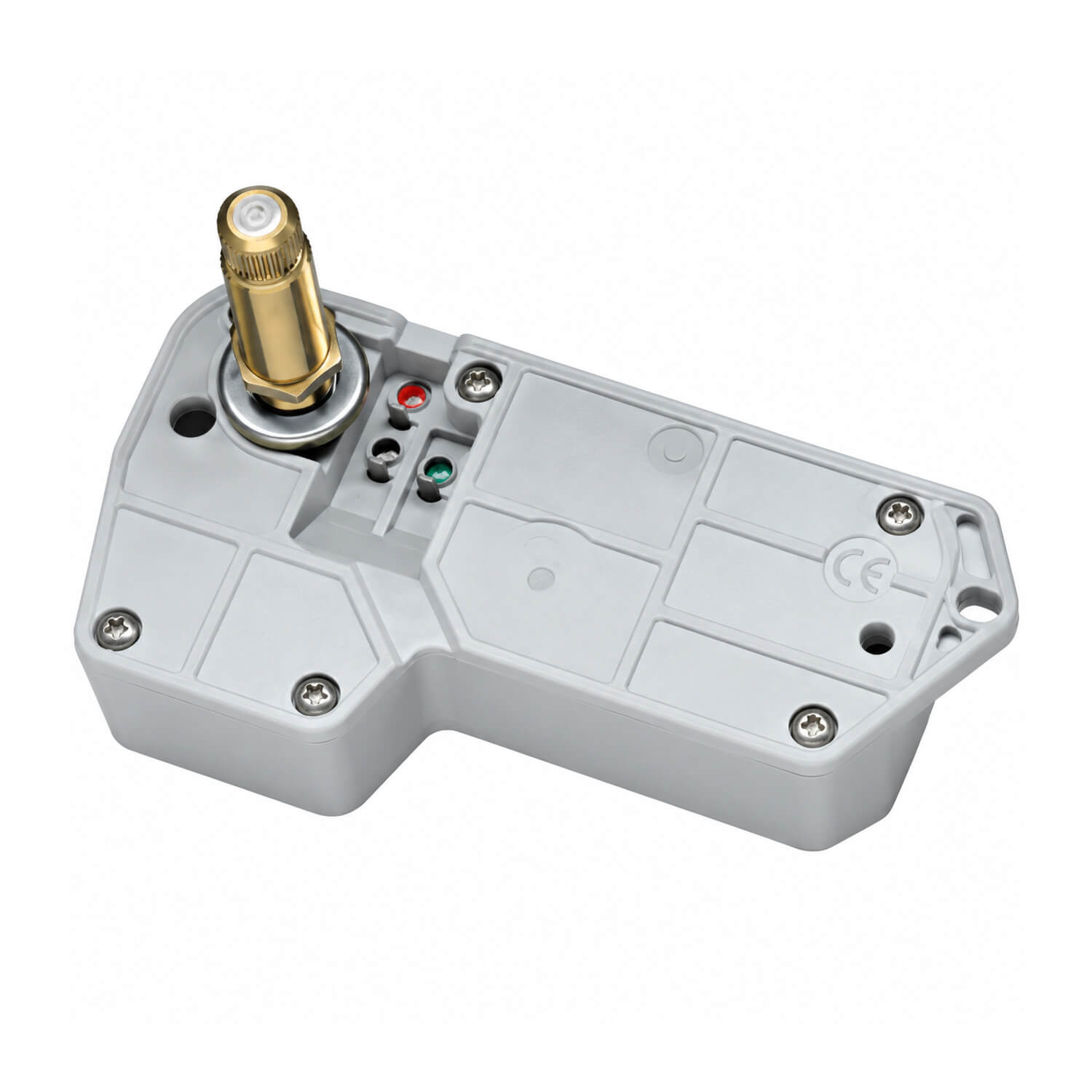

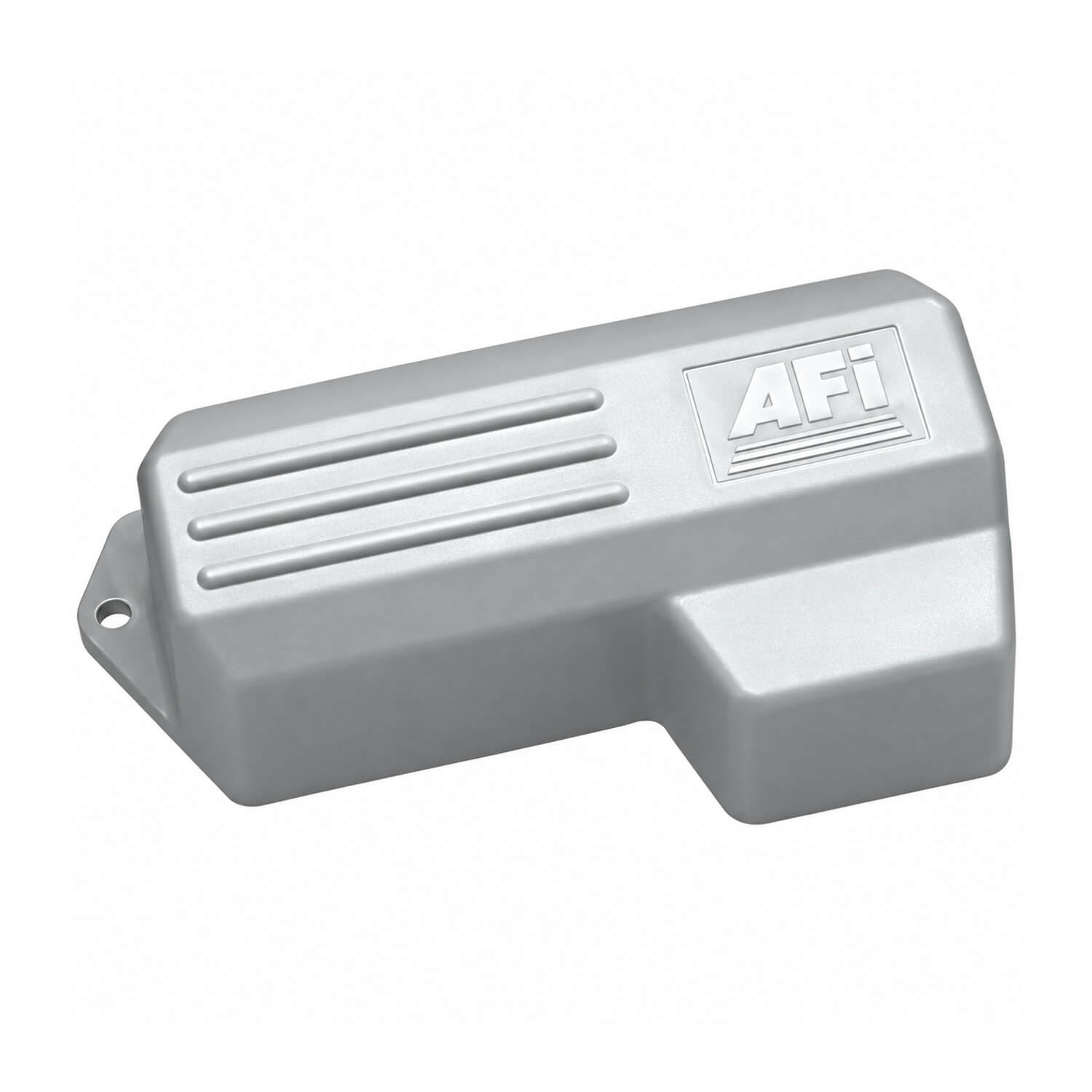

Heavy-duty single-speed motor with sealed UV-resistant thermoplastic cover and brass drive shaft. Coast-to-park operation with adjustable left/right parking, RF-shielded circuitry and adjustable 50, 65, 80 or 110-degree sweep. Includes 5A fuse and holder. Pantographic arms require a sweep of 80 degrees or less.

  • Voltage: 12V
  • Shaft diameter: 16mm
  • Maximum arm/blade combination length: 450mm (18 inch)
  • No-load current: 0.8-1.2A
  • Stall current: 10A
  • Stall torque: 6.2Nm
  • Motor size: 169 L x 84 W x 51mm D plus drive arm
  • CE certified
  • Limited warranty: 3-year limited
  • Shaft length: 40mm plus knurled arm nut

Select this motor by matching the electrical system, mounting arrangement and intended arm and blade sizes. Measure the windscreen surround where the shaft will pass through, and allow room behind the mounting surface for the motor body, wiring and access during servicing. The stated dimensions provide a useful starting point for checking an existing installation before changing motors.

The adjustable sweep and parking arrangement let the wiping path be planned around the usable glass and helm sightline. As general setup guidance, establish the motor park position before attaching the arm, then select a sweep that keeps the complete blade clear of frames and window hardware. A pantographic arrangement also needs its sweep limit checked before operation.

Use the motor instructions to determine wiring, switching and circuit protection requirements. Isolate the supply while fitting components and support cables so the terminals are not carrying cable strain. Once installed, test on wet glass and confirm both the full travel and return to park. Recheck the arm fixing and blade condition during routine maintenance, particularly after any adjustment to arm length or sweep.

The 40mm shaft version suits installations where the measured mounting arrangement calls for the shorter AFI 1000 shaft. Include the knurled arm nut and necessary arm clearance when checking space outside the surround.

The waterproof AFI 1000 housing is useful when considering exposure at the selected motor position.
