Marine 83mm Nylon Well Drain with 25mm Cut-Out for Boat Plumbing - RWB1433 RWB1433

Marine 83mm Nylon Well Drain with 25mm Cut-Out for Boat Plumbing - RWB1433

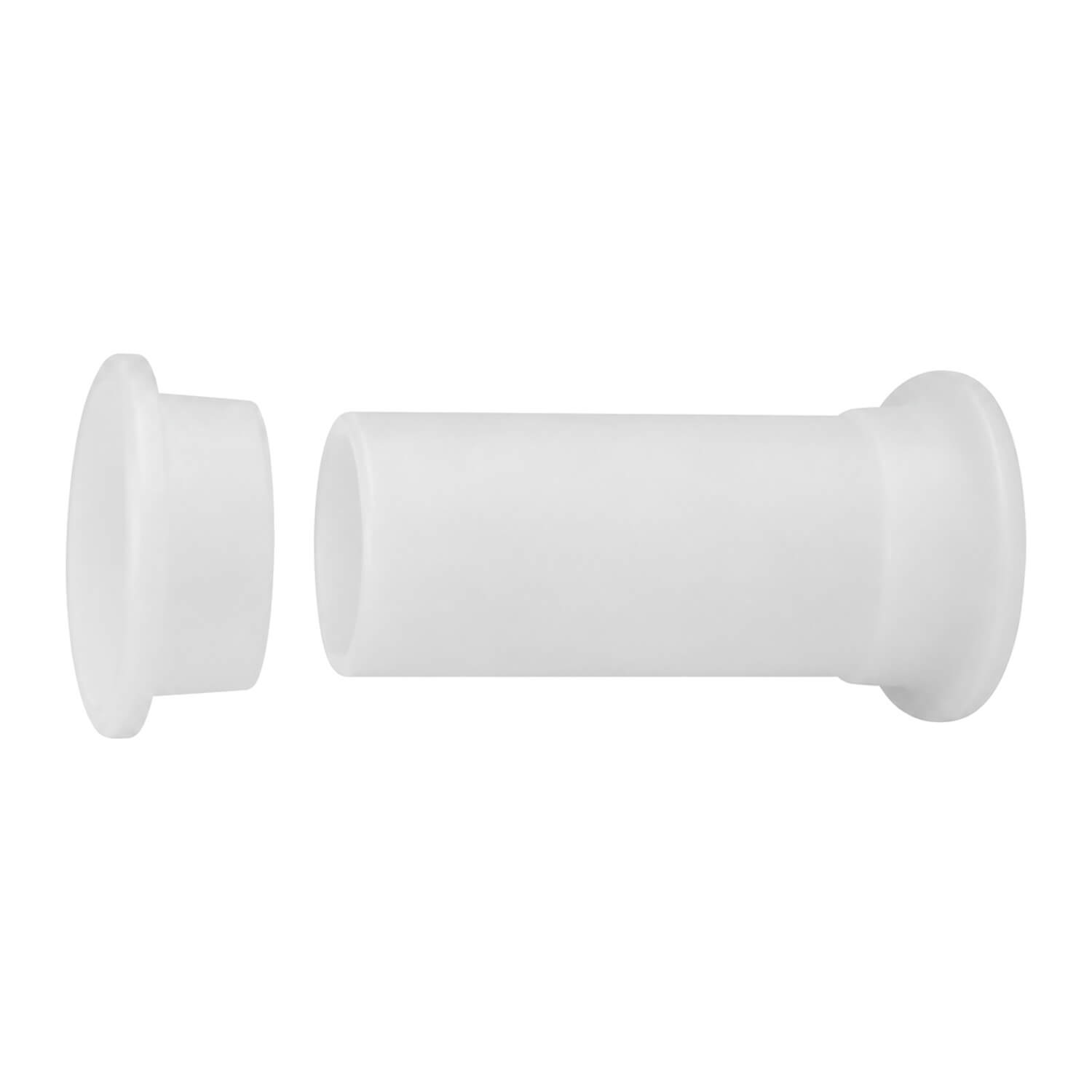

83mm Nylon Well Drain with 25mm Cut-Out. This white nylon well drain has a fine-threaded body and a push-on grip flanged end fitting. It is intended for draining motor or anchor wells and can be cut to the required length. The selected overall length and 25mm cut-out are important when checking how the fitting will span the mounting area. The ability to shorten the drain is useful during fitting, but the required finished length should be established before any cutting begins.

Choosing and using this product

Measure the thickness and shape of the area the drain must pass through, and check that both ends can seat as intended. Confirm the 25mm mounting-hole requirement and allow for the flange arrangement rather than considering only the tube length. Plan the discharge path so the drain can carry water away from the well without an obstruction at either end. If the drain is connected to or affects a hull-related outlet, assess that arrangement with suitable marine guidance. Before cutting, mark the required length carefully and check it against the actual installation. Make a clean cut and remove debris so the finished edge does not interfere with assembly. Fit the flanged end correctly and follow appropriate sealing and installation practice for the boat. After fitting, run water through the well and inspect the drain and surrounding mounting area for leakage or retained water. Keep both openings clear of sand, leaves and fishing debris. Recheck the fitting during normal cleaning and after any impact or work around the well. A drain that has been cut cannot be made longer, so select a starting length that accommodates the measured installation.

Product details

• Total length: 83mm. Cut-out hole: 25mm.
• White nylon fine-thread drain with push-on flanged end; cut to length for motor or anchor wells.
• Product code: RWB1433.
