Marine 20mm Plastic Two-Way Y Shut-Off Valve for Boat Installation - RWB3116 RWB3116

$21.59 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

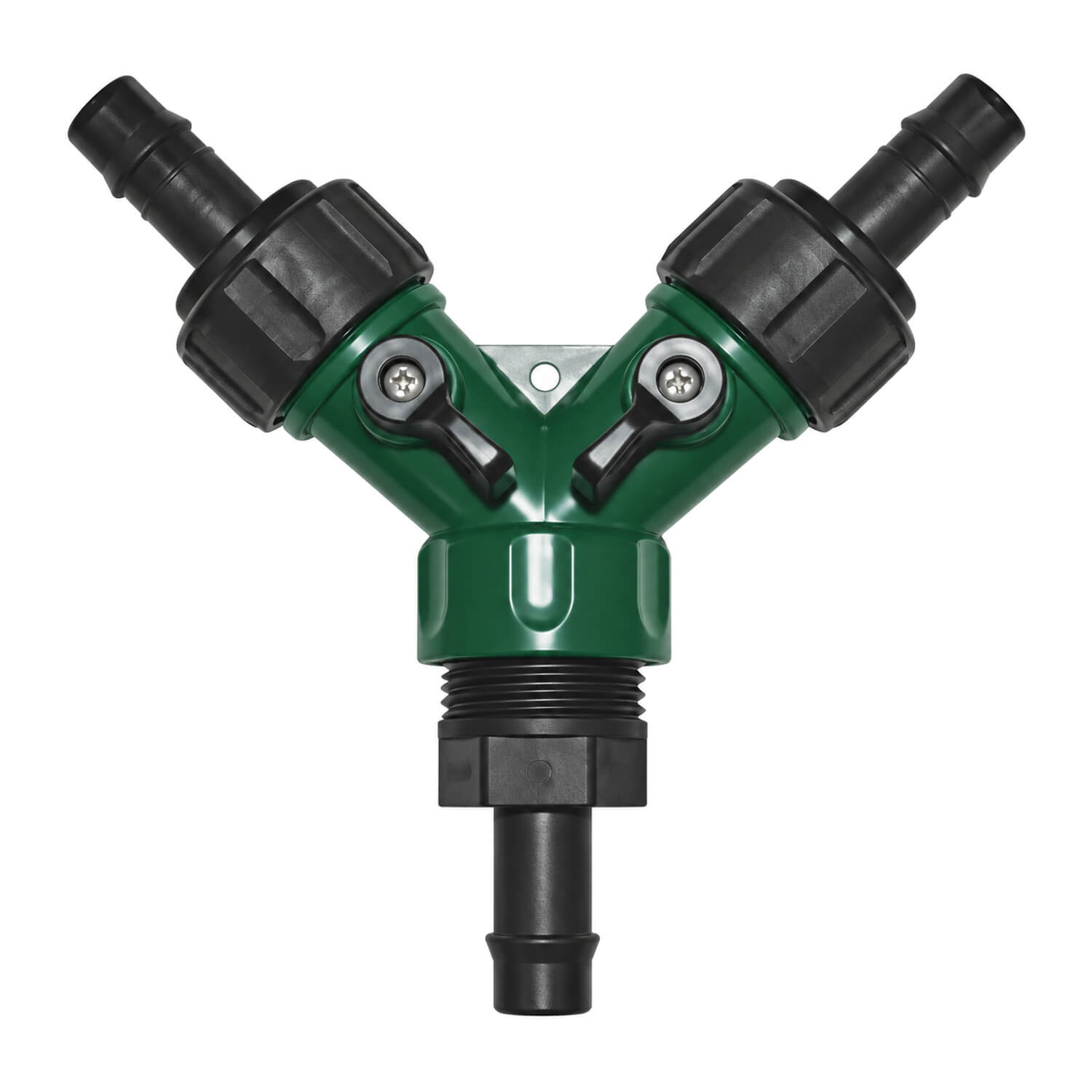

Marine 20mm Plastic Two-Way Y Shut-Off Valve for Boat Installation - RWB3116

20mm Plastic Two-Way Y Shut-Off Valve. This plastic Y shut-off valve provides two independently operated outlets for managing a branched hose arrangement. The outlets can be used for full flow or to divert flow to either line, giving control over the branches from one compact valve body. Barbed hose connections suit the specified internal hose diameter. It is a practical option where a water plumbing layout needs individual control of two outgoing paths, provided the valve's suitability for the particular fluid and operating conditions has been confirmed.

Choosing and using this product

Identify the intended inlet and both outlet routes before installation, and make sure the controls can be reached in the finished layout. Match the hose bore to the barbed connection size and choose clamps for the hose's installed outside diameter. Allow space around each branch so hoses can leave the valve without tight bends or side loading. Support the plumbing rather than letting the valve hang from long or heavy hose runs. Consider how each control position will affect the pump and the connected equipment; do not close an operating pump against a blocked discharge unless its instructions specifically allow that arrangement. After fitting, test each branch separately and then test the intended combined operation. Check the body and every hose joint for leaks while the system is operating. A shut-off Y valve should be selected for its actual connections and intended duty, not simply because its shape resembles an existing fitting. Confirm pressure, temperature and fluid requirements with the equipment supplier where those details are needed. Keep the controls visible and inspect the valve during routine plumbing maintenance.

Product details

  • 20mm (3/4") hose.
  • Two independently operated outlets permit full flow or diversion to either line. Barbed hose connections.
  • Product code: RWB3116.
