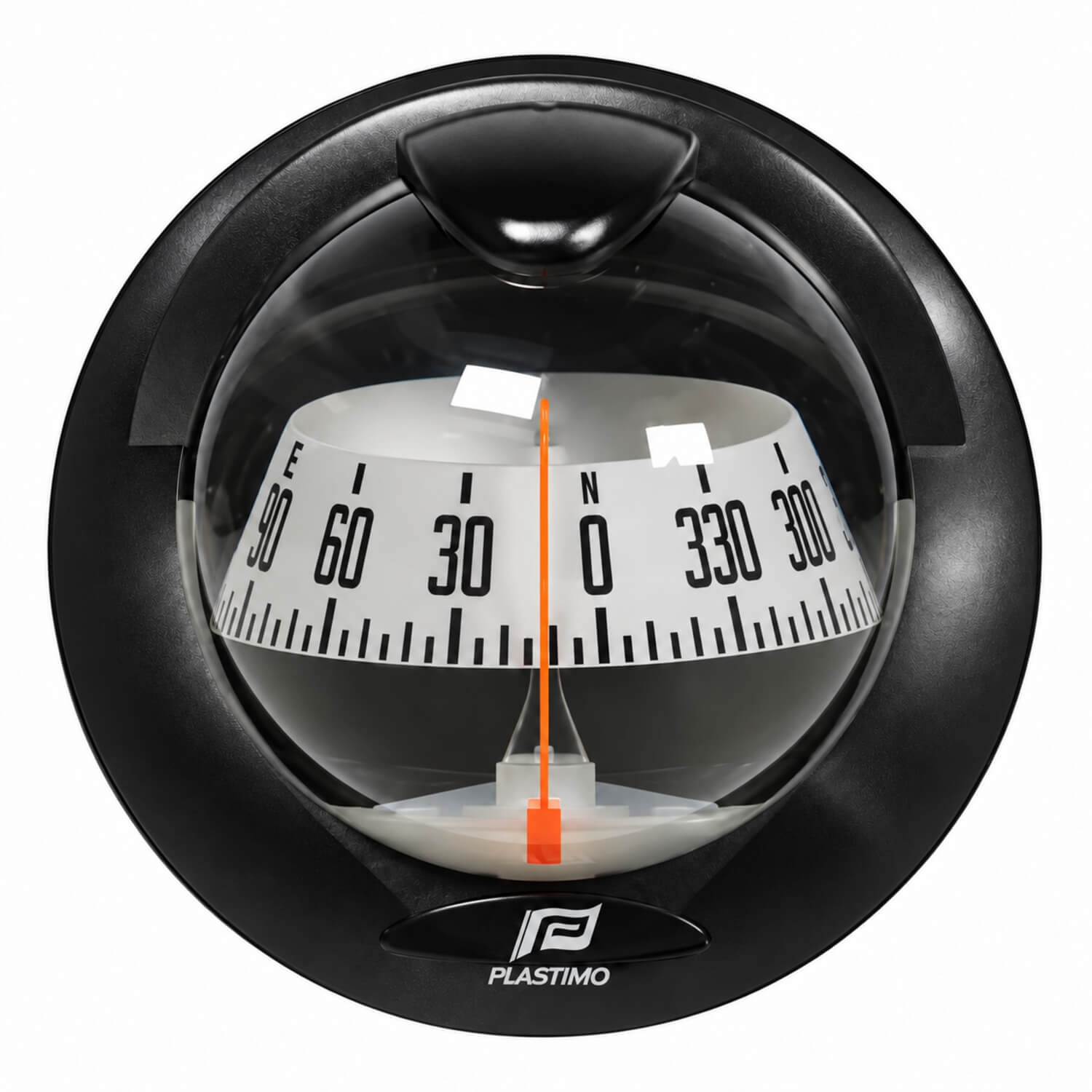

Plastimo Offshore 75 Marine Compass Black/Light Grey Conical Card Dash Mount RWB8013

Plastimo Offshore 75 Marine Compass Black/Light Grey Conical Card Dash Mount

Black Offshore 75 compass for powerboats from 5 to 9 metres, with a light grey conical card and dash mounting. The conical card supports front reading. This Plastimo steering compass combines the specified body and card colours with a defined mounting arrangement for the helm. The model number identifies a particular family rather than a universal replacement size. Choose the exact variant for the way the display will be viewed and the space available, then check its listed lighting, cover and compensation equipment when planning the installation.

Choosing and using this product

Choose the card style around the way you will actually view the compass at the helm. Compare the viewing angle, body colour and mounting arrangement with the existing installation rather than selecting only by the nominal model size. The apparent card diameter describes the display and should not be used as a mounting-hole measurement. Before cutting or drilling, obtain the correct installation template and check the complete footprint, depth and access beneath or behind the mounting surface. Trial the sight line from the normal steering position, keeping nearby fittings and equipment clear of the display. Follow the manufacturer's instructions for positioning away from magnetic interference and for any compensation procedure applicable to this model. Check the stated lighting voltage against the boat's circuit, and arrange a protected connection without placing strain on the leads. Where a cover or telescoping hood is supplied, leave space to use it and retain access for cleaning and inspection. Separately listed brackets, binnacles and spare parts should be checked against the exact compass model before purchase. Recheck the compass installation after changes to nearby electrical equipment or metal fittings.

Product details

• Product code: RWB8013.
• Apparent card diameter: 70mm
• Card graduations: 5 degrees
• 12/24V LED lighting included
• UV-treated parts
• 5-year limited warranty
• Dash mount accommodates inclinations from vertical to horizontal.
• Dash model is excluded from the range global-balance specification; specific zone is not established by this catalogue.
• Vibration absorber system helps keep the card stable.
• Watertight one-piece moulded bowl and flange
• Optional compensator.
• Dash-mount drawing: flange diameter 100 mm; rear projection 41 mm.
• Rear body is marked 66 mm across; drawing also shows a 20-degree inclination example and a 90-degree position.
• Body and fixing dimensions describe the catalogue drawing, not a cut-out template; confirm the current Plastimo installation template before cutting.
