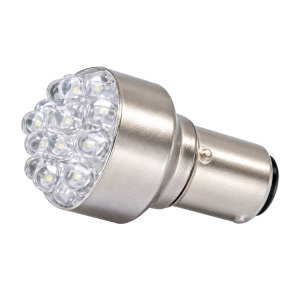

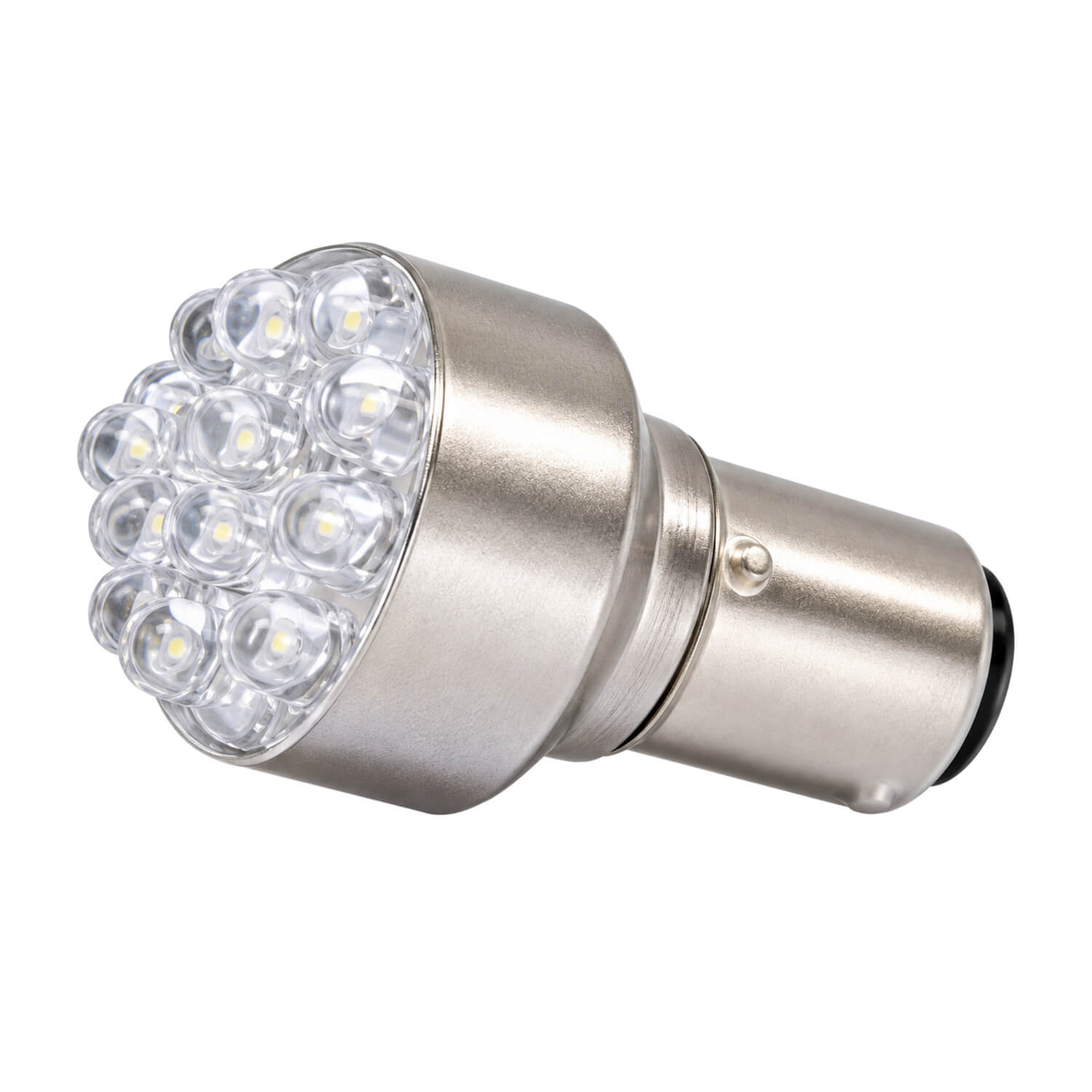

Marine White LED Bayonet Replacement Bulb, 12V Two Staggered Pins, 15mm RWB1219

$16.02 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

Marine White LED Bayonet Replacement Bulb, 12V Two Staggered Pins, 15mm

This LED bayonet bulb is intended as a replacement in a compatible conventional interior light fitting. It offers a way to retain the existing housing while changing the light source, provided the socket, available space and electrical supply match the bulb. The position of the retaining pins is an important selection detail: a parallel-pin and a staggered-pin bayonet are not interchangeable simply because their base diameters look similar. Compare the existing bulb directly with the specification before ordering a replacement for the boat’s cabin lighting.

Choosing and using this product

Isolate the supply and allow the old bulb to cool before removing it. Check the fitting’s rated voltage, the pin arrangement and the available room under its lens or shade. The complete bulb length matters as well as the base diameter, particularly in compact fittings where the replacement may sit close to a diffuser. Inspect the socket for corrosion, looseness or heat damage before fitting the new bulb; changing the bulb alone will not correct a damaged connection. Do not force a mismatched bayonet into place or alter the pins to make it fit. The light is described for interior fittings, so do not assume that it is an approved substitute for a navigation-light bulb or that it preserves another fitting’s certification. Likewise, compatibility with an existing dimmer is not established by the LED description. Refit the lens securely, restore power and check the light distribution. Keep the original fitting’s seals and enclosure in good order if they provide protection for the installation.

Product details

  • Base style: two staggered pins on a 15mm-diameter bayonet base.
  • Electrical supply: 12V only.
  • Twelve white LEDs; catalogue output: 32 lumens.
  • Overall bulb length: 42mm.
  • Intended for compatible conventional-bulb interior light fittings.
  • Catalogue describes reduced power use compared with conventional incandescent bulbs; no exact wattage is specified.
