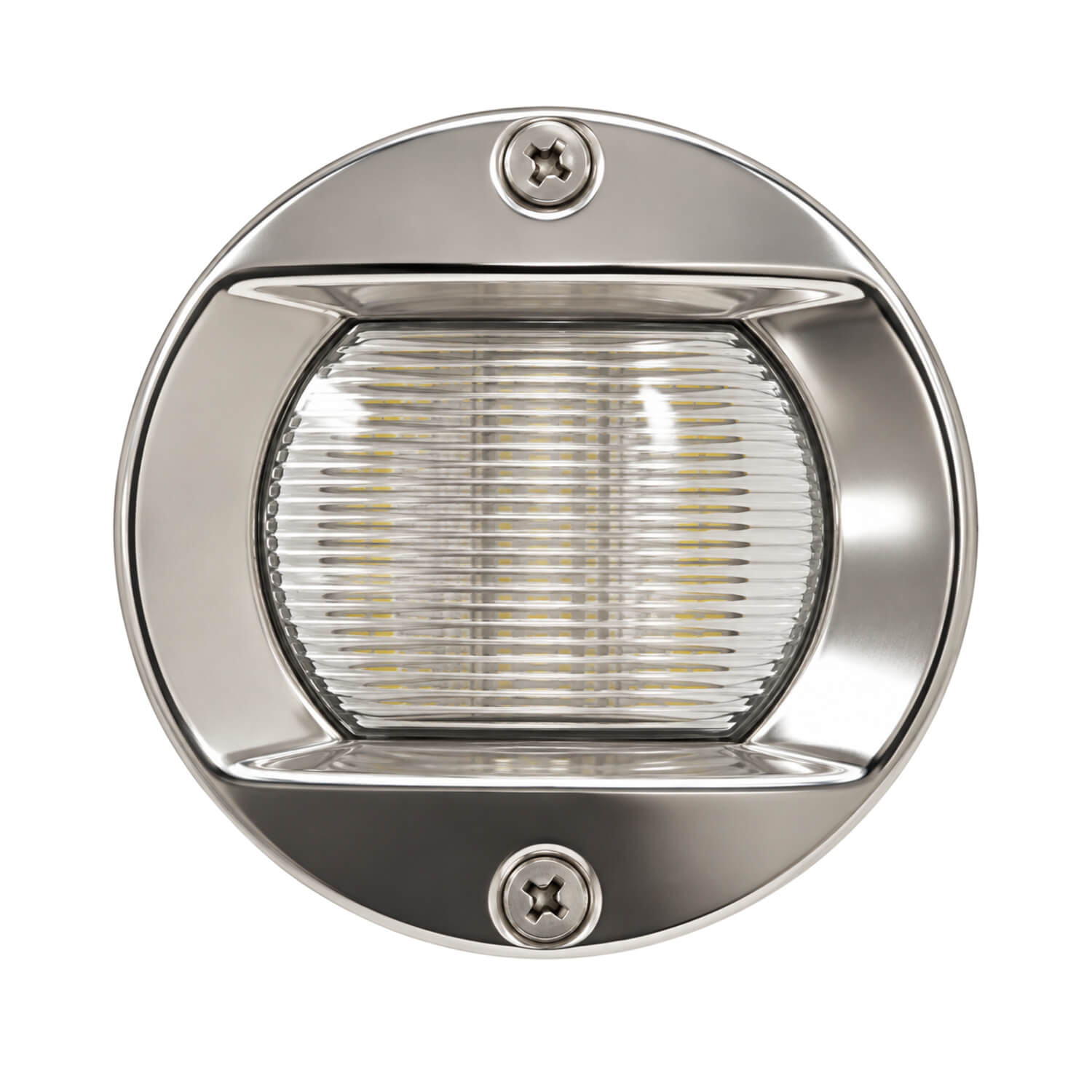

Round Marine LED Cockpit and Transom Light, 12V 90 Lumens, Stainless, RWB5338 RWB5338

$28.07 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

Round Marine LED Cockpit and Transom Light, 12V 90 Lumens, Stainless, RWB5338

This cockpit light provides a compact fitting for local illumination around the boat rather than a large overhead floodlight. Its mounting format and housing finish should be considered alongside the surface where it will be installed, especially when matching an existing fit-out. The light can help define an onboard working or access area without requiring the same footprint as a conventional cabin dome. Choose it by the complete fitting dimensions, light output and supply requirements, with a separate switching arrangement included in the installation plan.

Choosing and using this product

Check the intended mounting location from both standing and seated positions. The useful result comes from lighting the working surface or access route, so avoid a position that places the bright lens directly in the helmsman’s line of sight. For recessed fittings, inspect the cavity behind the surface for wiring, structure and other services before marking an opening. Overall dimensions are not a cut-out template; confirm the opening with the actual fitting and its instructions. For surface-mounted versions, check that the body will not be hit by doors, cushions or stored equipment. Route the wiring so the connection is supported and protected from spray, and take care not to trap wires under the mounting gasket or fasteners. Select a suitable separate switch and protected circuit for the boat’s supply. Where the source specifies only a sealed construction, do not infer a higher ingress rating or underwater suitability. Test the light after installation and review the illumination from the normal helm position.

Product details

  • Flush-mount round cockpit or transom light.
  • 304-grade stainless steel construction with long-life LEDs.
  • Electrical supply: 12V only; operating power: 1.5W.
  • Light output: 90 lumens.
  • Dimensions: 75mm diameter x 38mm deep.
  • Rubber mounting gasket and stainless steel screws supplied.
  • Fully wired for connection; switch not included.
