Lalizas FOS 12 LED Boat Bi-Colour Navigation Light - Black Horizontal Mount RWB8641

$107.75 each
Brand: LALIZAS Marine Safety Equipment & Accessories

+
–
The add to cart button will appear once you select the values above

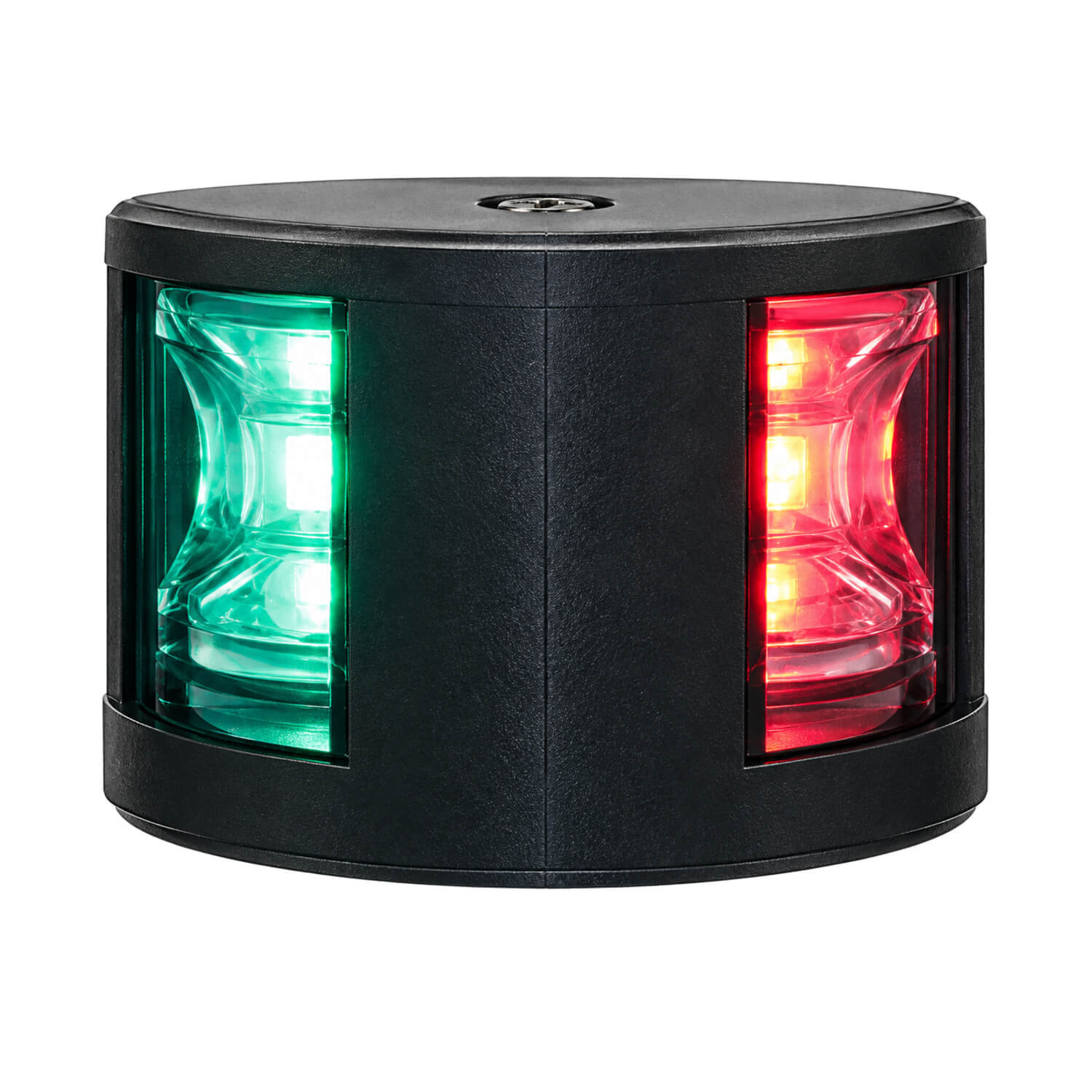

Lalizas FOS 12 LED Boat Bi-Colour Navigation Light - Black Horizontal Mount

The Lalizas FOS 12 bi-colour light offers a compact LED option for a marine navigation-light installation. Combining the port and starboard functions in one fitting can simplify the physical layout where a suitable central mounting position is available. It is worth checking this arrangement against the existing wiring and available space before choosing it in place of separate sidelights. The housing finish refers to the body, rather than changing the navigation function. Its small footprint makes measuring the proposed mounting location straightforward. The choice between finishes and mounting styles lets you match the fitting to the boat’s layout without confusing a cosmetic choice with the light’s specific navigation role.

Choosing and using this product

Use a suitable level mounting area on the deck or cabin top, and compare the footprint with the available space. Check clearance around covers, rails and other equipment before marking the position. Route the cable where it can be supported and protected, with access to make and inspect the connection. Align the combined light carefully with the vessel and check that each sector faces the correct direction after fitting. Check the supply before connecting the unit, especially when equipment from different voltage systems is fitted aboard. Plan enough cable access to inspect the joins later without disturbing the surrounding fittings. Isolate the lighting circuit before working on it, use connections appropriate for the marine environment, and check operation before departure. Match the complete installation to the vessel and current local requirements; the product rating alone does not establish that a particular mounting arrangement is suitable.

Product details

  • Product code: RWB8641.
  • Body finish: Black; mounting: horizontal.
  • Electrical supply: 12V DC only.
  • Catalogue power rating: 1W.
  • Catalogue dimensions: 40mm high x 69mm long x 62mm wide.
  • Light function: combined port and starboard in one unit.
  • Catalogue-listed vessel length: up to 12 metres.
  • Catalogue-listed visibility: 1 nautical mile.
