Lalizas Classic LED 20 Marine 225° Masthead Light - Black Vertical Mount RWB8696

$102.99 each
Brand: LALIZAS Marine Safety Equipment & Accessories

+
–
The add to cart button will appear once you select the values above

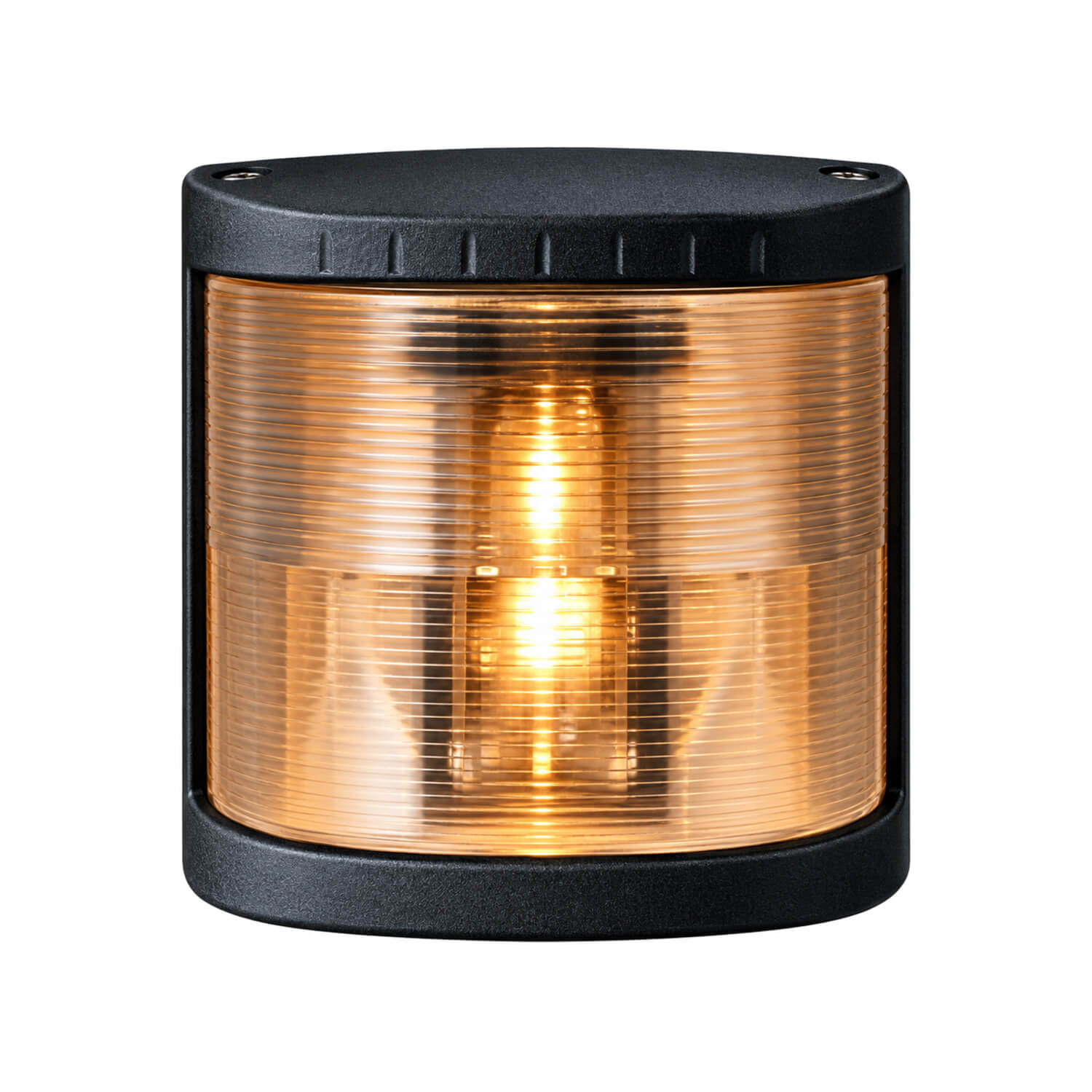

Lalizas Classic LED 20 Marine 225° Masthead Light - Black Vertical Mount

The Lalizas Classic LED 20 225° masthead light combines the familiar Classic-series format with LED lighting. The masthead function provides a defined forward-facing light sector as part of the vessel’s navigation-light arrangement. The name describes its signalling role; selecting it also requires attention to the orientation and position of the fitting. Match the mounting surface and available wiring route before committing to a replacement or new installation. This range uses the same size and screw-hole pattern as the corresponding conventional-bulb Classic series, which is useful when assessing a refit. The replaceable light source also gives you a defined spare to identify during maintenance rather than choosing a generic bulb by appearance.

Choosing and using this product

Offer the fitting up to the intended upright surface before drilling. Check that the body can sit squarely, that the cable can pass into a protected route, and that nearby trim will not interfere with the lens. Do not assume that an old screw pattern will suit a different light family. Check the forward-facing orientation and the relationship to the other navigation lights before securing the fitting. When replacing an earlier Classic light, inspect the old mounting surface and wiring as well as comparing the screw positions. Keep the correct series and spare-bulb reference with the boat’s maintenance information. Isolate the lighting circuit before working on it, use connections appropriate for the marine environment, and check operation before departure. Match the complete installation to the vessel and current local requirements; the product rating alone does not establish that a particular mounting arrangement is suitable.

Product details

  • Product code: RWB8696.
  • Body finish: Black; mounting: vertical.
  • Electrical supply: 12V or 24V DC.
  • Catalogue power rating: 4W BAY15D LED bulb.
  • Light function: 225-degree masthead sector.
  • Catalogue-listed vessel length: up to 20 metres.
  • Construction: UV-stabilised ABS body, shatter-proof acrylic lens, stainless steel contacts and nitrile rubber seal.
  • Catalogue claims up to 80% lower power use than conventional-bulb navigation lights.
  • LED rated for up to 50,000 hours; replacement/retrofit bulb reference SP862.
