Lalizas Classic LED 12 Boat Port Navigation Light - Black Vertical Mount RWB8687

$38.54 each
Brand: LALIZAS Marine Safety Equipment & Accessories

+
–
The add to cart button will appear once you select the values above

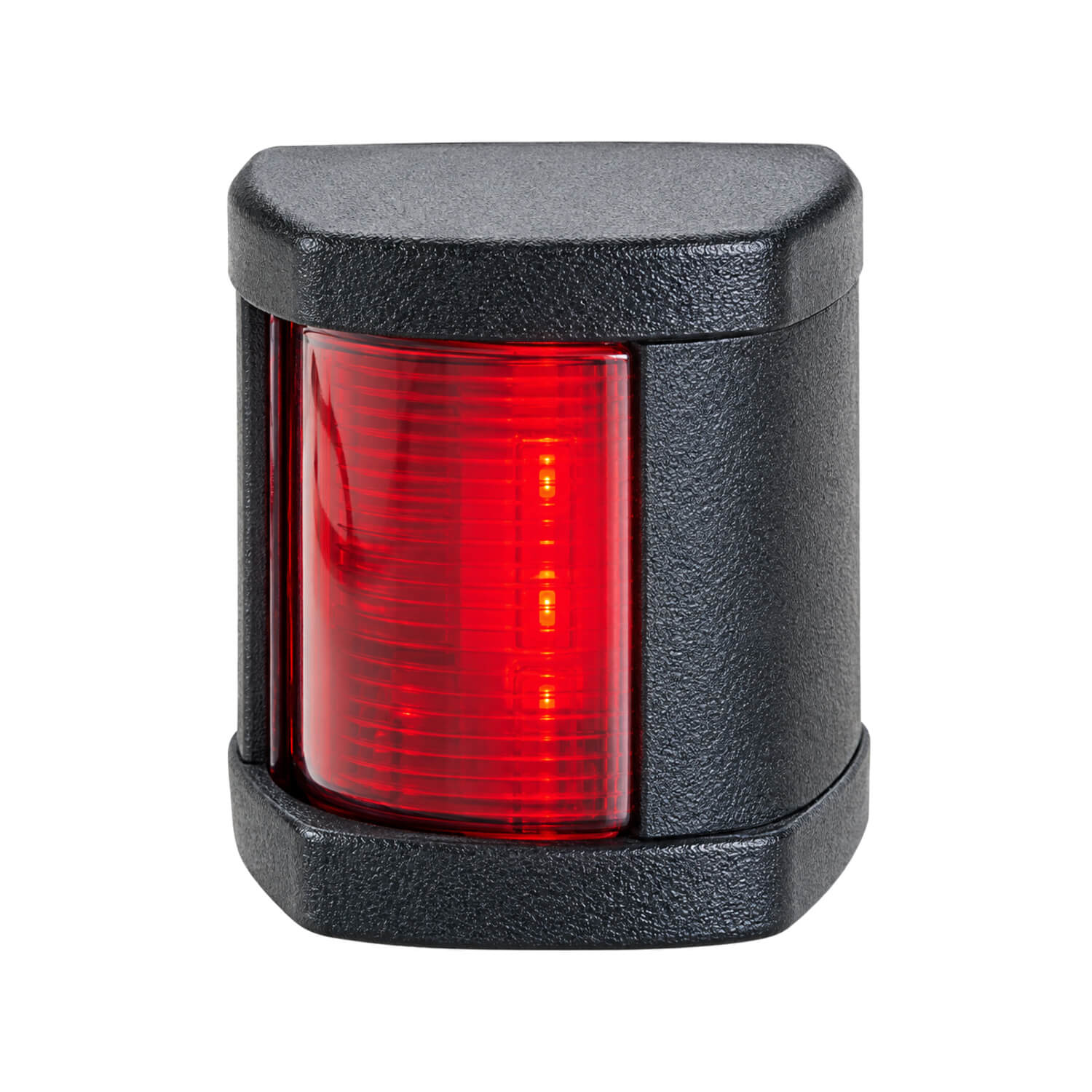

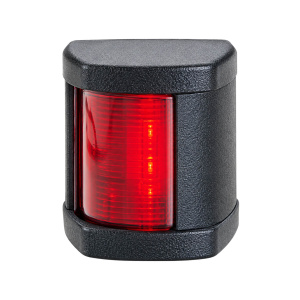

Lalizas Classic LED 12 Boat Port Navigation Light - Black Vertical Mount

The Lalizas Classic LED 12 port light combines the familiar Classic-series format with LED lighting. This is the port member of the range, selected for the corresponding side of the vessel. It allows a damaged or ageing fitting to be replaced individually, and can also form part of a new matched installation. Check the starboard fitting separately when planning both sides of the boat. This range uses the same size and screw-hole pattern as the corresponding conventional-bulb Classic series, which is useful when assessing a refit. The replaceable light source also gives you a defined spare to identify during maintenance rather than choosing a generic bulb by appearance.

Choosing and using this product

Offer the fitting up to the intended upright surface before drilling. Check that the body can sit squarely, that the cable can pass into a protected route, and that nearby trim will not interfere with the lens. Do not assume that an old screw pattern will suit a different light family. Confirm that the replacement is the port version before ordering; a similar housing does not make the two sidelights interchangeable. When replacing an earlier Classic light, inspect the old mounting surface and wiring as well as comparing the screw positions. Keep the correct series and spare-bulb reference with the boat’s maintenance information. Isolate the lighting circuit before working on it, use connections appropriate for the marine environment, and check operation before departure. Match the complete installation to the vessel and current local requirements; the product rating alone does not establish that a particular mounting arrangement is suitable.

Product details

  • Product code: RWB8687.
  • Body finish: Black; mounting: vertical.
  • Electrical supply: 12V or 24V DC.
  • Catalogue dimensions: 70mm high x 63mm wide x 53mm deep.
  • Supply quantity: one individual port light.
  • Catalogue-listed vessel length: up to 12 metres.
  • Construction: UV-stabilised ABS body, shatter-proof acrylic lens, stainless steel contacts and nitrile rubber seal.
  • Replacement LED: SP861 for this light.
