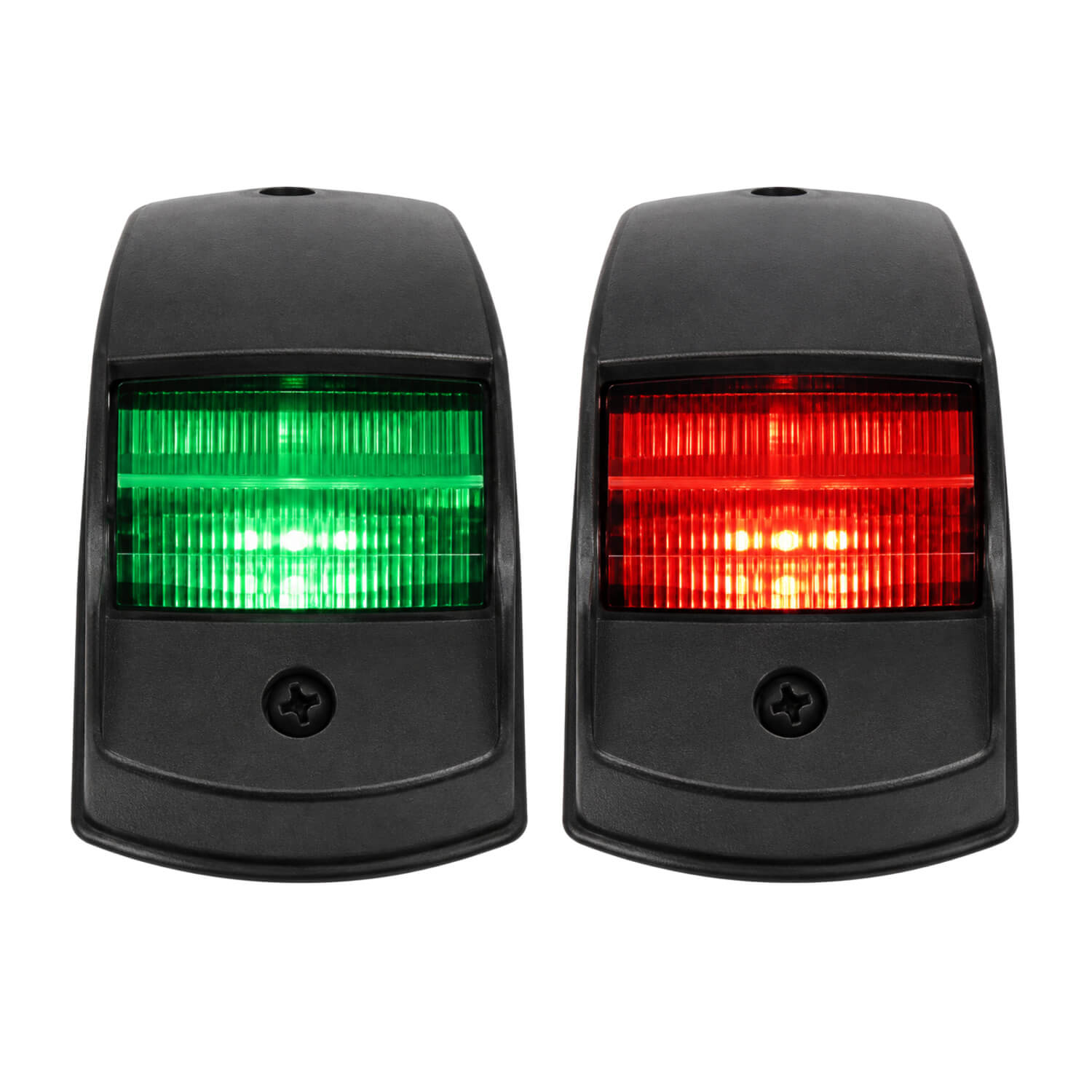

Marine 12V 5W Port/Starboard Navigation Lights Black Side Mount Pair RWB1663

This black side-mount pair provides separate port and starboard navigation lights for a 12V boat-lighting circuit. The conventional design uses a 5W festoon bulb, so the specified bulb remains part of the fitting’s service requirements. The side mounting arrangement is an important selection detail when comparing this product with another navigation light. A pair gives separate units for the two sides of the boat, so both their positions and orientation should be planned together. Choose the cover finish to suit the installation, while using the actual dimensions and mounting pattern to confirm physical fit.

Choosing and using this product

Check the intended positions against the vessel’s lighting arrangement before drilling or connecting the lamps. The units need to be mounted in their designed orientation, with the coloured sectors facing correctly and with equipment, covers and rails clear of the light paths. The supplied source gives no visibility-distance or vessel-length approval for this exact family. Confirm the required suitability with the supplier or installer rather than relying on ratings from a different LED model. Compare the existing footprint and cable access if replacing an older light; a similar housing size is not proof that the fastening holes are identical. Fit the supplied mounting or sealing component as instructed and make protected electrical connections suitable for the location. Test both lamps together after wiring, checking that port and starboard are correctly identified. Keep the lenses clean and inspect the fittings after changes to nearby equipment. During routine checks, look for damaged covers, loose fasteners or wiring faults that could affect operation.

Product details

  • Product code: RWB1663; side-mount port/starboard navigation pair.
  • Finish: Black; supply: 12V only.
  • Dimensions per fitting: 135 × 60 × 47 mm (length × width × height).
  • Supply quantity: pair, one port and one starboard.
  • Light source: 12V, 5W festoon bulb.
  • Sealing gasket around the base of the lens.
