Reinforced Grey PVC Outboard Fuel Hose | 10mm x 15m | Boating Supplies RWB4662

$93.28 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

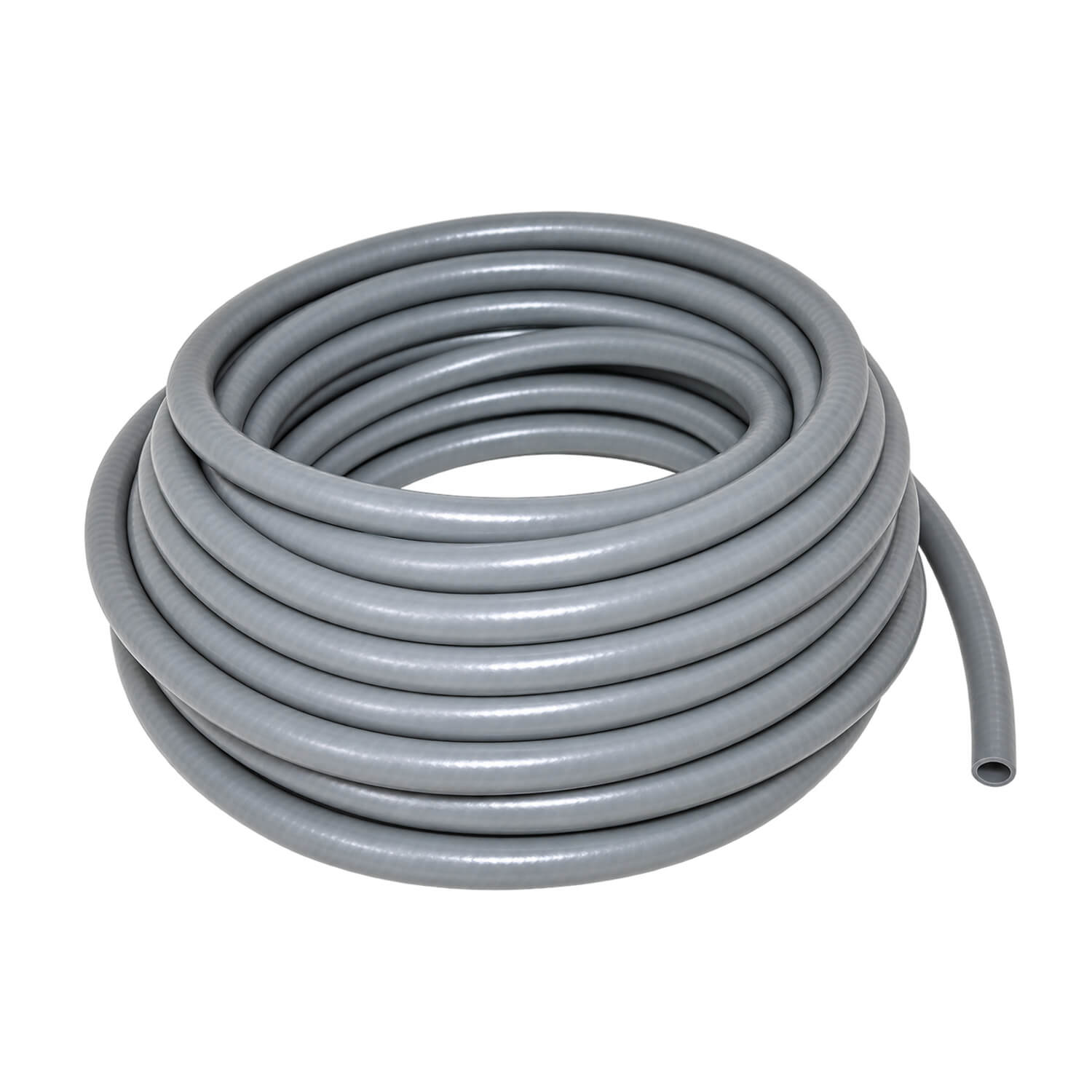

Reinforced Grey PVC Outboard Fuel Hose | 10mm x 15m | Boating Supplies

Reinforced Grey PVC Outboard Fuel Hose - 10mm x 15m (RWB4662) is a replacement or installation option for the matching marine system. Fuel-resistant hose for portable or above-floor outboard tanks. Not for permanent below-deck fuel lines or ethanol-containing fuels.

Inside diameter: 10mm. Reel length: 15m.

Choosing and using this product

Choose the hose by its inside diameter, fuel compatibility and permitted installation location. Above-deck hose should not be selected for a permanent below-deck run simply because the diameter matches. Check the requirements of the engine, tank, primer bulb and connectors as a complete fuel system. The listed reel length is useful when planning several runs, but each finished line still needs correctly matched end fittings and suitable support.

Measure the intended route with the tank secured and the engine able to move normally. Allow enough length for steering and service access without leaving loops where they can catch feet or controls. Keep the hose away from sharp edges, hot surfaces and crushing points. Check the existing fittings by hose inside diameter, rather than using the hose outside measurement to judge whether a barb is suitable.

Cut and assemble the hose using methods appropriate to fuel-line work, keeping debris out of the bore. Follow the installation requirements for clamps, bend radius and support. Do not use the hose to hold a portable tank in position. Where the route passes close to equipment or structure, check for rubbing through the engine’s movement range before returning the boat to service.

Inspect the finished connections during priming and before the engine is started, with ignition sources removed and any spilled fuel safely dealt with. Recheck the hose during routine maintenance for abrasion, cracking, hardening or damage at the fittings. Keep unused hose clean and protected in storage. If the fuel type or tank position changes, review the hose suitability again rather than assuming the original choice remains appropriate.

Product details

  • Inside diameter: 10mm
  • Reel length: 15m
  • Product code: RWB4662
