Heavy Duty Marine Rod Holder with Cast 316 Stainless Head and Black Cap RWB2195

$51.90 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

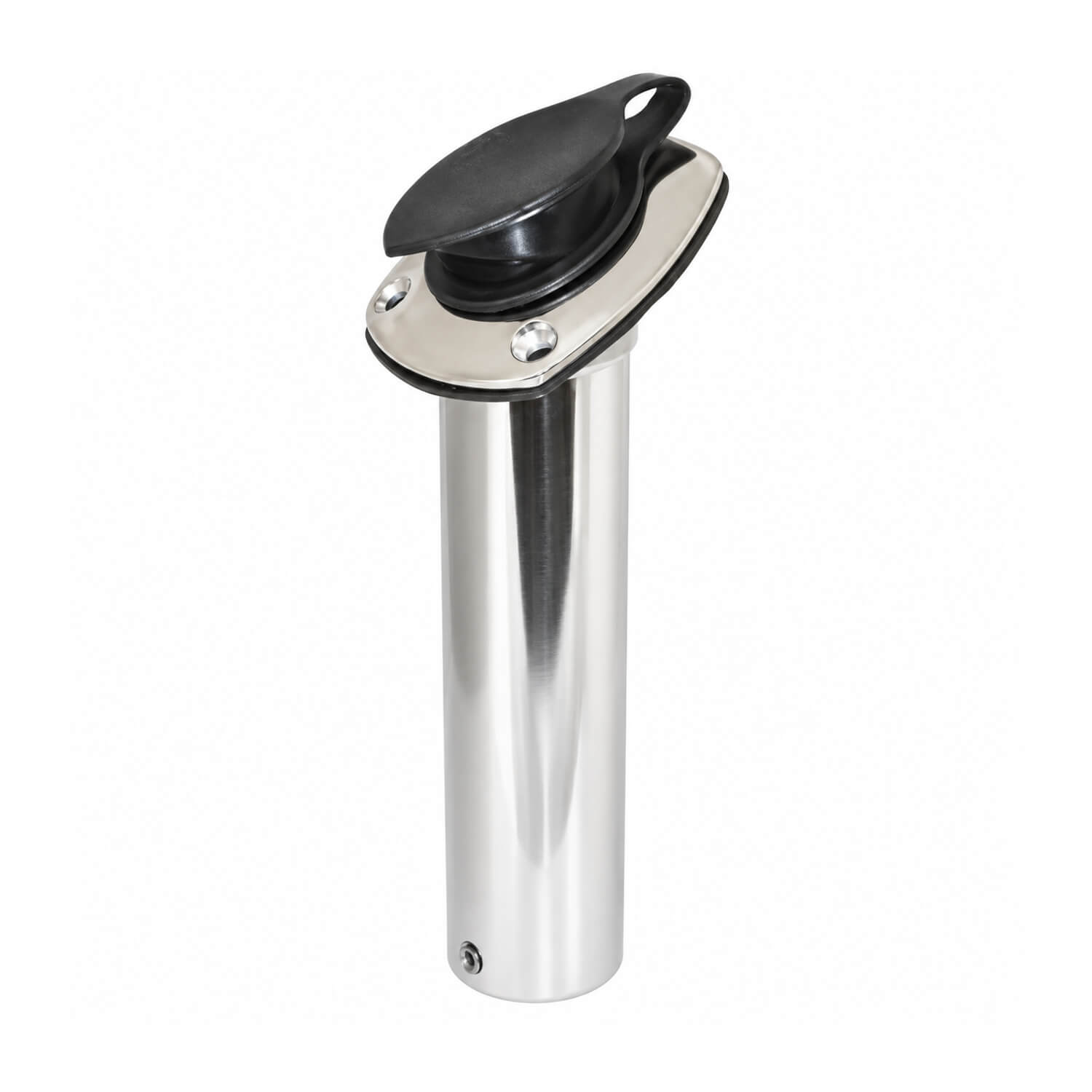

Heavy Duty Marine Rod Holder with Cast 316 Stainless Head and Black Cap

The RWB2195 is a heavy-duty flush-mount rod holder with a cast 316-grade stainless-steel head. A solid shaft collar is welded all the way around the stainless shaft. The holder includes a folding black PVC sealing cap, full-length rubber liner, rubber mounting gasket and solid stainless-steel gimbal pin. Its 60mm cut-out requirement is an important difference when comparing replacement holders.

Choosing and using this product

Before cutting the gunwale or deck, check the full space below the proposed position. An angled shaft needs clearance along its complete length, not just immediately beneath the head. Check for wiring, hoses, flotation material and structural members, and confirm that the rod can be removed without striking a canopy or rail. Trial-position the actual holder and rod to establish a useful direction.

Use the published head and cut-out measurements to assess the available area, then confirm the final hole shape and fastening pattern against the fitting itself. An existing hole that is close in size is not automatically a suitable replacement location. Select fasteners, backing and any bedding method appropriate to the boat material, taking care not to distort the head when tightening.

Check the rod butt diameter and its gimbal arrangement before use. The shaft bore, opening in the boat and head footprint are different measurements and should not be interchanged. Make sure the handle can seat correctly and be lifted out without catching. Rinse away salt and bait residue after use, inspect the shaft and attachment points regularly, and keep protective liners or caps clean and free of damage.

Product details

  • Product code: RWB2195.
  • Heavy cast 316-grade stainless head with continuously welded shaft collar.
  • Head: 110 × 80mm; length: 210mm.
  • Shaft inside diameter: 40mm; cut-out hole: 60mm.
  • Shaft angle: 30 degrees.
  • Fastening holes: three 6mm countersunk holes.
  • Black PVC cap, full-length rubber liner, rubber mounting gasket and stainless gimbal pin.
  • Supplied individually.
