Standard 304 Stainless Steel Marine Flush Rod Holder, 210mm Angled Shaft RWB512

$23.97 each
Brand: RHS Boating & Marine – Boat Parts, Marine Accessories & Boating Supplies

+
–
The add to cart button will appear once you select the values above

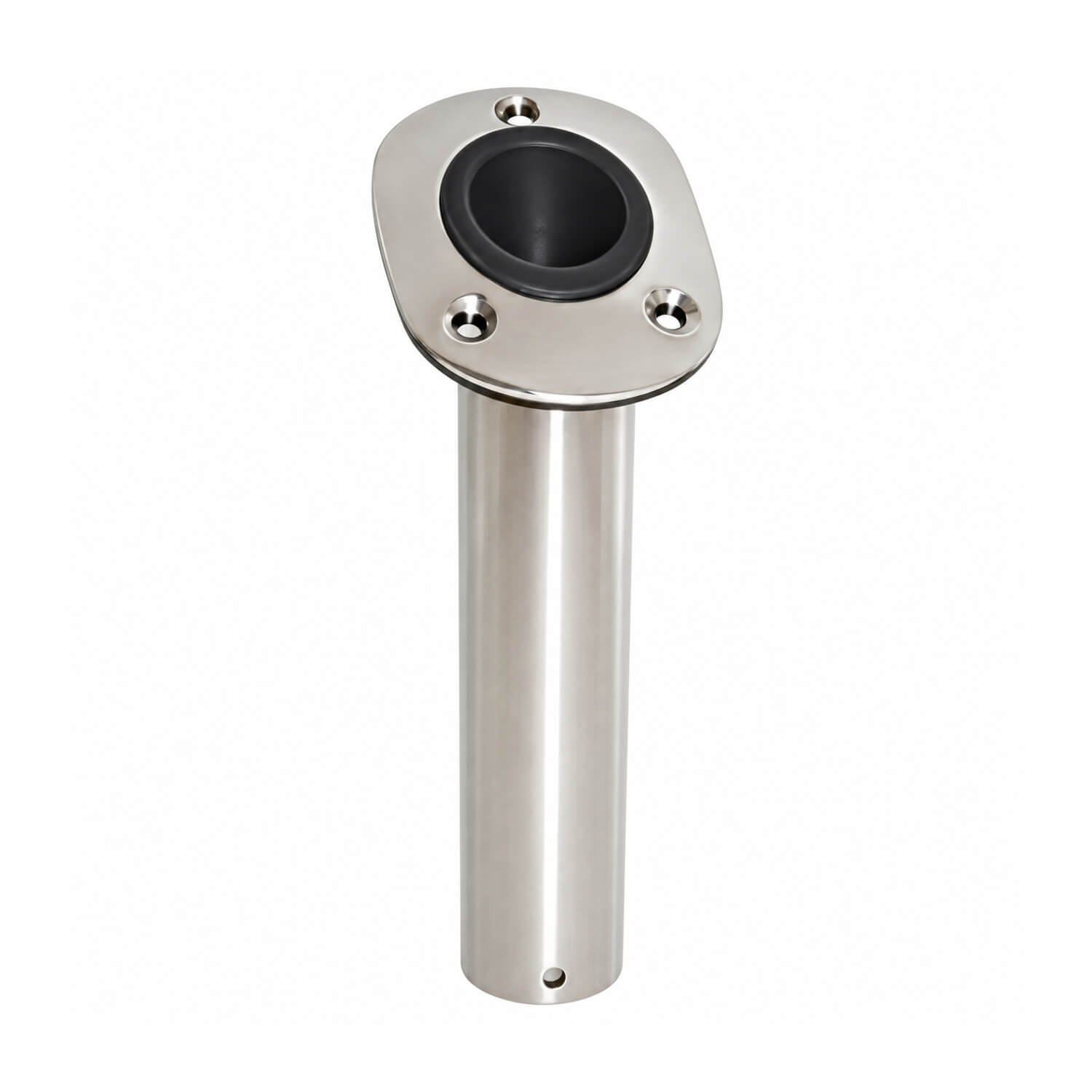

Standard 304 Stainless Steel Marine Flush Rod Holder, 210mm Angled Shaft

The RWB512 is a flush-mount rod holder made from stamped, polished 304-grade stainless steel. Its head is spot-welded to the shaft, which sits at a 30-degree angle. A PVC shaft insert, black rubber mounting gasket and solid stainless-steel gimbal pin are supplied, giving a clearly specified option for a new installation or a carefully matched replacement.

Choosing and using this product

Before cutting the gunwale or deck, check the full space below the proposed position. An angled shaft needs clearance along its complete length, not just immediately beneath the head. Check for wiring, hoses, flotation material and structural members, and confirm that the rod can be removed without striking a canopy or rail. Trial-position the actual holder and rod to establish a useful direction.

Use the published head and cut-out measurements to assess the available area, then confirm the final hole shape and fastening pattern against the fitting itself. An existing hole that is close in size is not automatically a suitable replacement location. Select fasteners, backing and any bedding method appropriate to the boat material, taking care not to distort the head when tightening.

Check the rod butt diameter and its gimbal arrangement before use. The shaft bore, opening in the boat and head footprint are different measurements and should not be interchanged. Make sure the handle can seat correctly and be lifted out without catching. Rinse away salt and bait residue after use, inspect the shaft and attachment points regularly, and keep protective liners or caps clean and free of damage.

Product details

  • Product code: RWB512.
  • Material: stamped and polished 304-grade stainless steel.
  • Head: 120 × 95mm; overall length: 210mm.
  • Shaft inside diameter: 40mm; cut-out hole: 50mm.
  • Shaft angle: 30 degrees.
  • Fastening holes: three 8mm countersunk holes.
  • PVC insert, black rubber mounting gasket and stainless gimbal pin.
  • Supplied individually; replacement insert listed separately as SP125.
